Pantera 4502 (30/15) Amazone Pantera 4502 (30/15) Specifications & Technical Data (2013—2017)

Weight: 9.871t – Pump type: Altek P 260 – Linkage type: Super L-TG – Standard tyres: 380/90 R 46 – No. of partial widths: 9 – Working width: 30m

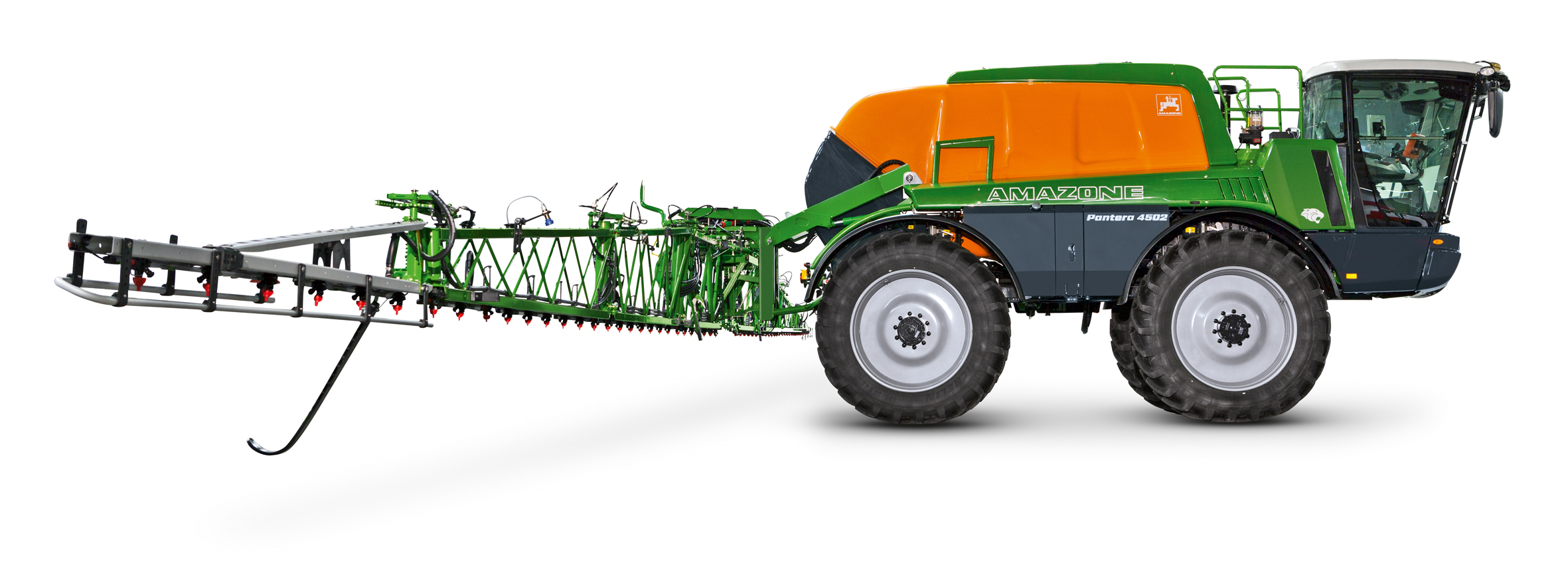

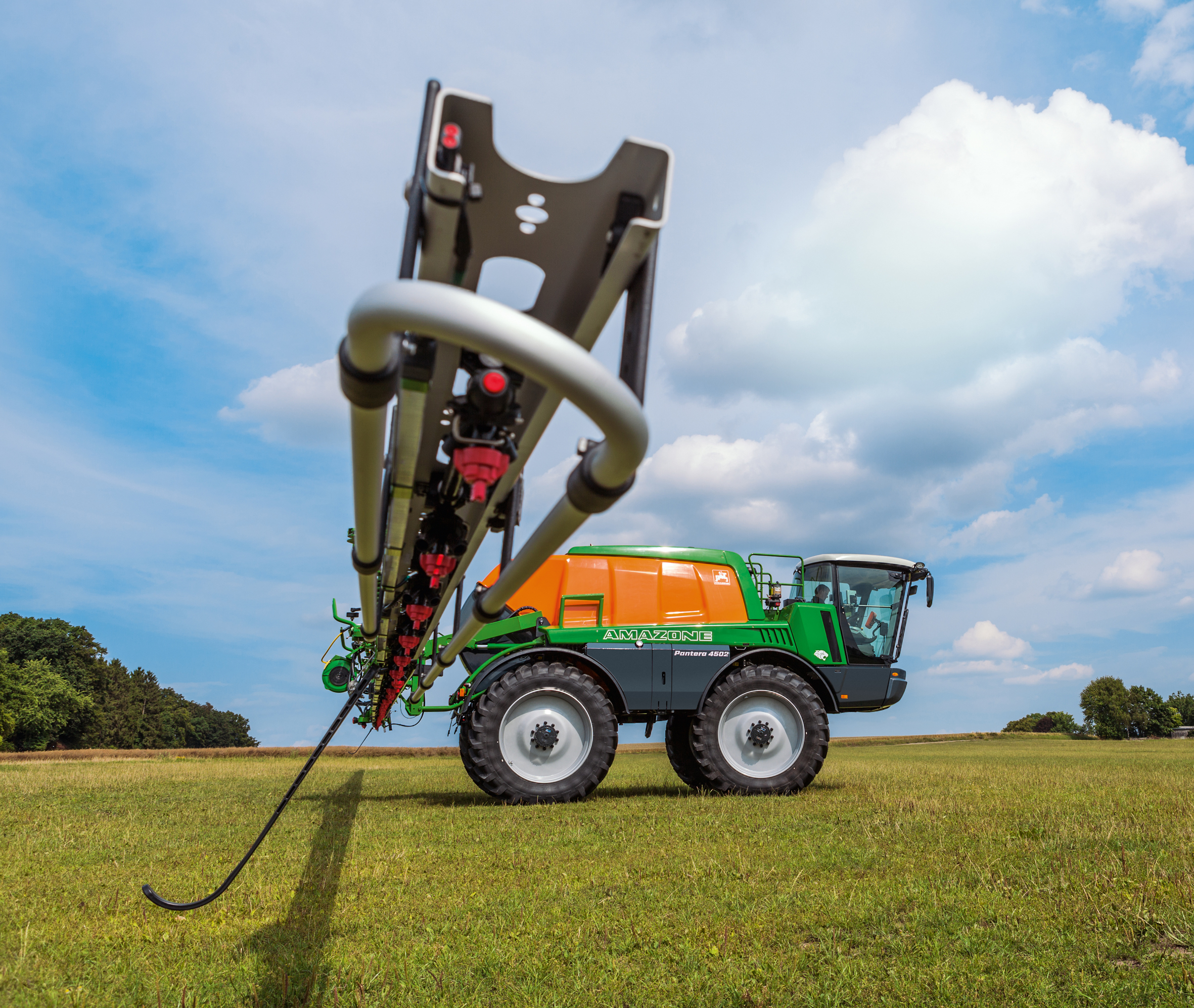

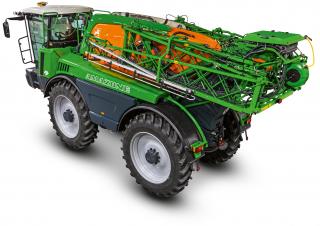

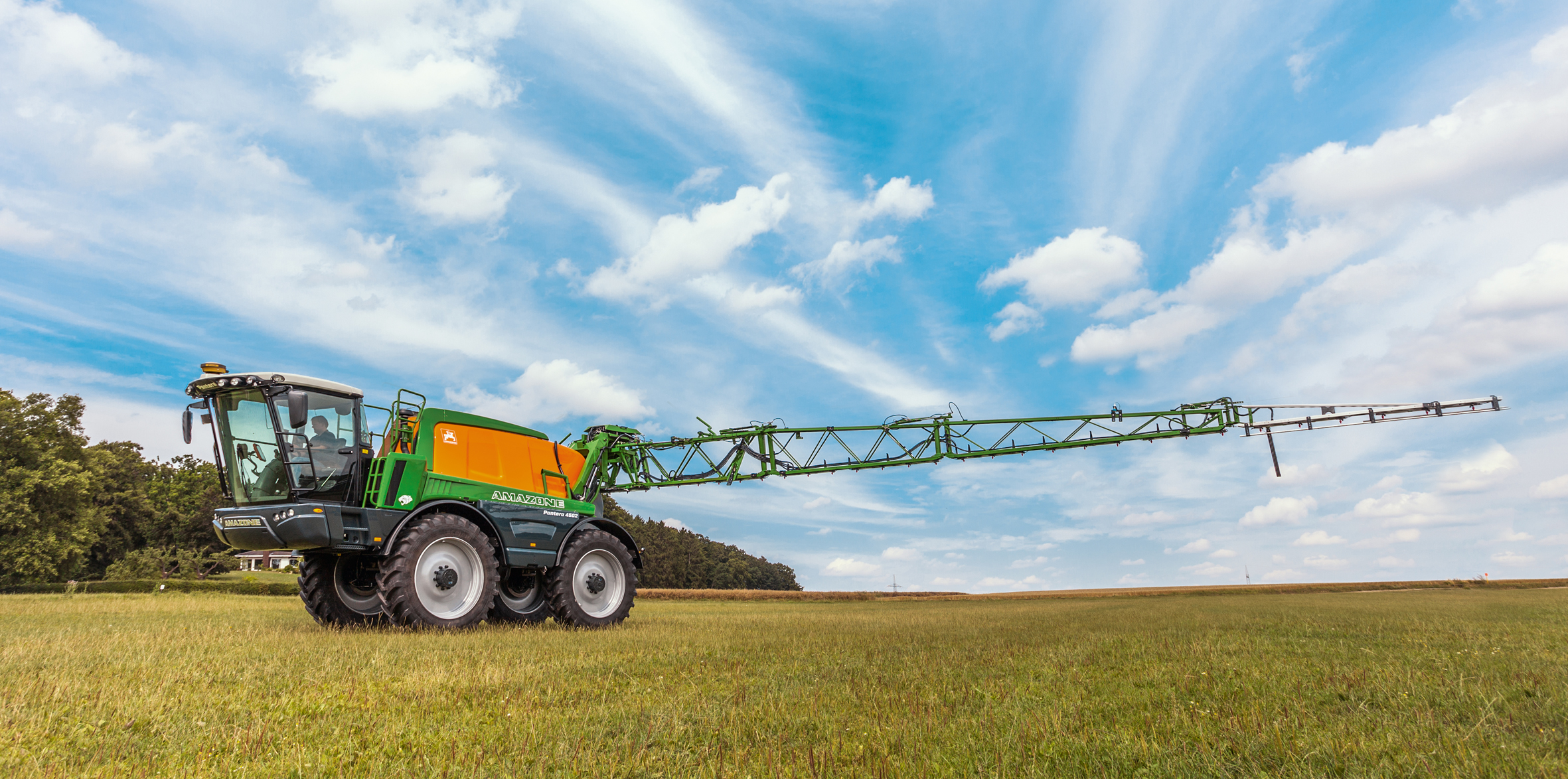

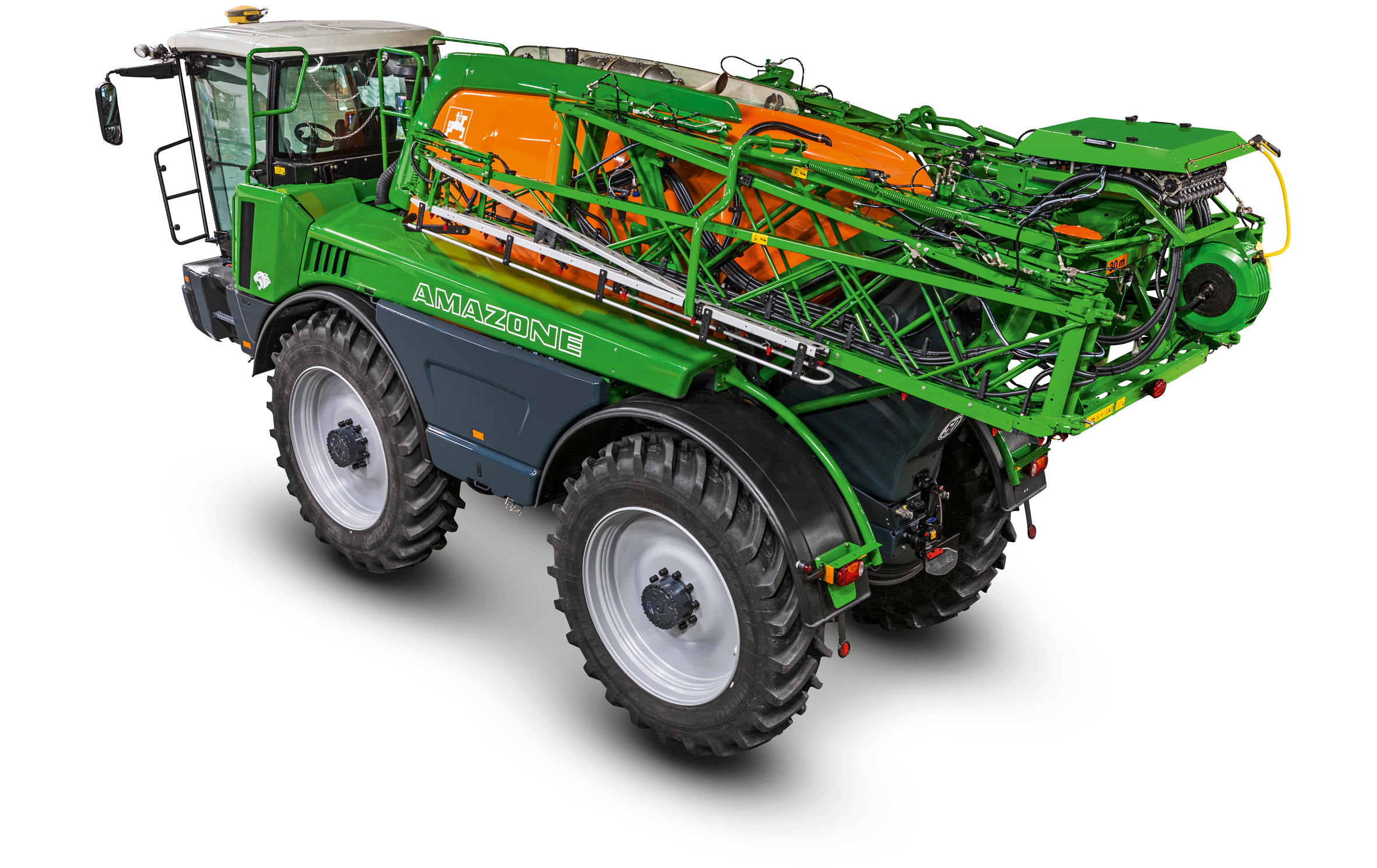

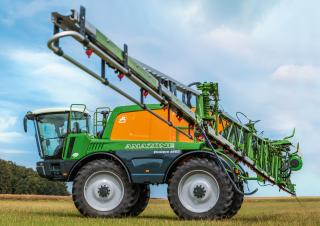

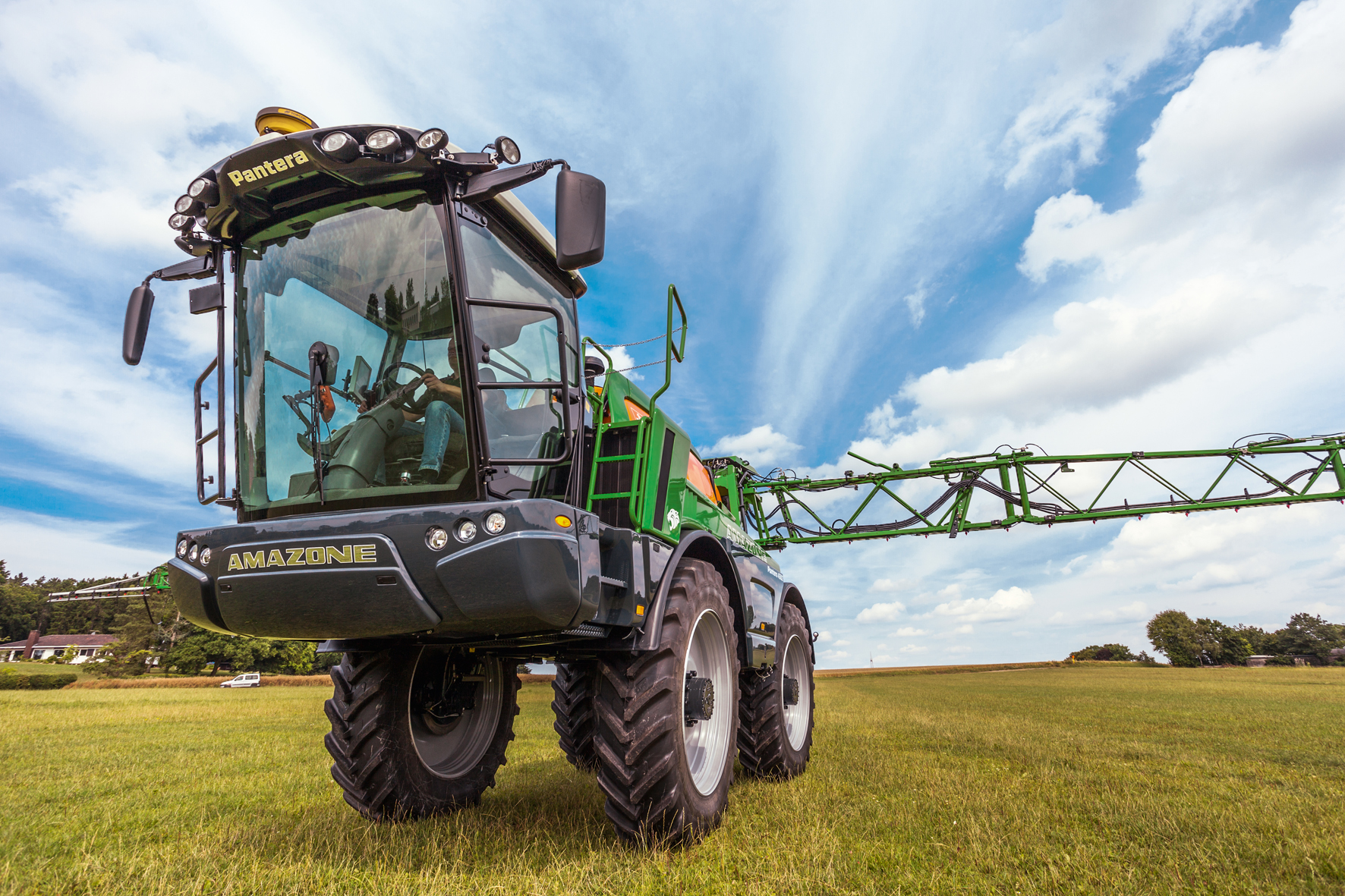

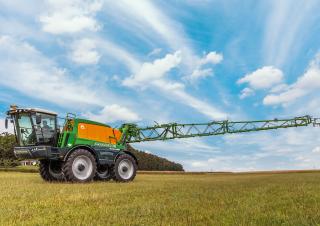

Self-propelled field sprayers Amazone Pantera 4502 (30/15)

Pantera 4502 (30/15)

Years of manufacture: 2013—2017

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Pantera 4502 (30/15) Amazone

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.871 t

Pump type: Altek P 260

Linkage type: Super L-TG

Standard tyres: 380/90 R 46

No. of partial widths: 9

Working width: 30 m

Travel speed: 40 km/h

Barrel volume: 4500 l

Pump capacity: 520 l/min

Transport length: 9.4 m

Transport width: 2.55 m

Transport height: 3.8 m

Engine manuf.: k.A.

Engine type: k.A.

Engine power: 160 kW

More technical details, like: foldable linkage, drive, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Hydr. Hillside /slope control: No

Amazone Pantera 4502 (30/15) FAQ

When was the Amazone Pantera 4502 (30/15) manufactured?

The Amazone Pantera 4502 (30/15) was manufactured from 2013 to 2017.

What is the weight of the Amazone Pantera 4502 (30/15)?

The Amazone Pantera 4502 (30/15) has a weight of 9.87 tonnes.

What are the transport dimensions of the Amazone Pantera 4502 (30/15)?

The Amazone Pantera 4502 (30/15) has a transport length of 9.4 meters, a transport width of 2.55 meters, and a transport height of 3.8 meters.

What is the travel speed of the Amazone Pantera 4502 (30/15)?

The Amazone Pantera 4502 (30/15) has a travel speed of 40 km/h.

What are the standard tyre specifications of the Amazone Pantera 4502 (30/15)?

The Amazone Pantera 4502 (30/15) comes equipped with standard tyres sized 380/90 R 46.

What is the working width of the Amazone Pantera 4502 (30/15)?

The Amazone Pantera 4502 (30/15) has a working width of 30 meters.

What is the barrel volume capacity of the Amazone Pantera 4502 (30/15)?

The Amazone Pantera 4502 (30/15) has a barrel volume capacity of 4500 liters.

What are the key spraying system components of the Amazone Pantera 4502 (30/15)?

The Amazone Pantera 4502 (30/15) features a Super L-TG model linkage and has 9 partial widths.

What are the spraying and pump system specifications for the Amazone Pantera 4502 (30/15)?

The Amazone Pantera 4502 (30/15) is equipped with an Altek P 260 model pump that has a capacity of 520 liters per minute.

How much is a Amazone Pantera 4502 (30/15) Self-propelled field sprayer (2013u20132017) worth?

The residual value of the Amazone Pantera 4502 (30/15) depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
