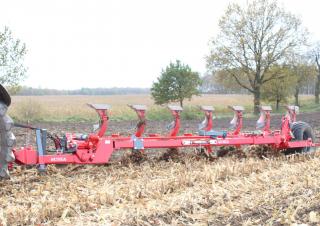

Vis XLS 7+1 Unia Vis XLS 7+1 Specifications & Technical Data (2015—2026)

max. working width: 2.88m – Weight: 4.37t – No. of furrows: 8 – Body spacing: 1000mm – Attachment: ZD – Frame height: 180mm

Ploughs Unia Vis XLS 7+1

Technical specs - Vis XLS 7+1 Unia

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. working width
2.88 m
Weight
4.37 t
No. of furrows
8
Body spacing
1000 mm
Attachment
ZD
Frame height
180 mm
Cutting width
480 mm
construction type
st.

More technical details, like: transport width, leg thickness, required power, stone protection are available in the full technical specs.

Special equipment

Tyres for transport
Yes
Packer arm
No

Download datasheets (PDF)

Unia Vis XLS 7+1 FAQ

When did production of the Unia Vis XL S 7+1 start?

The Unia Vis XL S 7+1 was first produced in 2015.

What is the weight of the Unia Vis XL S 7+1 plough?

The Unia Vis XL S 7+1 plough weighs 4.37 tonnes.

What are the primary working dimensions of the Unia Vis XL S 7+1 plough?

The Unia Vis XL S 7+1 plough has a maximum working width of 2.88 meters and a cutting width of 480 millimeters.

What type of implement hitching does the Unia Vis XL S 7+1 use?

The Unia Vis XL S 7+1 uses a drawbar attachment for implement hitching.

What are the tillage and cultivation components of the Unia Vis XL S 7+1 plough?

The Unia Vis XL S 7+1 plough has 8 furrows, a body spacing of 1000 mm, a frame height of 180 mm, and a rigid construction type.

How much is a Unia Vis XL S 7+1 Plough (2015u20132025) worth?

The residual value of the Unia Vis XL S 7+1 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
