SC20P Scanclimber Industrial hoists (2017 - 2026) Specifications & Dimensions

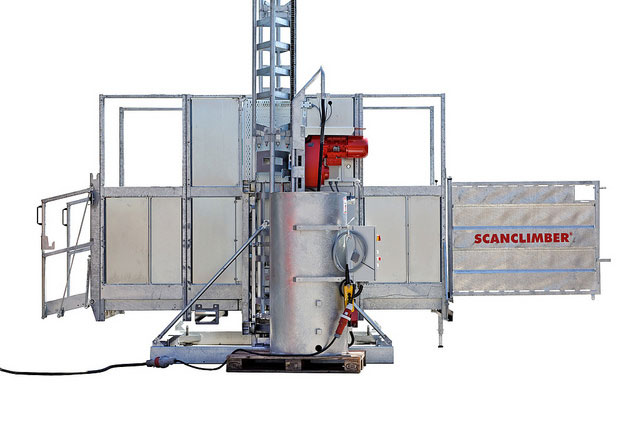

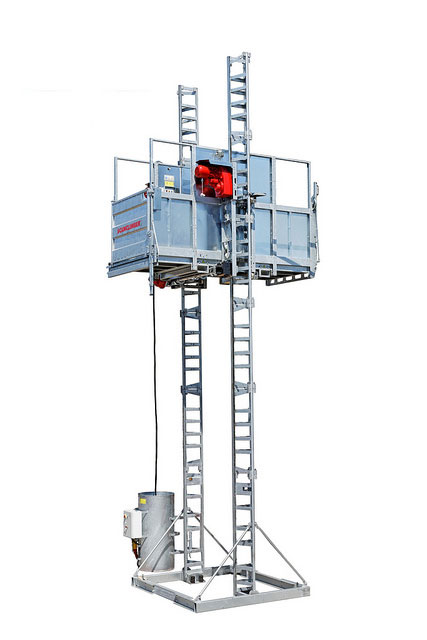

Triple Hoist SC8 and SC20

Scanclimber Triple Hoist is the first family of lightweight, multipurpose hoists that serves as a material hoist, a personnel hoist and a transport platform. The Triple Hoist is always in effective and productive use, thanks to its doubled running speed, versatility and callability (i.e. the possibility to ‘call’ the platform to a specific floor like a normal lift). Other advantages for the customer are first rate safety and ergonomics throughout the whole product range of the Triple Hoist family.

Doubled Speed and Capacity

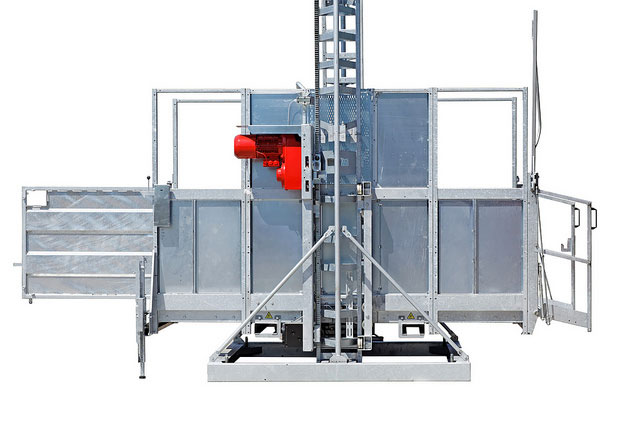

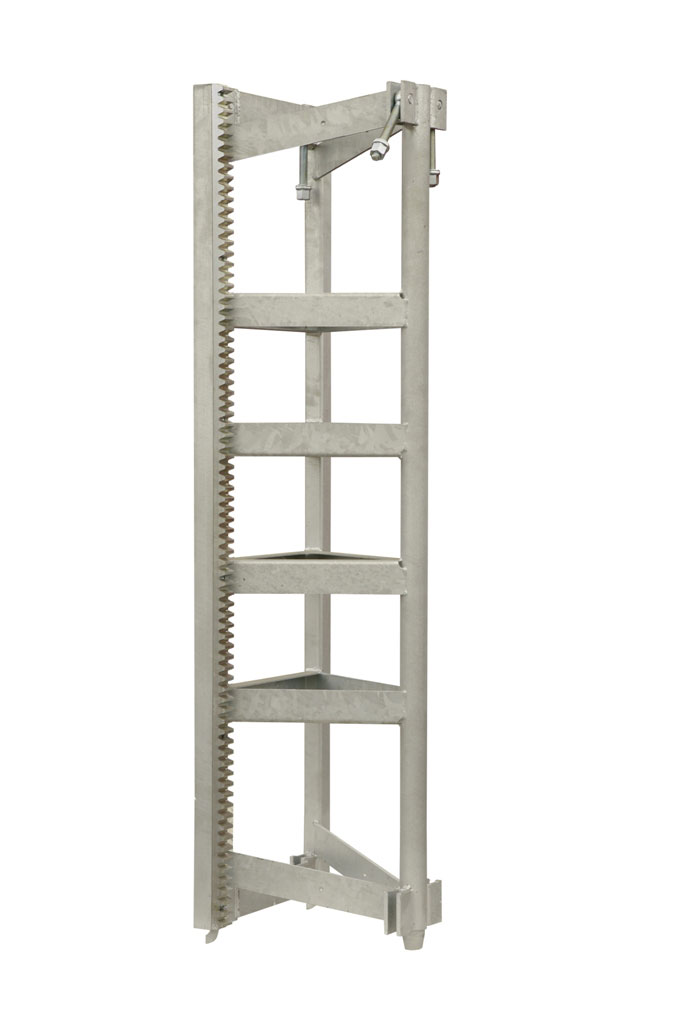

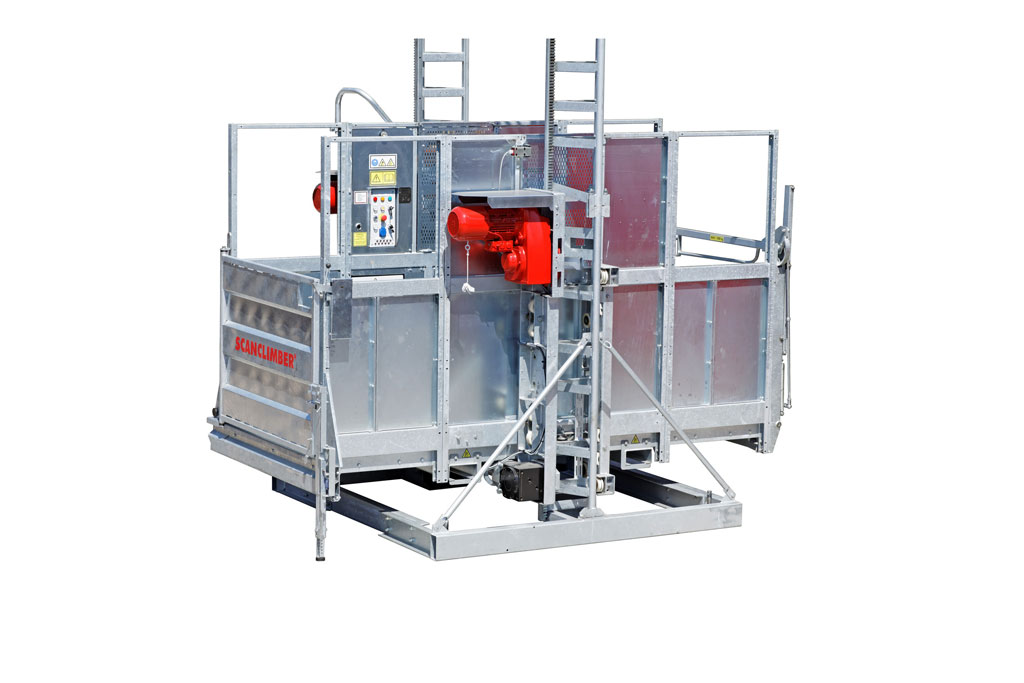

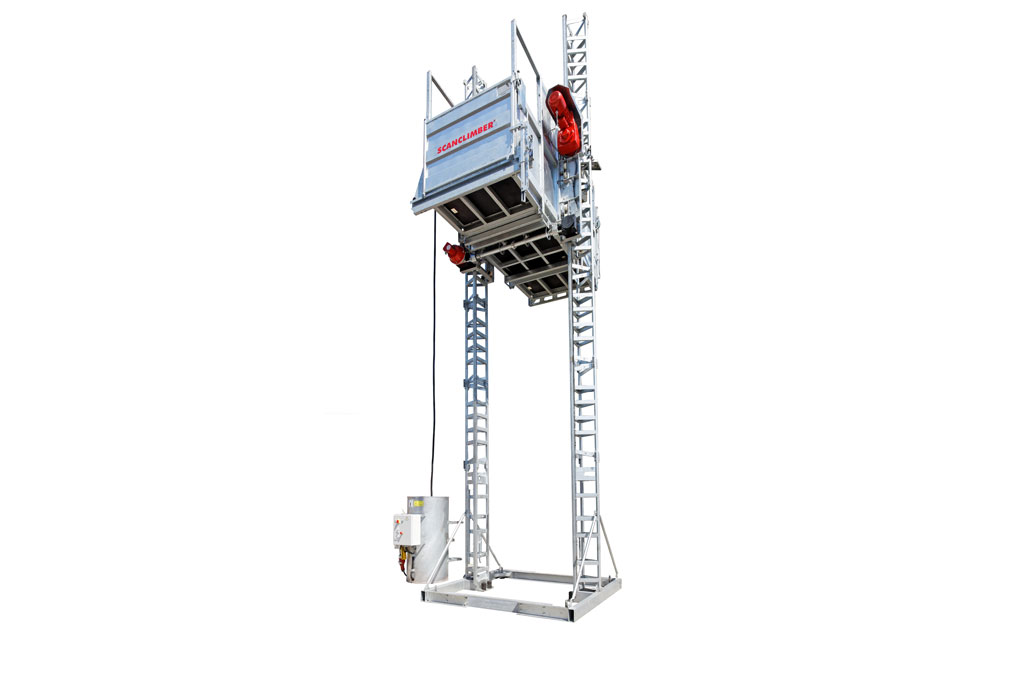

ADDING EXTRA SAFETY systems enabled Scanclimber to double the running speed of the Triple Hoist from 12 meters per minute to 24 meters per minute. Doubling the running speed in passenger transportation mode provides an additional 50 % time saving in active usage time and increases transport capacity by 35 %. THE SINGLE MAST Triple Hoist has a payload capacity of max. 850 kg. The dual mast version can cope with loads of max. 2000 kg. As a transport platform, the maximum passenger loading capacity is 18. Competitors in the same product class have a maximum passenger loading capacity of just 7. THE TRIPLE HOIST is especially suitable for projects at lower building heights (under 100 meters). Thanks to their modular design, both the mast and platform lengths can be extended; for instance, the platform length varies from 1.7 to 5.1 meters.
