XR 8 S 32 Multilift XR 8 S 32 Specifications & Technical Data (2011—2026)

Lifting force: 80kN – max. hook height: 1.57m – Construction type: S – Max. container length: 4m – Max. container volume: 8m³ – max. total weight: 12t

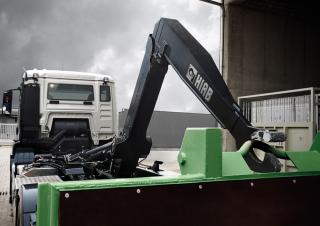

Roll-off Tippers Multilift XR 8 S 32
Roll-off Tippers Multilift XR 8 S 32
Roll-off Tippers Multilift XR 8 S 32
Roll-off Tippers Multilift XR 8 S 32

Technical specs - XR 8 S 32 Multilift

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Lifting force
80 kN
max. hook height
1.57 m
Construction type
S
Max. container length
4 m
Max. container volume
8 m³
max. total weight
12 t
Axles
2
Model series
XR

Basic unit, unmounted K = articulated hook arm, SZA = semi-trailer, KO = combination of articulated hook arm and winch for slip-off/roll-off container, S = thrust hook arm, SK = articulated thrust hook arm, SiloT = silo transporter

Special equipment

telescopic
Yes
with add. articulation
No
3-way tipping device
No

Download datasheets (PDF)

Multilift XR 8 S 32 overview

Loading

A light expert for big containers

The Hiab Multilift XR 8S offers maximum productivity in a small package. The hook height of 1450 / 1570 mm gives you a wide range of transportation options while the lifting capacity of 8,000 kg masters loads easily and comfortably.


Never carry an empty load

In addition to the normal tasks demountables perform, the XR 8S is a utility expert in tipping or transporting. Tipping is guaranteed to be simple with fast and reliable operation. Its functionality eliminates empty return trips with a dual capacity to transport light containers or machinery to new destinations. Together with easy control and smooth movements, it is a most cost-effective method of dealing with your load.


Safety the priority

As in all Hiab Multilift demountables, safety is a key priority in the XR-series. Safety features include load-holding valves directly on the cylinders and a tipping lock mechanism. The XR-series meets all the minimum requirements of the EU’s Directive on the Safety of Machinery.
