SPS 30000 B Sany SPS 30000 B Specifications & Technical Data (2017—2026)

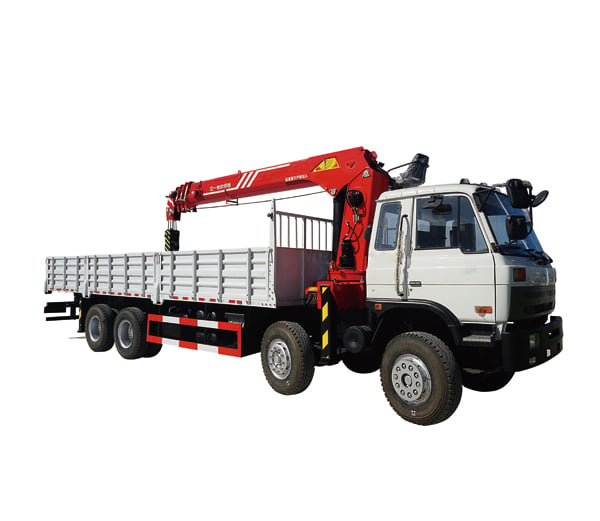

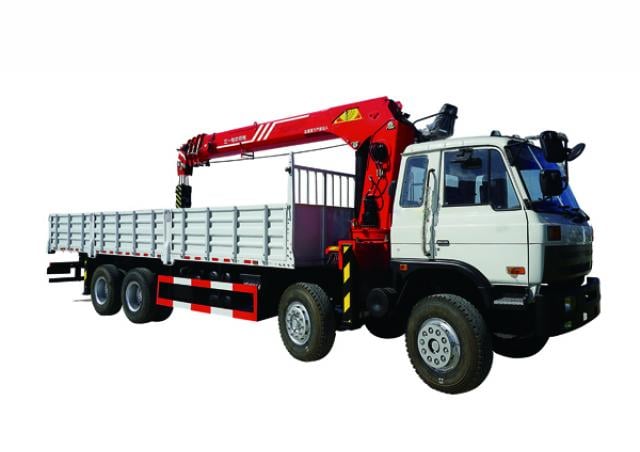

The Sany SPS 30000 B is a truck-mounted loading crane manufactured by Sany since 2017. It has a weight of 4.2 tons and a carrying …

The Sany SPS 30000 B is a truck-mounted loading crane manufactured by Sany since 2017. It has a weight of 4.2 tons and a carrying capacity of 1.7 tons. The load torque is 294.19 kNm, and it has a maximum carrying capacity of 12 tons. At its maximum reach of 14.5 meters, it can lift heavy loads. The crane has a maximum standard boom length of 14.5 meters. The machine itself has a length of 5.741 meters, a width of 2.47 meters, and a height of 2.486 meters. At a reach of 2.5 meters, it can still perform its functions.

Hydraulic loading cranes Sany SPS 30000 B
Hydraulic loading cranes Sany SPS 30000 B
Hydraulic loading cranes Sany SPS 30000 B
Hydraulic loading cranes Sany SPS 30000 B

Visit Sany live at

Technical specs - SPS 30000 B Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
294.19 kNm
machine length
5.741 m
machine width
2.47 m
machine height
2.486 m
max. standard boom
14.5 m
Carrying capacity
1.7 t
at max. reach
14.5 m
Weight
4.2 t
max. carrying capacity
12 t
at reach
2.5 m
Model series
SPS

More technical details, like: load of additional jib, max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No

Download datasheets (PDF)

Sany SPS 30000 B overview

Sany SPS 30000 B features overview

Popular Options

Overload Protection System Built in safety function Stops all movements that could further increase the lifting moment Radio Remote Control Allows to remotely control the crane Provides the best-possible overview of the loading process and ensures higher efficiency in use Top Seat Optimal functionality and ergonomics Excellent visibility and easy operation Two Speed Winch Designed to maximize the efficiency.


Lifting

Crane Features

High tensile strength extension booms to optimize the lifting height and the working range. Best lift-to-weight ratio in the industry. The wide outrigger span ensures the best stability in all mounting situations. The standard package includes 2 working lights to ensure safe operation, day and night. Optionally available is an over-load protection system to ensure safe crane operation. SANY PALFINGER produces according to European Quality Standards to ensure the best reliability, performance, and safety in the industry. Optimized for installation on 4 axle trucks. A Safety Package is optionally available.


Standard Features

High Density Paint System Demonstrates superior performance Long-term UV-resistance Attractive aesthetics Ergonomic Design Practical and Attractive SANY PALFINGER follows the general principles of ergonomics to ensure a comfortable and safe crane operation High Pressure and Return Filter Ensures proper functionality and lifetime Two oil filters are installed on each crane Advanced Proportional Hydraulic System Allows the operator to use multiple functions simultaneously Increases working speed.
