PM 32.5 S PX PM PM 32.5 S PX Specifications & Technical Data (2017—2026)

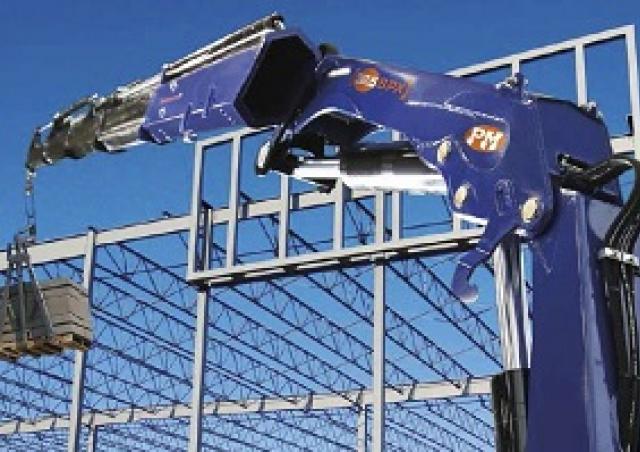

The PM 32.5 S PX is a hydraulic loading crane manufactured by PM since 2017. It has a weight of 3.445 tons and a load torque of 26…

The PM 32.5 S PX is a hydraulic loading crane manufactured by PM since 2017. It has a weight of 3.445 tons and a load torque of 264 kNm. The machine has a length of 2.52 meters, a width of 1.175 meters, and a height of 2.37 meters.

Hydraulic loading cranes PM PM 32.5 S PX

Technical specs - PM 32.5 S PX PM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
264 kNm
machine length
2.52 m
machine width
1.175 m
machine height
2.37 m
Weight
3.445 t
Model series
PM

More technical details, like: max. standard boom, carrying capacity, at max. reach, load of additional jib, max. carrying capacity, at reach, max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No

Download datasheets (PDF)

PM PM 32.5 S PX overview

Lifting

Outer boom upward angle

Outer boom with extra upwards 15° angle. Perfect control of the load in every working position. Narrow spaces can be easily reached.


Winch

An electronically controlled winch with a lifting capacity of 2500 kg can be fitted on the crane, even with winch wire rope transmitted to the jib.


Maximum capacity

Maximum capacity at the movable hook. Maximum capacity from horizontal to vertical. The stated performances can be obtained with 8° inclination of the main boom.


Jib

Anti-corrosion protection systems

In particularly difficult weather conditions and for specific uses of the crane (e.g. 24/24 h jobs, on snowploughs, in mines or quarries, in marine areas etc.), all components of the crane that are mostly exposed to corrosion (such as extension arms, rods, pins, ring nuts, etc.) can be protected using two possible protection systems.Type A system: parts exposed to corrosion are treated with zinc-based primer and special two-component glazes. This type of treatment increases the resistance to corrosion of the part by 100% compared to the same part untreated.Type B system: parts exposed to corrosion are treated with a layer of primer and paint. This increases the resistance to corrosion of the components by 50% compared to the same part untreated.
