PK 92002 SH E Palfinger PK 92002 SH E Specifications & Technical Data (2012—2026)

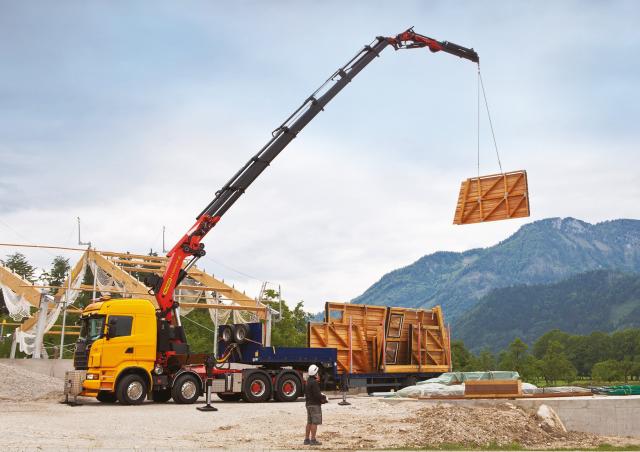

The Palfinger PK 92002 SH E is a truck-mounted loading crane manufactured by Palfinger since 2012. It has a weight of 8.18 tons an…

The Palfinger PK 92002 SH E is a truck-mounted loading crane manufactured by Palfinger since 2012. It has a weight of 8.18 tons and a carrying capacity of 4.6 tons. The load torque is 838.8 kNm, and it has a maximum carrying capacity of 27.2 tons. At its maximum reach of 15.5 meters, it can lift heavy loads. The crane also has a load of additional jib of 2 tons and a maximum standard boom length of 15.7 meters. The machine itself has a length of 2.55 meters, a width of 1.915 meters, and a height of 2.47 meters. At its maximum reach of 24.6 meters, it can still perform its functions. It is equipped with special features such as an articulated boom overstraining, electronic load torque limitation, endless pivoting, hydraulic brace support, and a remote control.

Hydraulic loading cranes Palfinger PK 92002 SH E

Visit Palfinger live at

Technical specs - PK 92002 SH E Palfinger

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
838.8 kNm
machine length
2.55 m
machine width
1.915 m
machine height
2.47 m
max. standard boom
15.7 m
Carrying capacity
4.6 t
at max. reach
15.5 m
Load of additional Jib
2 t
Weight
8.18 t
max. carrying capacity
27.2 t
Model series
SH

More technical details, like: at reach, max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
Yes
Electronic load torque limitation
Yes
Endless pivoting
Yes
High seat
No
Remote control
Yes
Adjustable pivoting
No
Articulated boom overstraining
Yes

Download datasheets (PDF)

Palfinger PK 92002 SH E overview

Palfinger PK 92002 SH E features overview

Lifetime Excellence

Palfinger loader cranes are convincing due to their superior life-cycle performance. They are the most economical and also the most reliable over the entire product life. From solution finding to resale.Better solutionsBetter efficiencyBetter ergonomicsHigher availabilityMore reliabilityBetter ecologyHigher serviceabilityHigher value retention


Lifting

Power link plus

With the 12-degree reverse linkage system, you can reach through low door openings and also work inside buildings. Heavy crane work – even in difficult conditions.


Continuous slewing system

More efficient in operation due to faster loading cycles, since the crane can be slewed over a shorter distance. The crane works more efficiently and faster.


Power link cable winch

Characterised by low installation height, it is ideal for working inside buildings and transports with the crane boom unfolded. The Comfort Cable Routing reduces set-up times to a minimum.


Dps plus

The Dual Power System allows multiple uses of the crane both for large outreaches as well as for heavy load operation.


Jib

Copes with heavyduty assignments just as easily as with delicate installations

Maximum utilisation of the working range due to HPSC More lifting power due to S-HPLS High user friendliness due to radio remote control Perfect appearance and the highest value retention due to coating technology More variety due to fly-jib


Low-maintenance extension system

With sliding elements made of synthetic material and the high-quality KTL coating, this boom system significantly simplifies service performed by the operator. This saves time and money – and protects the environment.


Hpsc

The variable stabiliser positioning of the High Performance Stability Control System makes it possible to utilise the lifting capacity to the maximum. It enables working within tight spaces.


Equipment & Digital

How to fold a crane

The new assistance system P-Fold makes folding and unfolding an easy job for the crane operator. All movements of the crane are activated by only one control lever. This significantly increases operator comfort and prevents costly damage.
