PK 62002 EH D Palfinger PK 62002 EH D Specifications & Technical Data (2017—2026)

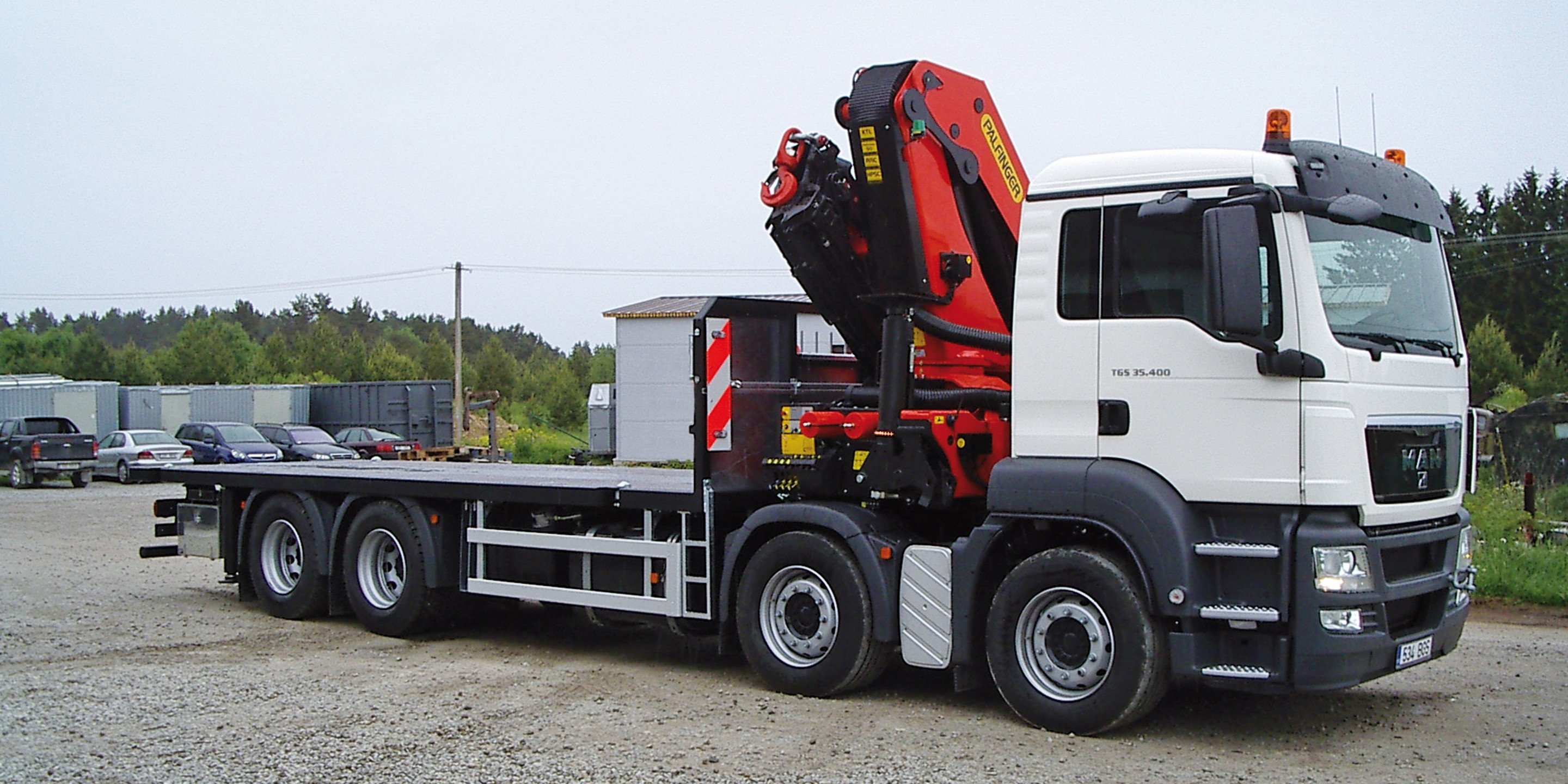

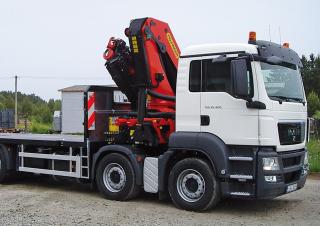

The Palfinger PK 62002 EH D is a truck-mounted loading crane manufactured by Palfinger since 2017. It has a weight of 5.91 tons an…

The Palfinger PK 62002 EH D is a truck-mounted loading crane manufactured by Palfinger since 2017. It has a weight of 5.91 tons and a carrying capacity of 1.5 tons. The load torque is 567 kNm, and it has a maximum carrying capacity of 20.4 tons. At its maximum reach of 20.7 meters, it can lift heavy loads. The crane also has a load of additional jib of 0.93 tons. The maximum standard boom length is 20.7 meters. The machine itself has a length of 2.55 meters, a width of 1.709 meters, and a height of 2.59 meters. At its maximum reach of 23.7 meters, it can still perform its functions.

Hydraulic loading cranes Palfinger PK 62002 EH D

Visit Palfinger live at

Technical specs - PK 62002 EH D Palfinger

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
567 kNm
machine length
2.55 m
machine width
1.709 m
machine height
2.59 m
max. standard boom
20.7 m
Carrying capacity
1.5 t
at max. reach
20.7 m
Load of additional Jib
0.93 t
Weight
5.91 t
max. carrying capacity
20.4 t
Model series
EH

More technical details, like: at reach, max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No

Download datasheets (PDF)

Palfinger PK 62002 EH D overview

Palfinger PK 62002 EH D features overview

Functional design

Robust plastic covers protect crane parts against dirt and damage. Better appearance and increased operational comfort – during the entire lifetime.


Lifting

Power Link Plus

With the 15-degree reverse linkage system, you can reach through low door openings and also work inside buildings. Heavy crane work – even in difficult conditions.


Low-maintenance extension system

With sliding elements made of synthetic material and the high-quality KTL coating, this boom system significantly simplifies service performed by the operator. This saves time and money – and protects the environment.


Hpsc

The variable stabiliser positioning of the High Performance Stability Control System makes it possible to utilise the lifting capacity to the maximum. It enables working within tight spaces.


Jib

Coating technology

The KTL coating lays the foundation for a perfect surface protection. Afterwards, the components are either coated in the powder-coating facility or finished with a two-components topcoat. This process ensures high value retention and excellent corrosion protection for the entire life of a crane.


Equipment & Digital

Pal 50

The PALTRONIC 50, PALFINGER offers the latest control electronics for the series production crane. The custom designed electronic operates and monitors the crane and offers more efficiency in use and safety.


Control console

All important information about the crane can be seen on the main control stand. Ergonomic control levers and the optional lighting package provide increased safety and comfort even in poor visibility conditions.


Radio remote control

PALFINGER radio remote controls are quipped with linear lever or cross lever and provide the greatest possible comfort for the operator. All EH models with LED-Display inform the crane operator.
