PK 16002 A Palfinger PK 16002 A Specifications & Technical Data (2009—2026)

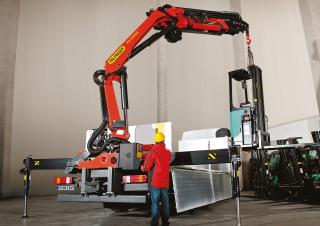

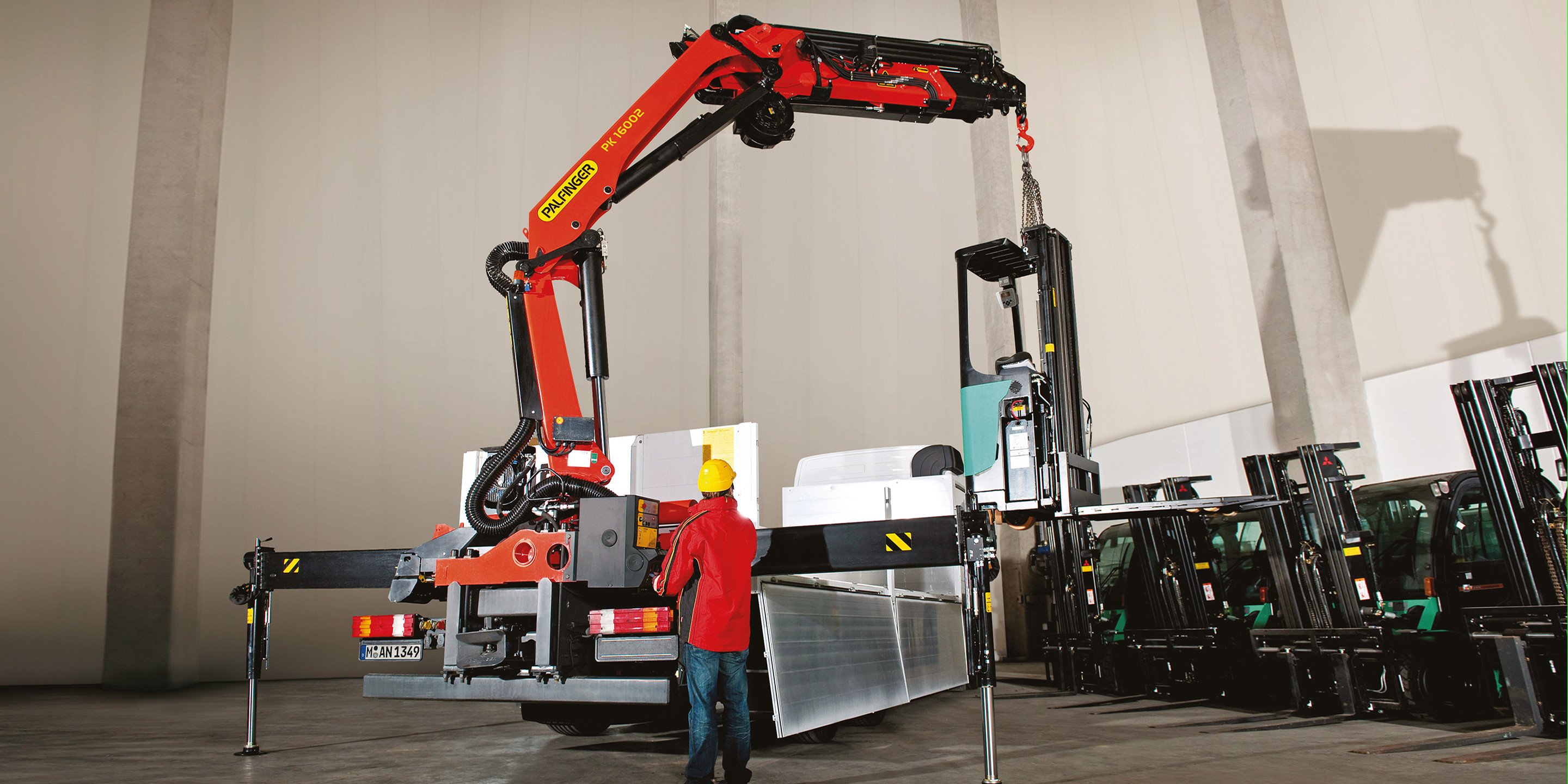

The Palfinger PK 16002 A is a truck-mounted loading crane manufactured by Palfinger since 2009. It has a weight of 1.868 tons and …

The Palfinger PK 16002 A is a truck-mounted loading crane manufactured by Palfinger since 2009. It has a weight of 1.868 tons and a carrying capacity of 1.84 tons. The load torque is 151 kNm, and it has a maximum carrying capacity of 6.1 tons. At its maximum reach of 7.9 meters, it can lift heavy loads. The crane has a maximum standard boom length of 8.1 meters. The machine itself has a length of 2.51 meters, a width of 0.83 meters, and a height of 2.27 meters. It is equipped with special features such as an articulated boom overstraining and electronic load torque limitation.

Hydraulic loading cranes Palfinger PK 16002 A

Visit Palfinger live at

Technical specs - PK 16002 A Palfinger

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
151 kNm
machine length
2.51 m
machine width
0.83 m
machine height
2.27 m
max. standard boom
8.1 m
Carrying capacity
1.84 t
at max. reach
7.9 m
Weight
1.868 t
max. carrying capacity
6.1 t

More technical details, like: load of additional jib, at reach, max. hook height, required power, model series are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
Yes
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
Yes

Download datasheets (PDF)

Palfinger PK 16002 A overview

Palfinger PK 16002 A features overview

Power Link Plus

This knuckle boom, specially developed by PALFINGER, which can be angled upwards, stands out by virtue of excellent movement geometry. Even in the tightest spaces, difficult crane jobs can be performed with precision.


Lifting

Radio remote control

Radio remote control with digital data transmission (standard on EH models) offers maximum efficiency and comfort. The display integrated in the handset informs the crane operator continuously about the current capacity loading level of the crane.


Paltronic 50

Modern electronics in the increasingly complex crane system offers safety and comfort functions which make the crane operator's work easier and increases the efficiency of the crane job.


Load-holding valve

They prevent the crane boom from dropping and are fitted as standard on all slewing, lifting, knuckle-boom and extension cylinders. The valves are positioned in such a way that they are protected against damage.


Return oil utilisation

The high speed of the extension system is impressive. It results from return oil utilisation, which is installed as standard, and the generously dimensioned hydraulic lines. This increases efficiency in all types of applications!


ISC (optional)

The integrated stability control (ISC) is a system that monitors the stability of the crane vehicle. The system adjusts the crane's lifting forces depending on the current stability support situation and the crane boom to ensure the vehicle's stability over the entire working area.


Jib

Maintenance-free extension system

With the maintenance-free extension system PALFINGER sets a clear path in easy servicing. The use of sliding elements made of special plastic in combination with the proven KTL cathodic dip painting means that the extension boom system no longer has to be serviced by the operator. This not only saves time and expense but also protects the environment.


KTL – the cathodic dip painting

The shot-blasted crane parts are covered in zinc phosphate in an immersion process and coated electro-statically. The subsequent two-component top coating of paint provides a surface protection which in the past was usually only found in the automotive industry.


Equipment & Digital

Control console

All important information about the crane can be seen on the main control stand. A digital indicator counts and displays the operating hours. Ergonomic control levers and the optional lighting package provide increased safety and comfort even in poor visibility conditions.


Lighting package (optional)

The control stand is supplied on request with LED illumination and backlit symbols. LED warning lights are fitted on the outriggers to provide better visibility.
