PK 10000 Palfinger PK 10000 Specifications & Technical Data (2017—2026)

The Palfinger PK 10000 is a hydraulic loading crane manufactured by Palfinger since 2017. It weighs 1.031 tons and has a carrying …

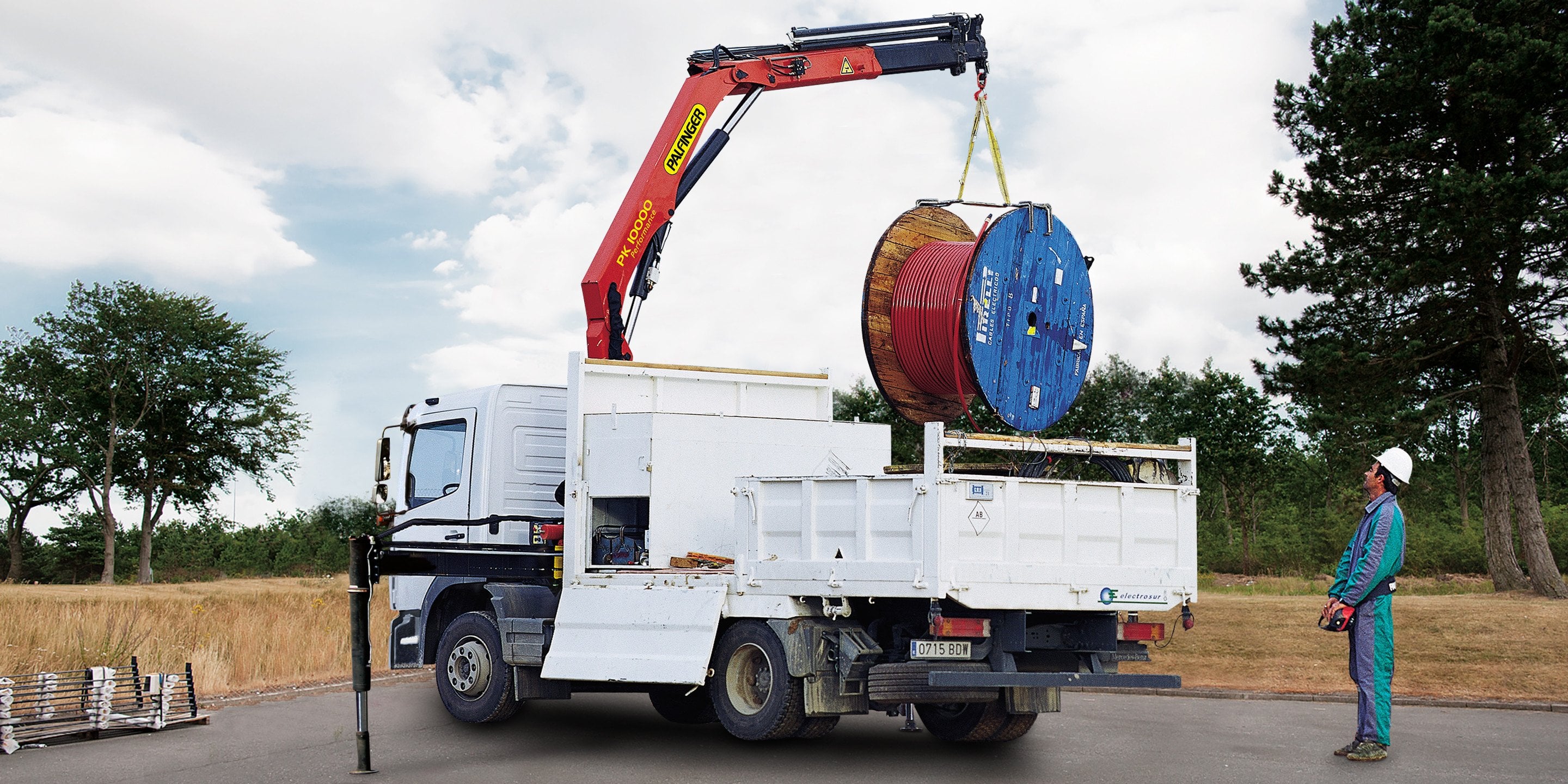

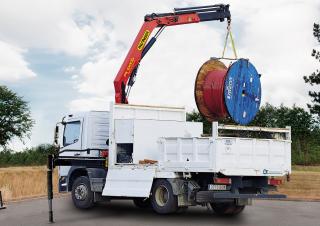

The Palfinger PK 10000 is a hydraulic loading crane manufactured by Palfinger since 2017. It weighs 1.031 tons and has a carrying capacity of 1.57 tons. The load torque is 93.5 kNm. The maximum carrying capacity is 5.7 tons, and it can reach a maximum reach of 6.1 meters. The crane has a maximum standard boom length of 6.1 meters. The machine itself has a length of 2.415 meters, a width of 0.694 meters, and a height of 2.016 meters.

Hydraulic loading cranes Palfinger PK 10000

Visit Palfinger live at

Technical specs - PK 10000 Palfinger

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
93.5 kNm
machine length
2.415 m
machine width
0.694 m
machine height
2.016 m
max. standard boom
6.1 m
Carrying capacity
1.57 t
at max. reach
6.1 m
Weight
1.031 t
max. carrying capacity
5.7 t

More technical details, like: load of additional jib, at reach, max. hook height, required power, model series are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No

Download datasheets (PDF)

Palfinger PK 10000 overview

Palfinger PK 10000 features overview

Lifetime excellence

PALFINGER loader cranes are convincing due to their superior life-cycle performance. They are the most economical and also the most reliable over the entire product life. From solution finding to resale. Better solutions Better efficiency Better ergonomics Higher availability More reliability Better ecology Higher serviceability Higher value retention


Lifting

Best Ratio of Weight to Lifting Capacity in Its Class

The PK 10000 Performance – the perfect crane for general duty! Because of its maximum ratio of weight to lifting capacity – the leading performance in this metre-tonne class – and its practical equipment specification, it becomes your perfect working unit. The use of high-strength fine-grained structural steel and the new hexagonal boom profile make it possible to have an enormous hydraulic outreach of 12.4 m.


Large outrigger widths

The PK 10000 Performance fits on all standard truck chassis. Three stabiliser spreads are possible: 3.3 m (mechanical), 4.9 m (mechanical or alternatively hydraulic) and 5.6 m (hydraulic).


Hydraulic overload safety device

Also available as an option is the hydraulic overload safety device. In the event of overloading it immediately blocks any movements which would increase the load moment.


Equipment & Digital

Ergonomic crane control

The operating levers for all crane functions are ergonomically arranged on the console. This provides comfortable, efficient working. The control console is mounted so that it is easy to service.


Radio control

The optional PALFINGER radio control system with digital data transmission ensures maximum safety and convenience. The display which is integrated in the control console informs the crane operator continuously about the current capacity status of the crane. In combination with the PALFINGER radio control system, the load sensing proportional valve enables the crane to be adjusted with great sensitively.
