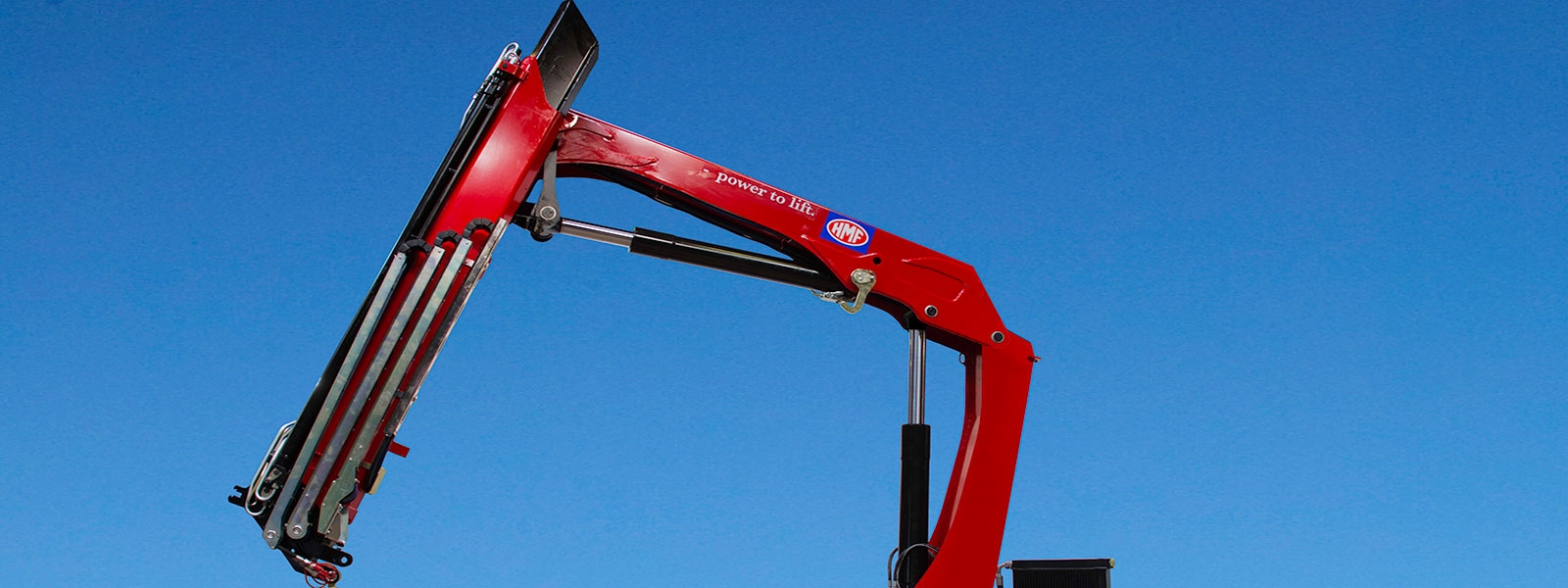

    HMF 900-K4 Specifications & Technical Data (2017-2019)

    Rate this machine now!

    HMF is the manufacturer of the hydraulic loading crane model 900-K4. Find and download detailed specs and data sheets for this mac... Read more

    HMF is the manufacturer of the hydraulic loading crane model 900-K4. Find and download detailed specs and data sheets for this machine here.

    The 900-K4 is categorised in the smallest machine segment in the hydraulic loading crane category. The measurements of this hydraulic loading crane are 2.35m x 0.747m. To be able to lift loads, the 900-K4 crane is equipped with a 11.8m-long boom. This model is constructed to deliever a load torque of 78kNm.

    It does not include Adjustable pivoting, Endless pivoting and Electronic load torque limitation. Get the original HMF 900-K4 datasheet for even more detailed specifications and machine details. You can download it for free in Spanish, German, English and French on LECTURA Specs.

    Manufacturing of this model is still ongoing.

    At present, 429 other hydraulic loading cranes, which range from 5kNm up to 756kNm are produced by HMF. Of these, 340-K2 , 6020-K6 and also 260-T2 are the most frequently visited on LECTURA Specs. This 900-K4 hydraulic loading crane, which was produced between 2017 and 2018 ranks in the LECTURA index at #3378. Want more detailed specifications? Download the latest HMF 900-K4 specs data sheet on LECTURA Specs today!

    Technical specs - 900-K4 HMF

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Load Torque 78 kNm
    • machine length 2.35 m
    • machine width 0.747 m
    • machine height 2.135 m
    • max. standard boom 11.8 m
    • Carrying capacity 0.445 t
    • at max. reach 13.9 m
    • Weight 1.295 t
    • Load of additional Jib ###
    • max. carrying capacity ###
    • at reach ###
    • max. hook height ###
    • Required power ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
