    HMF 900-K2 Specifications & Technical Data (2017-2019)

    Rate this machine now!

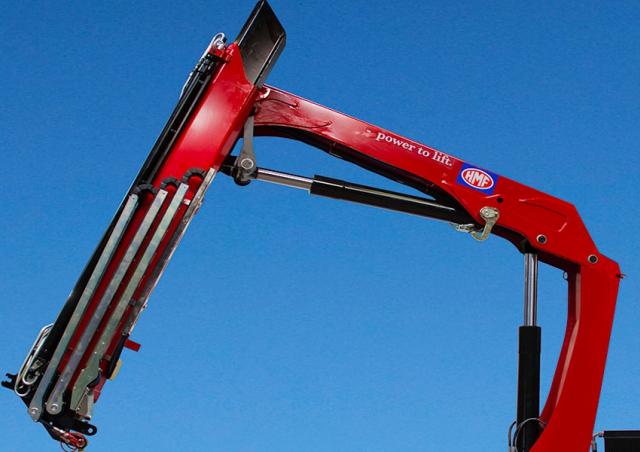

    Manufactured by HMF, this is the 900-K2 hydraulic loading crane. Find and download detailed specs and data sheets for this machine... Read more

    Manufactured by HMF, this is the 900-K2 hydraulic loading crane. Find and download detailed specs and data sheets for this machine here.

    The HMF 900-K2 can be grouped in the smallest machine segment in the hydraulic loading crane category. Dimensions of 900-K2 model are 2.35m length and 0.747m width. The longest standard boom the HMF 900-K2 can have is 7.5m. The stated load torque of the HMF 900-K2 is 83kNm.

    Electronic load torque limitation, Hydr. Brace support and Articulated boom overstraining are not provided on this model as of 2018. Find detailed specifications and machine details in the original HMF 900-K2 datasheet. Specification sheet is available for a free download in English, German, French and Spanish - providing the machine descriptions and more detailed specs about this particular model.

    Manufacturing of this model is still ongoing.

    At present, 429 other hydraulic loading cranes, which range from 5kNm up to 756kNm are produced by HMF. Of these, 260-T2, 6020-K6 and also 340-K2 are the most frequently visited on LECTURA Specs. This 900-K2 hydraulic loading crane, which was produced between 2017 and 2018 ranks in the LECTURA index at #3219. Want more detailed specifications? Download the latest HMF 900-K2 specs data sheet on LECTURA Specs today!

    Technical specs - 900-K2 HMF

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Load Torque 83 kNm
    • machine length 2.35 m
    • machine width 0.747 m
    • machine height 2.135 m
    • max. standard boom 7.5 m
    • Carrying capacity 0.83 t
    • at max. reach 9.5 m
    • Weight 1.105 t
    • Load of additional Jib ###
    • max. carrying capacity ###
    • at reach ###
    • max. hook height ###
    • Required power ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
