8520-OK2 HMF 8520-OK2 Specifications & Technical Data (2010—2017)

The HMF 8520-OK2 is a truck-mounted loading crane manufactured by HMF from 2010 to 2017. It has a weight of 6.645 tons and a carry…

The HMF 8520-OK2 is a truck-mounted loading crane manufactured by HMF from 2010 to 2017. It has a weight of 6.645 tons and a carrying capacity of 9.5 tons. The load torque is 756 kNm, and it has a maximum reach of 8.1 meters. The crane has a maximum standard boom length of 8.3 meters. The machine itself has a length of 2.5 meters, a width of 1.3 meters, and a height of 2.495 meters. It is equipped with special features such as adjustable pivoting, electronic load torque limitation, endless pivoting, hydraulic brace support, and a remote control.

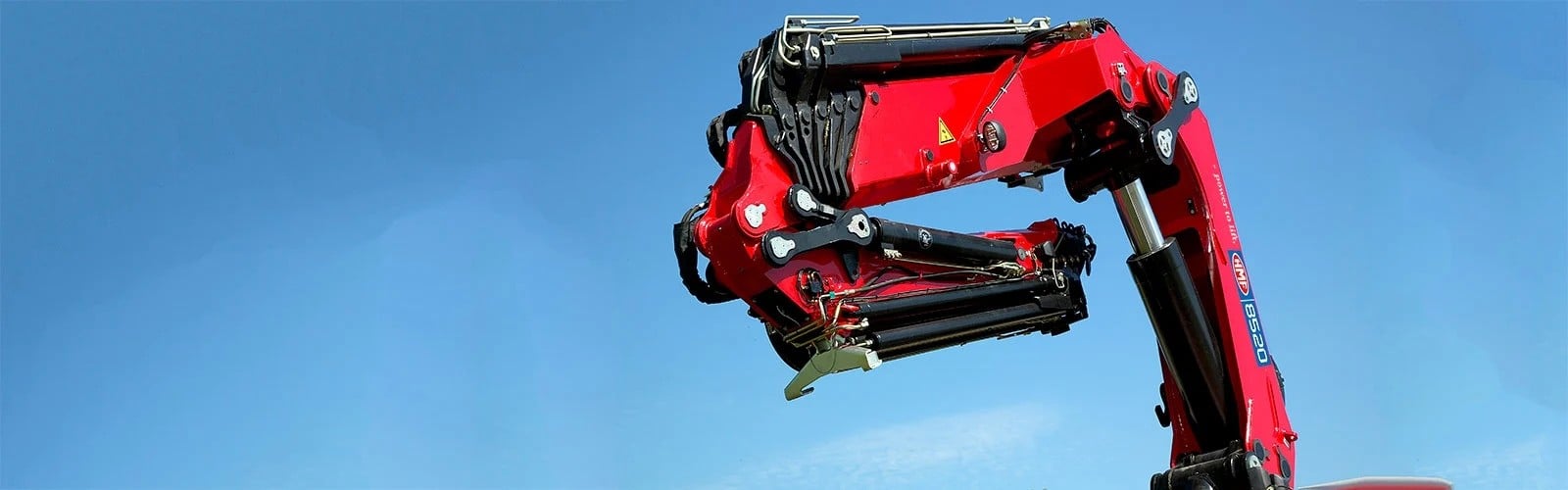

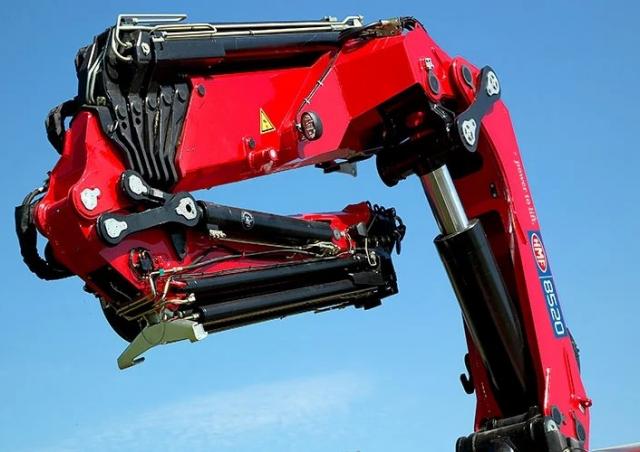

Hydraulic loading cranes HMF 8520-OK2

Technical specs - 8520-OK2 HMF

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
756 kNm
machine length
2.5 m
machine width
1.3 m
machine height
2.495 m
max. standard boom
8.3 m
Carrying capacity
9.5 t
at max. reach
8.1 m
Weight
6.645 t

More technical details, like: load of additional jib, max. carrying capacity, at reach, max. hook height, required power, model series are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
Yes
Electronic load torque limitation
Yes
Endless pivoting
Yes
High seat
No
Remote control
Yes
Adjustable pivoting
Yes
Articulated boom overstraining
No
