5020-K7-RCS HMF 5020-K7-RCS Specifications & Technical Data (2016—2026)

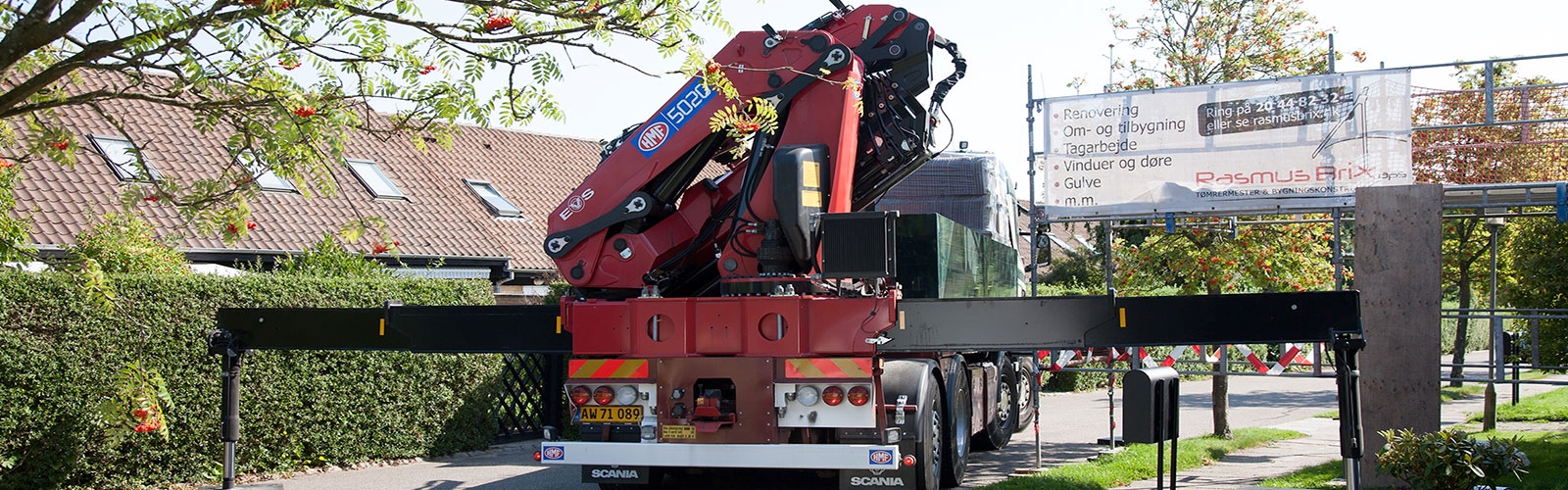

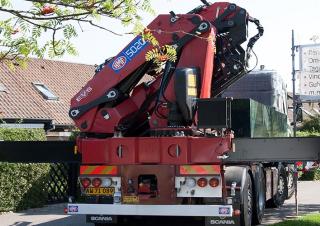

The HMF 5020-K7 is a truck-mounted loading crane manufactured by HMF since 2016. It has a weight of 5.17 tons and a carrying capac…

The HMF 5020-K7 is a truck-mounted loading crane manufactured by HMF since 2016. It has a weight of 5.17 tons and a carrying capacity of 1.73 tons. The required power is 49 kW, and the load torque is 426 kNm. It has a maximum carrying capacity of 9.04 tons and can reach a maximum distance of 19.1 meters. The crane's standard boom also extends up to 19.1 meters. The machine itself has a length of 2.519 meters, a width of 1.298 meters, and a height of 2.438 meters. At a reach of 4.8 meters, it can still perform its functions.

Hydraulic loading cranes HMF 5020-K7-RCS

Technical specs - 5020-K7-RCS HMF

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
426 kNm
machine length
2.519 m
machine width
1.298 m
machine height
2.438 m
max. standard boom
19 m
Carrying capacity
0.75 t
at max. reach
26.3 m
Weight
4.8 t
max. carrying capacity
9.04 t
at reach
4.8 m
Required power
68 kW
Model series
RCS

More technical details, like: load of additional jib, max. hook height are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No
