1430-L4  HMF 1430-L4  Specifications & Technical Data (2016—2021)

The HMF 1430-L4 is a truck-mounted loading crane manufactured by HMF from 2016 to 2021. It has a weight of 1.92 tons and a carryin…

The HMF 1430-L4 is a truck-mounted loading crane manufactured by HMF from 2016 to 2021. It has a weight of 1.92 tons and a carrying capacity of 0.74 tons. The required power is 40 kW, and the load torque is 120 kNm. It has a maximum carrying capacity of 2.15 tons and can reach a maximum distance of 13.9 meters. The crane's standard boom extends up to 14 meters. The machine itself has a length of 2.5 meters, a width of 0.772 meters, and a height of 2.5 meters. At a reach of 5.7 meters, it can still perform its functions.

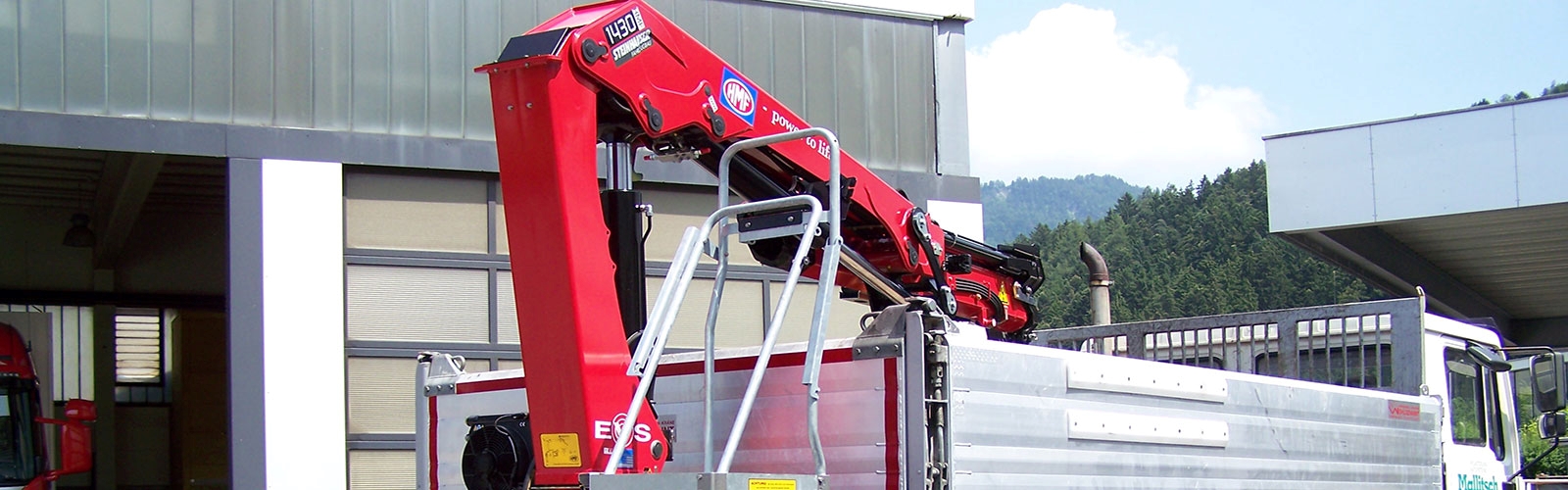

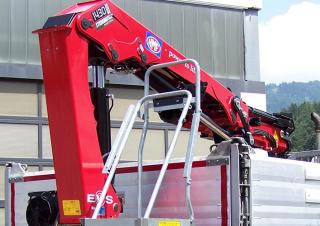

Hydraulic loading cranes HMF 1430-L4

Technical specs - 1430-L4  HMF

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
120 kNm
machine length
2.5 m
machine width
0.772 m
machine height
2.5 m
max. standard boom
14 m
Carrying capacity
0.74 t
at max. reach
13.9 m
Weight
1.92 t
max. carrying capacity
2.15 t
at reach
5.7 m
Required power
58 kW
Model series
L

More technical details, like: load of additional jib, max. hook height are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No
