Lifting
Flexible design

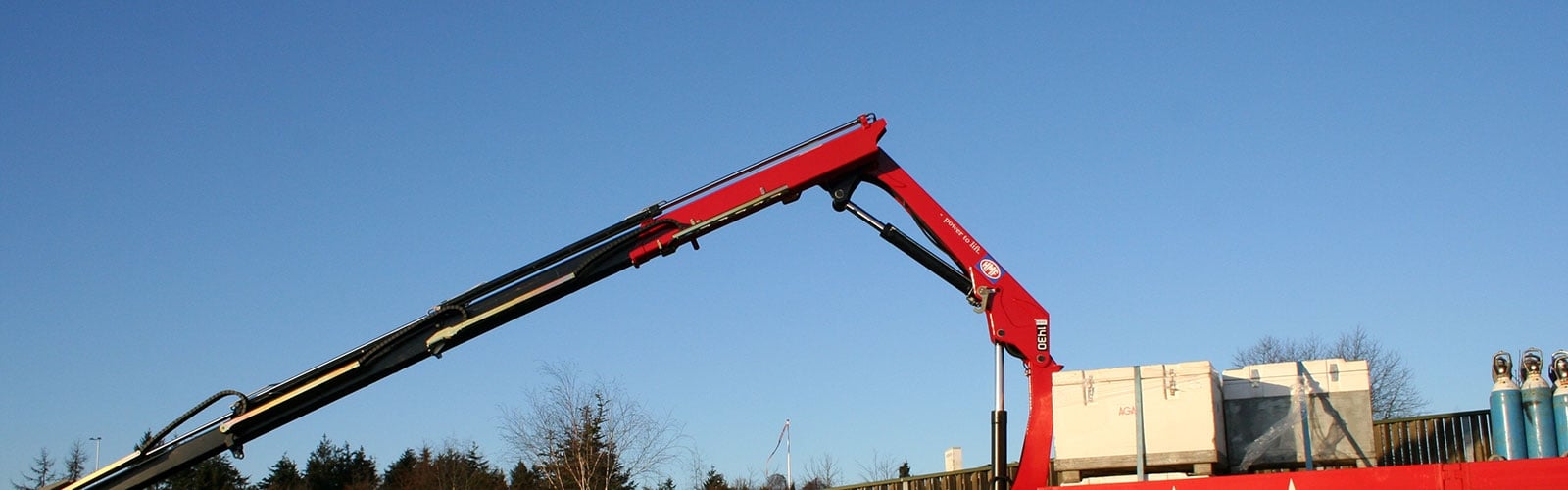

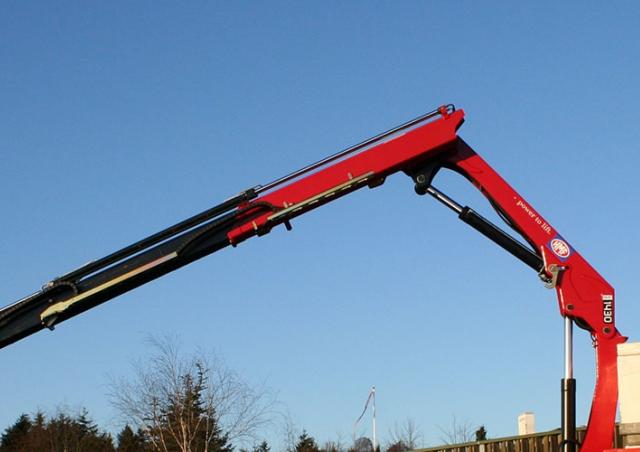

The HMF 1430-K Series is constructed as a strong and versatile working tool. The loader is available with 15° over-bending between the main boom and the jib, which provides high flexibility for demanding tasks in narrow places, e.g. through low gates and windows. The loader is equipped with a link arm on the jib, which provides high lifting capacity, even when the boom system is fully extended. The loader is suitable for fast grab work and for loading and unloading tasks at a low height far away from the vehicle. The 1430-K Series is equipped with a user-friendly speed control, which at the same time provides an increased lifting capacity. This system is activated when the load moment of the loader approaches its maximum capacity and therefore optimizes the operator’s ability to finely adjust the movements of the loader. Stabilizer beams are available either with fixed stabilizer legs, manual swing-up legs to 20° or hydraulic swing-up stabilizer legs up to 180°. This flexibility makes all kinds of mounting on the vehicle possible.
