1420-K5 HMF 1420-K5 Specifications & Technical Data (2008—2021)

The HMF 1420-K5 is a hydraulic loading crane manufactured by HMF from 2008 to 2021. It has a weight of 2.095 tons and a carrying c…

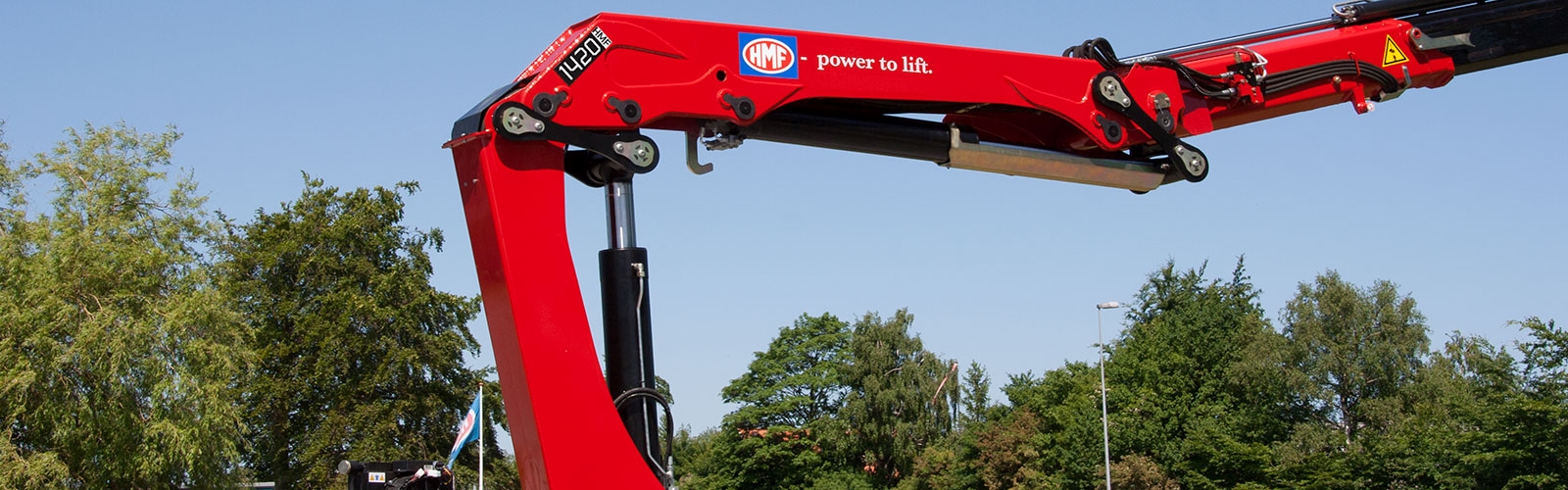

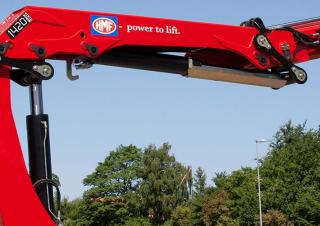

The HMF 1420-K5 is a hydraulic loading crane manufactured by HMF from 2008 to 2021. It has a weight of 2.095 tons and a carrying capacity of 0.58 tons. The required power for this crane is 25 kW, and it has a load torque of 116 kNm. The maximum carrying capacity is 2.59 tons, and it can reach a maximum reach of 14.9 meters. The crane's standard boom length is also 14.9 meters. The machine has a length of 2.5 meters, a width of 0.825 meters, and a height of 2.245 meters. At a reach of 4.6 meters, it is equipped with adjustable pivoting, electronic load torque limitation, and hydraulic brace support.

Hydraulic loading cranes HMF 1420-K5

Technical specs - 1420-K5 HMF

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
116 kNm
machine length
2.5 m
machine width
0.825 m
machine height
2.245 m
max. standard boom
14.9 m
Carrying capacity
0.58 t
at max. reach
14.9 m
Weight
2.095 t
max. carrying capacity
2.59 t
at reach
4.6 m
Required power
25 kW
Model series
K

More technical details, like: load of additional jib, max. hook height are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
Yes
Electronic load torque limitation
Yes
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
Yes
Articulated boom overstraining
No
