1320-KS1-RCS HMF 1320-KS1-RCS Specifications & Technical Data (2016—2026)

The HMF 1320-KS1 is a truck-mounted loading crane manufactured by HMF since 2016. It has a weight of 1.27 tons and a carrying capa…

The HMF 1320-KS1 is a truck-mounted loading crane manufactured by HMF since 2016. It has a weight of 1.27 tons and a carrying capacity of 2.35 tons. The required power is 40 kW, and the load torque is 121 kNm. It has a maximum carrying capacity of 3.26 tons and can reach a maximum distance of 5.3 meters. The crane's standard boom extends up to 5.3 meters. The machine itself has a length of 2.5 meters, a width of 0.747 meters, and a height of 2.135 meters. At a reach of 3.8 meters, it can still perform its functions.

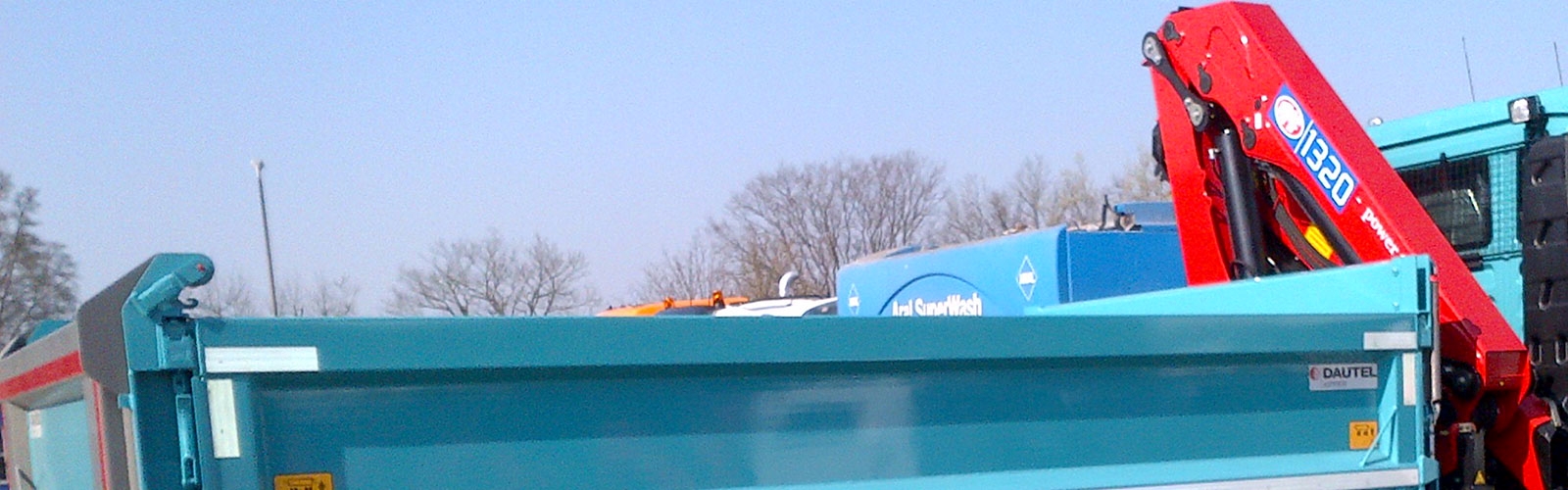

Hydraulic loading cranes HMF 1320-KS1-RCS

Technical specs - 1320-KS1-RCS HMF

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
121 kNm
machine length
2.5 m
machine width
0.747 m
machine height
2.135 m
max. standard boom
5.3 m
Carrying capacity
2.35 t
at max. reach
5.3 m
Weight
1.1 t
max. carrying capacity
3.26 t
at reach
3.8 m
Required power
58 kW
Model series
KS

More technical details, like: load of additional jib, max. hook height are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No

Download datasheets (PDF)

HMF 1320-KS1-RCS overview

Lifting

Short knuckle boom system (KS)

The short knuckle boom system (KS) is equipped with a shorter jib than a standard knuckle-boom system. Thanks to this system, the crane fitted with a grab can be stowed while extended in a platform body of 4 m without dismounting the grab. The lifting height close to the column is increased by more than 3 m, thus offering the possibility of lifting tall items close to the column. The boom system is available with 1, 2, or 3 hydraulic extensions.


Jib

Cross-over control

The lever sequence on manually operated cranes with ground control (JS) can be transferred via cross-over control rods to the opposite side of the crane. Thanks to cross-over controls, you obtain that the control lever sequence is the same on both sides of the crane, i.e. the sequence is from the left: "Slew", "boom", "jib" and "extension". The rods are made of particularly sturdy steel pipes for precise and efficient control of the movements.


Stand-up control

With stand-up control, the crane operator has an increased overview of the crane movements. Especially when loading and unloading the platform body with e.g. grab or pallet fork, the crane operator has the full view of both the platform body and the working area. The crane operator is protected by the HSL or HSL-E safety system which prevents the crane from hitting the operator on the stand-up platform.
