1300-K1 HMF 1300-K1 Specifications & Technical Data (2008—2019)

The HMF 1300-K1 is a truck-mounted loading crane manufactured by HMF from 2008 to 2019. It has a weight of 1.36 tons and a carryin…

The HMF 1300-K1 is a truck-mounted loading crane manufactured by HMF from 2008 to 2019. It has a weight of 1.36 tons and a carrying capacity of 1.95 tons. The load torque is 119 kNm, and it has a maximum reach of 6.2 meters. The crane has a maximum standard boom length of 6.2 meters. The machine itself has a length of 2.5 meters, a width of 0.825 meters, and a height of 2.25 meters. It is equipped with special features such as adjustable pivoting, electronic load torque limitation, and hydraulic brace support.

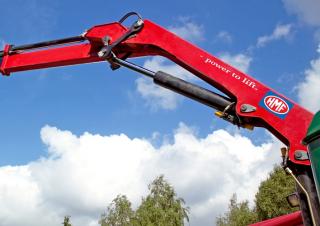

Hydraulic loading cranes HMF 1300-K1
Hydraulic loading cranes HMF 1300-K1
Hydraulic loading cranes HMF 1300-K1
Hydraulic loading cranes HMF 1300-K1

Technical specs - 1300-K1 HMF

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
119 kNm
machine length
2.5 m
machine width
0.825 m
machine height
2.25 m
max. standard boom
6.2 m
Carrying capacity
1.95 t
at max. reach
6.2 m
Weight
1.36 t
Model series
K

More technical details, like: load of additional jib, max. carrying capacity, at reach, max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
Yes
Electronic load torque limitation
Yes
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
Yes
Articulated boom overstraining
No
