    HMF 1230-K5 Specifications & Technical Data (2016-2021)

    Rate this machine now!

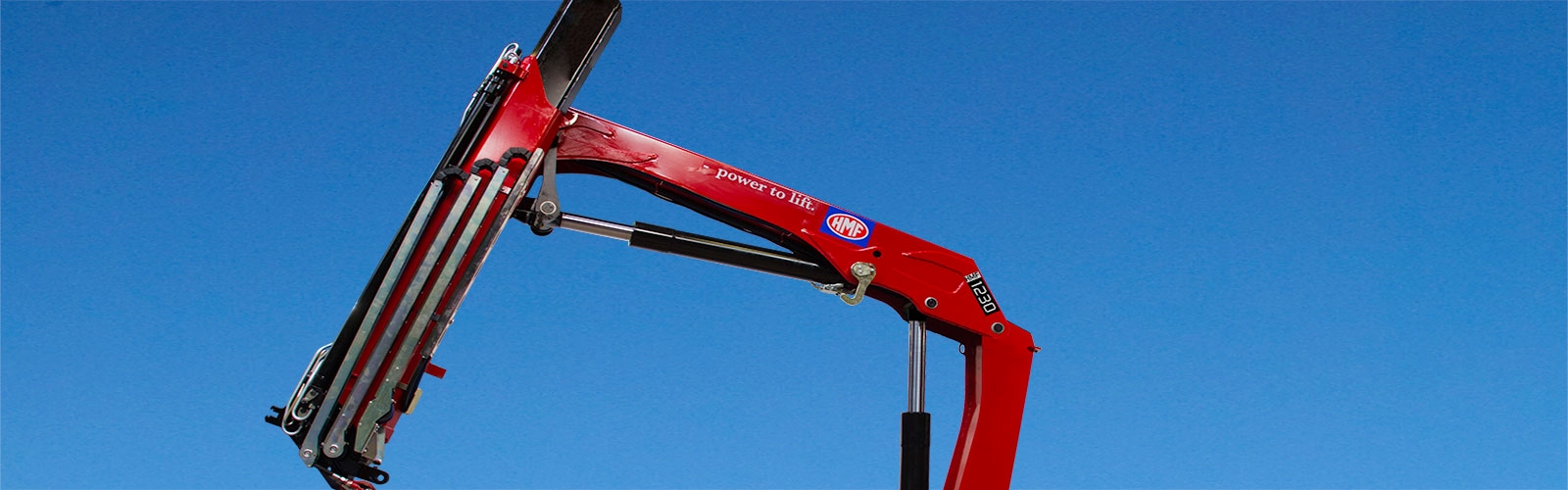

    Manufactured by HMF, this is the 1230-K5 hydraulic loading crane. Find and download detailed specs and data sheets for this machin... Read more

    Manufactured by HMF, this is the 1230-K5 hydraulic loading crane. Find and download detailed specs and data sheets for this machine here.

    This HMF Hydraulic Loading Crane belongs to the smallest machine segment in the hydraulic loading crane category. This model is 2.5m long and 0.747m wide. To be able to lift loads, the 1230-K5 crane is equipped with a 15m-long boom. The carrying capacity of this Hydraulic Loading Crane is 2.38t. HMF 1230-K5 has 104kNm in load torque.

    Remote control, High seat and Adjustable pivoting are not provided on this model as of 2018. Get the original HMF 1230-K5 datasheet for even more detailed specifications and machine details. Available in German, English, Spanish and French, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

    The production of the 1230-K5 is still going on.

    HMF currently produces 429 other hydraulic loading cranes, which range from 5kNm up to 756kNm - the most visited on LECTURA Specs are 6020-K6 , 340-K2 , 260-T2. This 1230-K5 hydraulic loading crane, which was produced between 2016 and 2018 ranks in the LECTURA index at #3166. Want more detailed specifications? Download the latest HMF 1230-K5 specs data sheet on LECTURA Specs today!

    Technical specs - 1230-K5 HMF

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Load Torque 104 kNm
    • machine length 2.5 m
    • machine width 0.747 m
    • machine height 2.135 m
    • max. standard boom 15 m
    • Carrying capacity 0.55 t
    • at max. reach 15 m
    • Weight 1.495 t
    • max. carrying capacity 2.38 t
    • at reach 4.4 m
    • Required power 20 kW
    • Load of additional Jib ###
    • max. hook height ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
