    Lectura specs Truck-mounted loading cranes Hydraulic loading cranes Hydraulic loading cranes HMF HMF 1230-K1 specifications

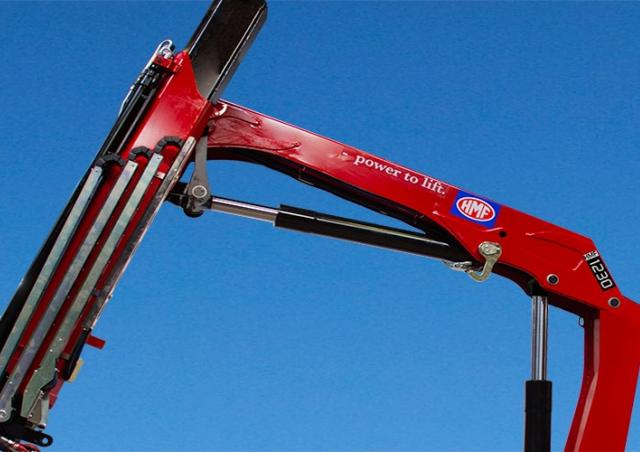

    HMF 1230-K1 Specifications & Technical Data (2016-2021)

    Rate this machine now!

    Manufactured by HMF, this is the 1230-K1 hydraulic loading crane. Find and download detailed specs and data sheets for this machin... Read more

    Manufactured by HMF, this is the 1230-K1 hydraulic loading crane. Find and download detailed specs and data sheets for this machine here.

    The HMF 1230-K1 can be grouped in the smallest machine segment in the hydraulic loading crane category. Dimensions of 1230-K1 model are 2.5m length and 0.747m width. To be able to lift loads, the 1230-K1 crane is equipped with a 6.1m-long boom. The 1230-K1 Hydraulic Loading Crane has a maximum capacity of 2.87t. The load torque of this model is 117kNm.

    It has been sold without High seat, Endless pivoting and Remote control as of 2018. Find detailed specifications and machine details in the original HMF 1230-K1 datasheet. You can download it for free in English, French, German and Spanish on LECTURA Specs.

    To this day, this machine is still being manufactured.

    The most commonly viewed HMF models of this type on LECTURA Specs are the 6020-K6 , 340-K2 and 260-T2, and 429 other hydraulic loading cranes are currently available, ranging from 5kNm up to 756kNm. Having been in production from 2016 to 2018, the 1230-K1 hydraulic loading crane ranks in the LECTURA index at #3164. Want more detailed specifications? Download the latest HMF 1230-K1 specs data sheet on LECTURA Specs today!

    Technical specs - 1230-K1 HMF

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Load Torque 117 kNm
    • machine length 2.5 m
    • machine width 0.747 m
    • machine height 2.135 m
    • max. standard boom 6.1 m
    • Carrying capacity 1.99 t
    • at max. reach 6.1 m
    • Weight 1.08 t
    • max. carrying capacity 2.87 t
    • at reach 4.1 m
    • Required power 20 kW
    • Load of additional Jib ###
    • max. hook height ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
