    HMF 1220-K4 Specifications & Technical Data (2016-2021)

    Rate this machine now!

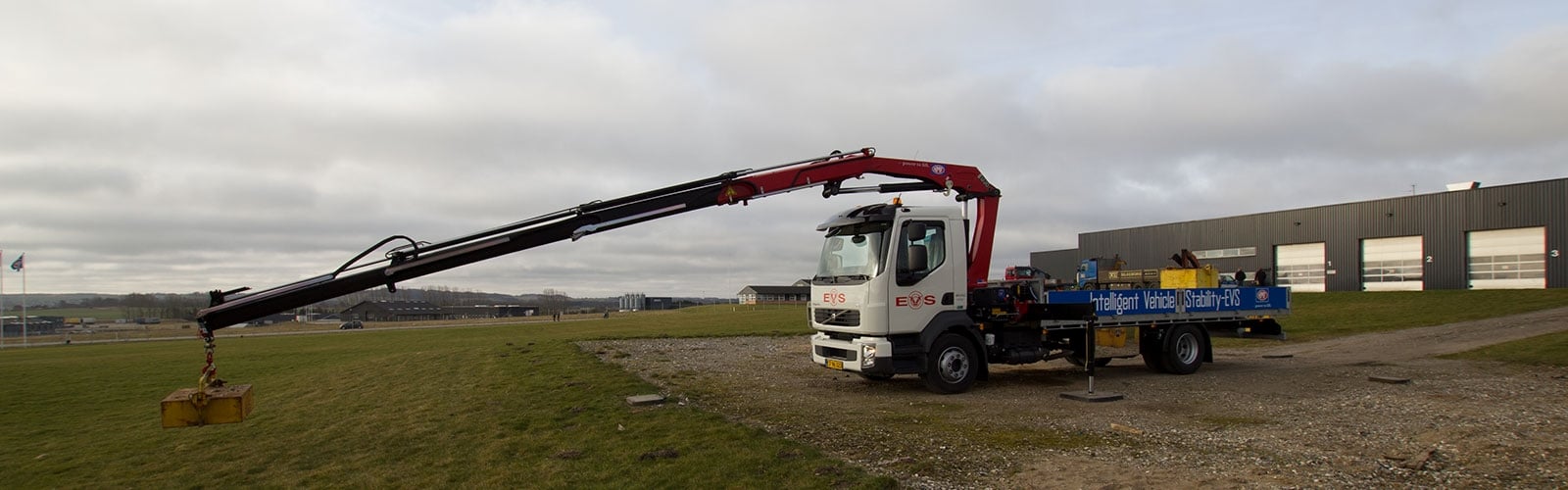

    Manufactured by HMF, this is the 1220-K4 hydraulic loading crane. Find and download detailed specs and data sheets for this machin... Read more

    Manufactured by HMF, this is the 1220-K4 hydraulic loading crane. Find and download detailed specs and data sheets for this machine here.

    The HMF 1220-K4 can be grouped in the smallest machine segment in the hydraulic loading crane category. The measurements of this hydraulic loading crane are 2.5m x 0.747m. The max. Standard boom of this HMF model is 12.7m. The carrying capacity of this Hydraulic Loading Crane is 2.44t. The load torque of this model is 105kNm.

    It does not include Endless pivoting, Articulated boom overstraining and Hydr. Brace support. Find detailed specifications and machine details in the original HMF 1220-K4 datasheet. Available in French, German, Spanish and English, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

    To this day, this machine is still being manufactured.

    HMF currently produces 429 other hydraulic loading cranes, which range from 5kNm up to 756kNm - the most visited on LECTURA Specs are 6020-K6 , 260-T2, 340-K2 . Having been in production from 2016 to 2018, the 1220-K4 hydraulic loading crane ranks in the LECTURA index at #2992. Want more detailed specifications? Download the latest HMF 1220-K4 specs data sheet on LECTURA Specs today!

    Technical specs - 1220-K4 HMF

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Load Torque 105 kNm
    • machine length 2.5 m
    • machine width 0.747 m
    • machine height 2.135 m
    • max. standard boom 12.7 m
    • Carrying capacity 0.72 t
    • at max. reach 12.7 m
    • Weight 1.445 t
    • max. carrying capacity 2.44 t
    • at reach 4.4 m
    • Required power 22-38 kW
    • Load of additional Jib ###
    • max. hook height ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
