    HMF 1220-K1 Specifications & Technical Data (2016-2021)

    Rate this machine now!

    HMF is the manufacturer of the hydraulic loading crane model 1220-K1. Find and download detailed specs and data sheets for this ma... Read more

    HMF is the manufacturer of the hydraulic loading crane model 1220-K1. Find and download detailed specs and data sheets for this machine here.

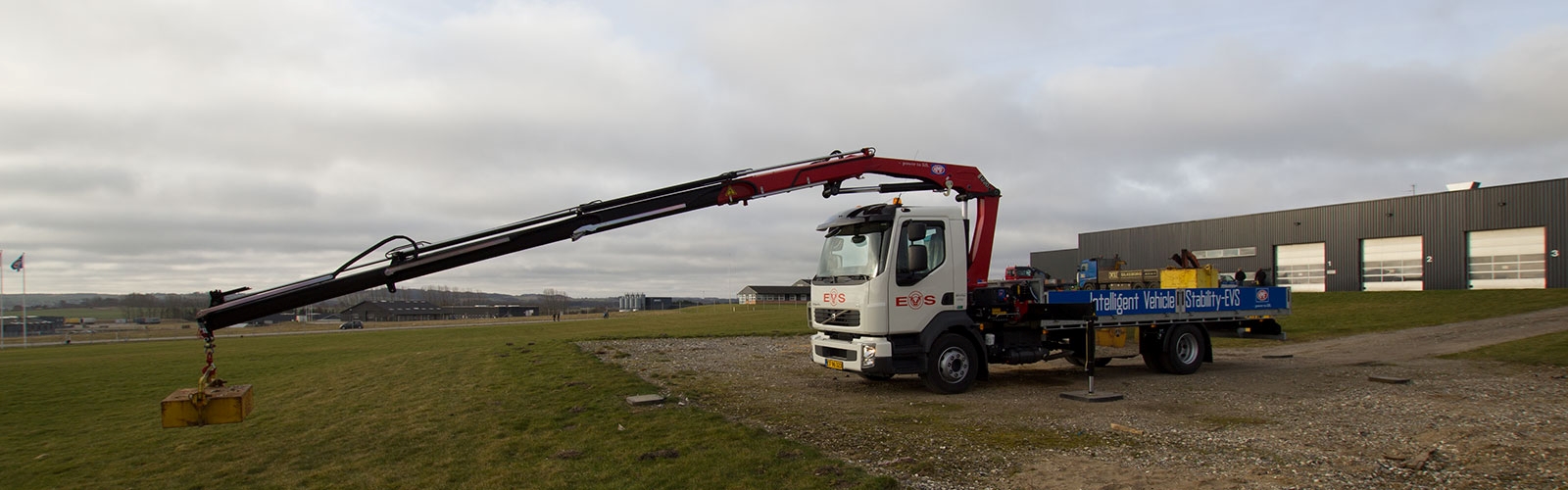

    The 1220-K1 is categorised in the smallest machine segment in the hydraulic loading crane category. The measurements of this hydraulic loading crane are 2.5m x 0.747m. The max. Standard boom of this HMF model is 6.1m. The HMF 1220-K1 can carry up to 2.83t. The stated load torque of the HMF 1220-K1 is 115kNm.

    It has been sold without Remote control, Endless pivoting and Electronic load torque limitation as of 2018. Get the original HMF 1220-K1 datasheet for even more detailed specifications and machine details. Available in German, English, Spanish and French, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

    The production of the 1220-K1 is still going on.

    HMF currently produces 429 other hydraulic loading cranes, which range from 5kNm up to 756kNm - the most visited on LECTURA Specs are 260-T2, 340-K2 , 6020-K6 . Ranked in the LECTURA index at #3548, this 1220-K1 hydraulic loading crane has models that date from 2016 to 2018. Want more detailed specifications? Download the latest HMF 1220-K1 specs data sheet on LECTURA Specs today!

    Technical specs - 1220-K1 HMF

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Load Torque 115 kNm
    • machine length 2.5 m
    • machine width 0.747 m
    • machine height 2.135 m
    • max. standard boom 6.1 m
    • Carrying capacity 1.96 t
    • at max. reach 6.1 m
    • Weight 1.115 t
    • max. carrying capacity 2.83 t
    • at reach 4.1 m
    • Required power 22-38 kW
    • Load of additional Jib ###
    • max. hook height ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
