    HMF 1100-K1 Specifications & Technical Data (2017-2019)

    Rate this machine now!

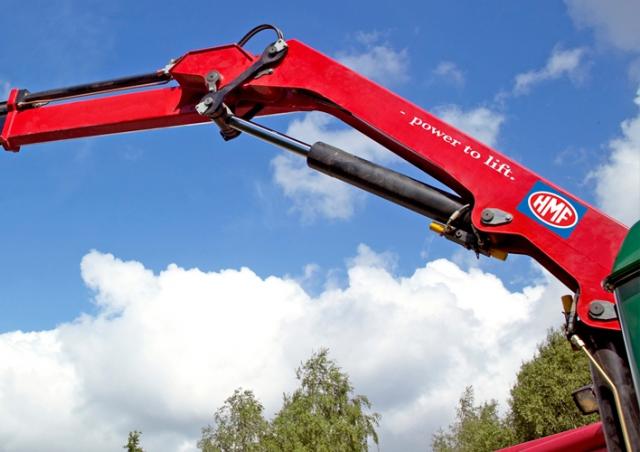

    Manufactured by HMF, this is the 1100-K1 hydraulic loading crane. Find and download detailed specs and data sheets for this machin... Read more

    Manufactured by HMF, this is the 1100-K1 hydraulic loading crane. Find and download detailed specs and data sheets for this machine here.

    This HMF Hydraulic Loading Crane belongs to the smallest machine segment in the hydraulic loading crane category. This model is 2.5m long and 0.747m wide. The main boom in its maximum length measures 6.1m. This model is constructed to deliever a load torque of 104kNm.

    Endless pivoting, Adjustable pivoting and Hydr. Brace support are not provided on this model as of 2018. Get the original HMF 1100-K1 datasheet for even more detailed specifications and machine details. You can download it for free in German, Spanish, French and English on LECTURA Specs.

    Manufacturing of this model is still ongoing.

    HMF currently produces 429 other hydraulic loading cranes, which range from 5kNm up to 756kNm - the most visited on LECTURA Specs are 340-K2 , 260-T2, 6020-K6 . This 1100-K1 hydraulic loading crane, which was produced between 2017 and 2018 ranks in the LECTURA index at #3162. Want more detailed specifications? Download the latest HMF 1100-K1 specs data sheet on LECTURA Specs today!

    Technical specs - 1100-K1 HMF

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Load Torque 104 kNm
    • machine length 2.5 m
    • machine width 0.747 m
    • machine height 2.135 m
    • max. standard boom 6.1 m
    • Carrying capacity 1.76 t
    • at max. reach 6 m
    • Weight 1.105 t
    • Load of additional Jib ###
    • max. carrying capacity ###
    • at reach ###
    • max. hook height ###
    • Required power ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
