    HMF 1020-K5 Specifications & Technical Data (2017-2021)

    Rate this machine now!

    HMF is the manufacturer of the hydraulic loading crane model 1020-K5. Find and download detailed specs and data sheets for this ma... Read more

    HMF is the manufacturer of the hydraulic loading crane model 1020-K5. Find and download detailed specs and data sheets for this machine here.

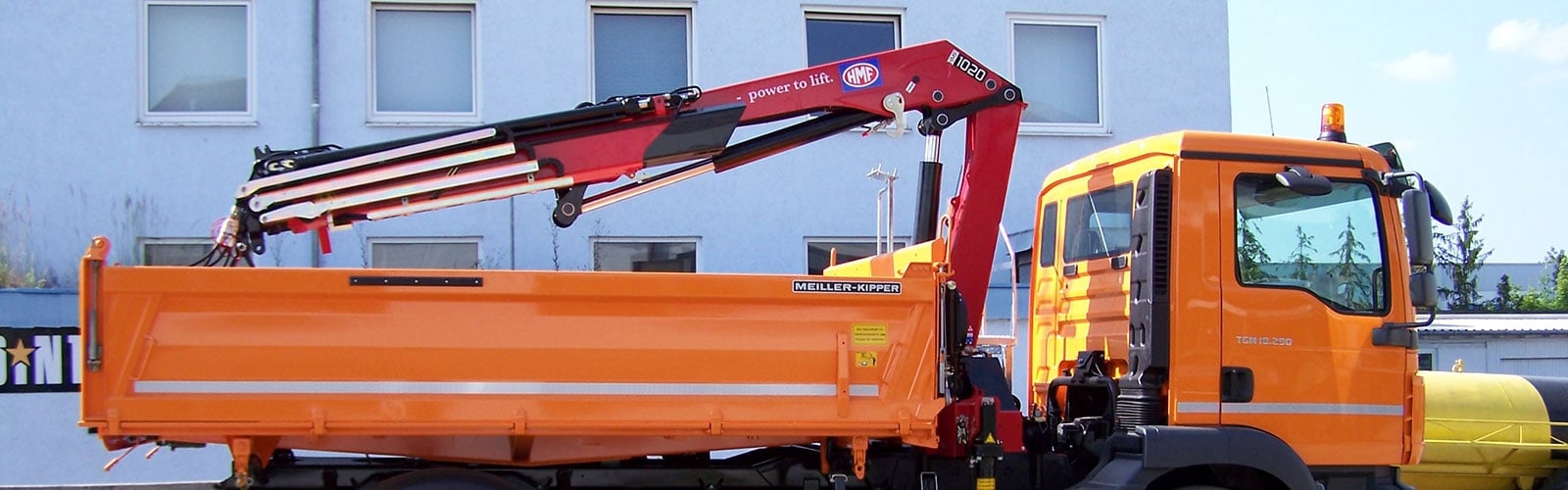

    The 1020-K5 is categorised in the smallest machine segment in the hydraulic loading crane category. This model is 2.35m long and 0.747m wide. The 1020-K5 crane is equipped with a standard boom that is 14m long. The 1020-K5 Hydraulic Loading Crane has a maximum capacity of 2.11t. This model is constructed to deliever a load torque of 85kNm.

    It does not include High seat, Adjustable pivoting and Hydr. Brace support. More detailed specifications and machine descriptions can be found in the original HMF 1020-K5 specs data sheet. Specification sheet is available for a free download in French, English, Spanish and German - providing the machine descriptions and more detailed specs about this particular model.

    Manufacturing of this model is still ongoing.

    At present, 429 other hydraulic loading cranes, which range from 5kNm up to 756kNm are produced by HMF. Of these, 340-K2 , 6020-K6 and also 260-T2 are the most frequently visited on LECTURA Specs. Having been in production from 2017 to 2018, the 1020-K5 hydraulic loading crane ranks in the LECTURA index at #2875. Want more detailed specifications? Download the latest HMF 1020-K5 specs data sheet on LECTURA Specs today!

    Technical specs - 1020-K5 HMF

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Load Torque 85 kNm
    • machine length 2.35 m
    • machine width 0.747 m
    • machine height 2.135 m
    • max. standard boom 14 m
    • Carrying capacity 0.48 t
    • at max. reach 14 m
    • Weight 1.385 t
    • max. carrying capacity 2.11 t
    • at reach 4.1 m
    • Required power 22 kW
    • Load of additional Jib ###
    • max. hook height ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
