    HMF 1020-K1 Specifications & Technical Data (2017-2021)

    Rate this machine now!

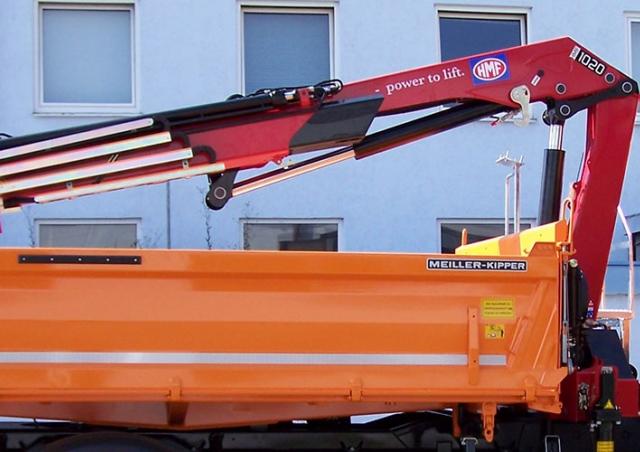

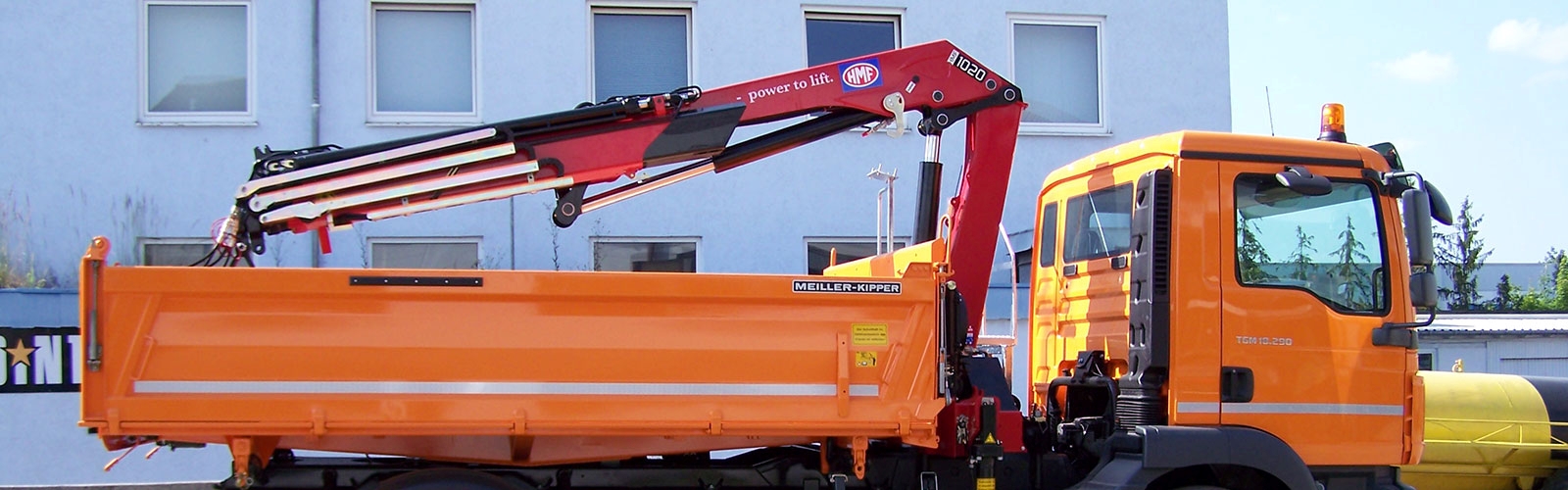

    Manufactured by HMF, this is the 1020-K1 hydraulic loading crane. Find and download detailed specs and data sheets for this machin... Read more

    Manufactured by HMF, this is the 1020-K1 hydraulic loading crane. Find and download detailed specs and data sheets for this machine here.

    The HMF 1020-K1 can be grouped in the smallest machine segment in the hydraulic loading crane category. Dimensions of 1020-K1 model are 2.35m length and 0.747m width. 5.5m is the maximum length of the standard boom for the 1020-K1 crane. 2.56t is the maximum carrying capacity of this HMF 1020-K1 crane, according to its specification. The manufacturer's datasheet guarantees 95kNm in load torque.

    It has been sold without Remote control, Endless pivoting and Electronic load torque limitation as of 2018. Find detailed specifications and machine details in the original HMF 1020-K1 datasheet. Specification sheet is available for a free download in Spanish, German, French and English - providing the machine descriptions and more detailed specs about this particular model.

    To this day, this machine is still being manufactured.

    The most commonly viewed HMF models of this type on LECTURA Specs are the 260-T2, 340-K2 and 6020-K6 , and 429 other hydraulic loading cranes are currently available, ranging from 5kNm up to 756kNm. Ranked in the LECTURA index at #3321, this 1020-K1 hydraulic loading crane has models that date from 2017 to 2018. Want more detailed specifications? Download the latest HMF 1020-K1 specs data sheet on LECTURA Specs today!

    Technical specs - 1020-K1 HMF

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Load Torque 95 kNm
    • machine length 2.35 m
    • machine width 0.747 m
    • machine height 2.135 m
    • max. standard boom 5.5 m
    • Carrying capacity 1.79 t
    • at max. reach 5.5 m
    • Weight 1.01 t
    • max. carrying capacity 2.56 t
    • at reach 3.8 m
    • Required power 22 kW
    • Load of additional Jib ###
    • max. hook height ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
