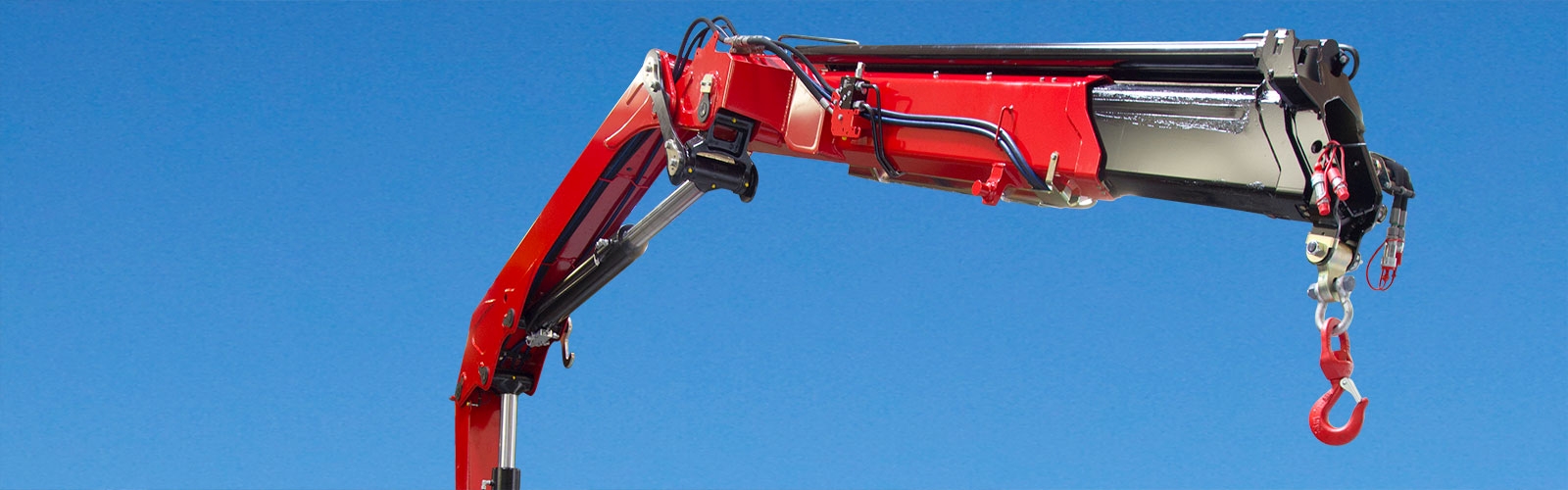

    HMF 1010-K4 Specifications & Technical Data (2017-2021)

    Rate this machine now!

    The 1010-K4 hydraulic loading crane model is manufactured by HMF. Find and download detailed specs and data sheets for this machin... Read more

    The 1010-K4 hydraulic loading crane model is manufactured by HMF. Find and download detailed specs and data sheets for this machine here.

    This HMF Hydraulic Loading Crane belongs to the smallest machine segment in the hydraulic loading crane category. This model is 2.35m long and 0.747m wide. The max. Standard boom of this HMF model is 11.8m. 2.29t is the maximum carrying capacity of this HMF 1010-K4 crane, according to its specification. HMF 1010-K4 has 90kNm in load torque.

    Articulated boom overstraining, High seat and Remote control are not provided on this model as of 2018. Find detailed specifications and machine details in the original HMF 1010-K4 datasheet. You can download it for free in German, French, English and Spanish on LECTURA Specs.

    To this day, this machine is still being manufactured.

    The most commonly viewed HMF models of this type on LECTURA Specs are the 260-T2, 340-K2 and 6020-K6 , and 429 other hydraulic loading cranes are currently available, ranging from 5kNm up to 756kNm. Having been in production from 2017 to 2018, the 1010-K4 hydraulic loading crane ranks in the LECTURA index at #3547. Want more detailed specifications? Download the latest HMF 1010-K4 specs data sheet on LECTURA Specs today!

    Technical specs - 1010-K4 HMF

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Load Torque 90 kNm
    • machine length 2.35 m
    • machine width 0.747 m
    • machine height 2.135 m
    • max. standard boom 11.8 m
    • Carrying capacity 0.67 t
    • at max. reach 11.8 m
    • Weight 1.28 t
    • max. carrying capacity 2.29 t
    • at reach 4 m
    • Required power 22-38 kW
    • Load of additional Jib ###
    • max. hook height ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
