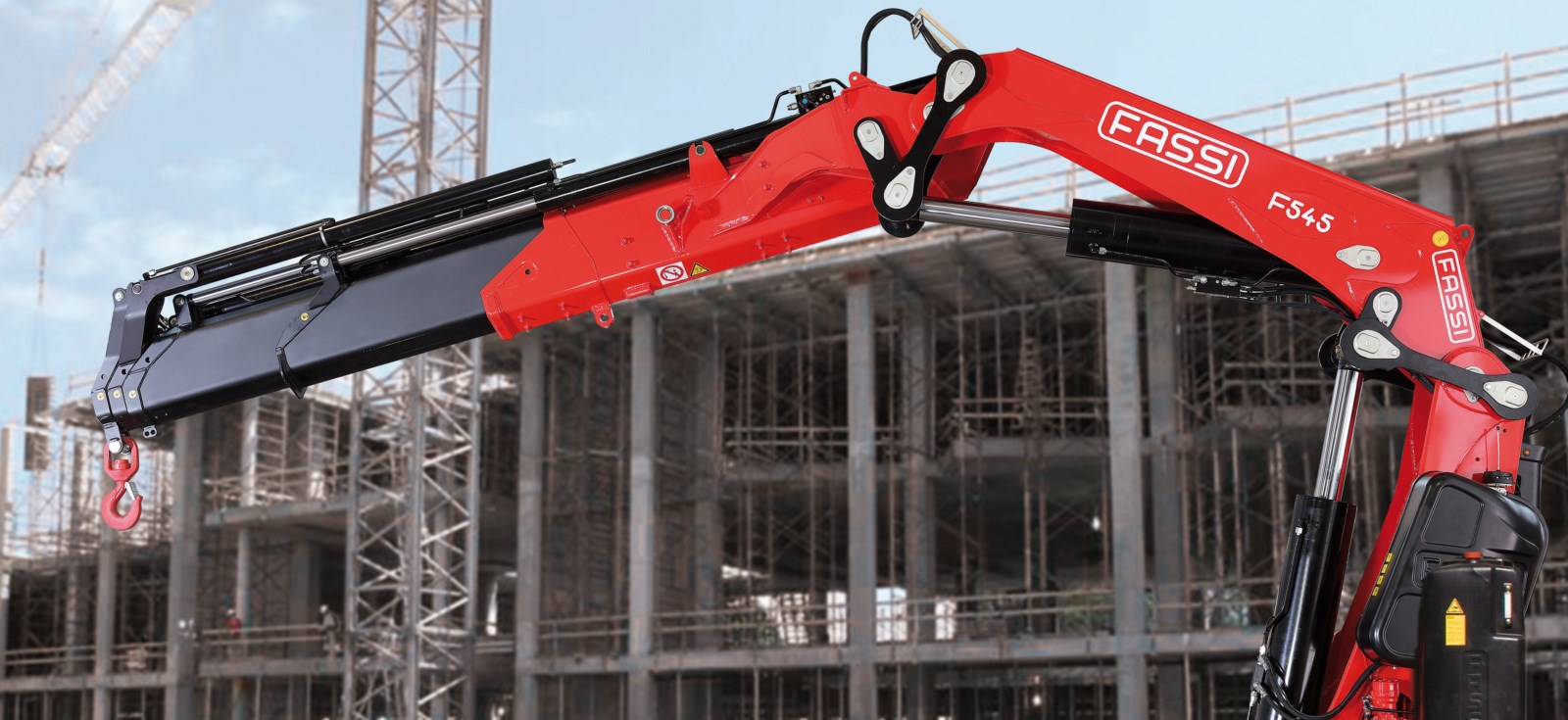

    Fassi F 545 RA 2.23 xe-dynamic Specifications & Technical Data (2016-2021)

    Rate this machine now!

    Fassi is the manufacturer of the hydraulic loading crane model F 545 RA 2.23 xe-dynamic. Find and download detailed specs and data... Read more

    Fassi is the manufacturer of the hydraulic loading crane model F 545 RA 2.23 xe-dynamic. Find and download detailed specs and data sheets for this machine here.

    The Fassi F 545 RA 2.23 xe-dynamic can be grouped in the biggest machine segment in the hydraulic loading crane category. The measurements of this hydraulic loading crane are 2.48m x 1.485m. The max. Standard boom of this Fassi model is 9.9m. The load torque of this model is 488kNm.

    The Fassi F 545 RA 2.23 xe-dynamic has been equipped and sold with Remote control, Endless pivoting and Hydr. Brace support. Adjustable pivoting and High seat are not provided on this model as of 2018. Find detailed specifications and machine details in the original Fassi F 545 RA 2.23 xe-dynamic datasheet. Specification sheet is available for a free download in English, Dutch, Italian, German, Spanish and French - providing the machine descriptions and more detailed specs about this particular model.

    This model can be acquired for a list price between €138,000 and €176,000. Production of the F 545 RA 2.23 xe-dynamic in 2018. This machine is still being manufactured by Fassi and is offered with a list price between €138,000 and €176,000.

    Comparisons of the F 545 RA 2.23 xe-dynamic Fassi with other hydraulic loading cranes models reveal that, based on specifications and pricing, the model is similar to the HMF Odin OK 5, HMF Odin OK 6 as well as COPMA 2000 610.6 J 3 HSE. At present, 1051 other hydraulic loading cranes, which range from 10.9kNm up to 1950kNm are produced by Fassi. Of these, F 545 RA 2.22 xe-dynamic, F 1950 RA 2.28 he-dynamic and also F 990 RA 2.24 xhe-dynamic are the most frequently visited on LECTURA Specs. This F 545 RA 2.23 xe-dynamic hydraulic loading crane, which was produced between 2016 and 2018 ranks in the LECTURA index at #869. Want more detailed specifications? Download the latest Fassi F 545 RA 2.23 xe-dynamic specs data sheet on LECTURA Specs today!

    Technical specs - F 545 RA 2.23 xe-dynamic Fassi

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Load Torque 488 kNm
    • machine length 2.48 m
    • machine width 1.485 m
    • machine height 2.5 m
    • max. standard boom 9.9 m
    • Carrying capacity 2.4 t
    • at max. reach 16.6 m
    • Weight 4.6 t
    • max. carrying capacity 16 t
    • at reach 2.9 m
    • Load of additional Jib ###
    • max. hook height ###
    • Required power ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
