    Fassi F 515 RA 2.26 e-dynamic Specifications & Technical Data (2017-2021)

    Rate this machine now!

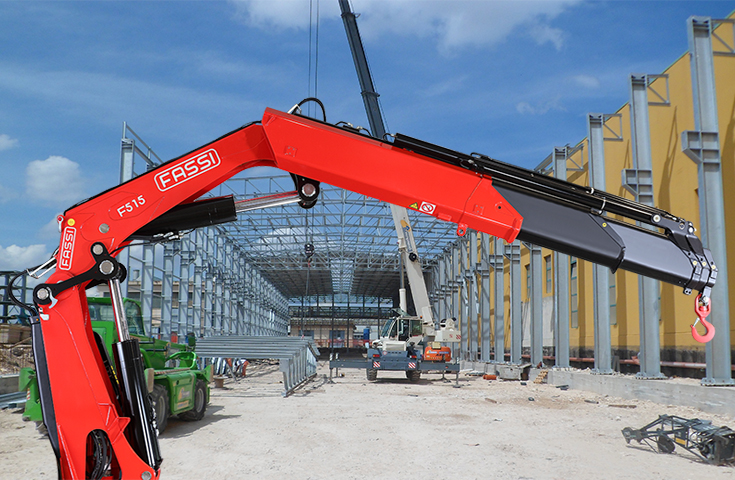

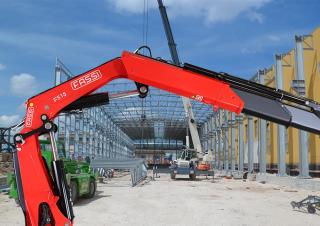

    Manufactured by Fassi, this is the F 515 RA 2.26 e-dynamic hydraulic loading crane. Find and download detailed specs and data shee... Read more

    Manufactured by Fassi, this is the F 515 RA 2.26 e-dynamic hydraulic loading crane. Find and download detailed specs and data sheets for this machine here.

    This Fassi Hydraulic Loading Crane belongs to the biggest machine segment in the hydraulic loading crane category. Dimensions of F 515 RA 2.26 e-dynamic model are 2.48m length and 1.485m width. The F 515 RA 2.26 e-dynamic crane is equipped with a standard boom that is 16.3m long. The load torque of this model is 438kNm.

    Since 2017, this model has included Endless pivoting, Remote control and Articulated boom overstraining. It does not include Adjustable pivoting, High seat and Electronic load torque limitation. More detailed specifications and machine descriptions can be found in the original Fassi F 515 RA 2.26 e-dynamic specs data sheet. Specification sheet is available for a free download in German, Italian, Dutch, English, Spanish and French - providing the machine descriptions and more detailed specs about this particular model.

    The newest version of this F 515 RA 2.26 e-dynamic model is priced between €151,000 and €193,000, with the production of this model in 2018. As of 2018 the F 515 RA 2.26 e-dynamic is still produced, with a list price between €151,000 and €193,000.

    Comparisons of the F 515 RA 2.26 e-dynamic Fassi with other hydraulic loading cranes models reveal that, based on specifications and pricing, the model is similar to the Hiab X-HiPro 548 E-8, Hiab XS 544 E-9 HIPRO as well as Amco Veba 946-6 S Jib 4. At present, 1051 other hydraulic loading cranes, which range from 10.9kNm up to 1950kNm are produced by Fassi. Of these, F 990 RA 2.24 xhe-dynamic, F 545 RA 2.22 xe-dynamic and also F 1950 RA 2.28 he-dynamic are the most frequently visited on LECTURA Specs. This F 515 RA 2.26 e-dynamic hydraulic loading crane, which was produced between 2017 and 2018 ranks in the LECTURA index at #1028. Want more detailed specifications? Download the latest Fassi F 515 RA 2.26 e-dynamic specs data sheet on LECTURA Specs today!

    Technical specs - F 515 RA 2.26 e-dynamic Fassi

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Load Torque 438 kNm
    • machine length 2.48 m
    • machine width 1.485 m
    • machine height 2.5 m
    • max. standard boom 16.3 m
    • Carrying capacity 0.8 t
    • at max. reach 23.5 m
    • Weight 5.35 t
    • max. carrying capacity 15.5 t
    • at reach 2.65 m
    • Load of additional Jib ###
    • max. hook height ###
    • Required power ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
