F 275 A 2.25 e-dynamic Fassi F 275 A 2.25 e-dynamic Specifications & Technical Data (2013—2026)

The Fassi F 275 A 2.25 e-dynamic is a truck-mounted loading crane manufactured by Fassi since 2013. It has a weight of 3.35 tons a…

The Fassi F 275 A 2.25 e-dynamic is a truck-mounted loading crane manufactured by Fassi since 2013. It has a weight of 3.35 tons and a carrying capacity of 0.695 tons. The load torque is 230 kNm, and it has a maximum carrying capacity of 8 tons. At its maximum reach of 21.35 meters, it can lift heavy loads. The crane has a maximum standard boom length of 14.55 meters. The machine itself has a length of 2.515 meters, a width of 1.105 meters, and a height of 2.4 meters. At a reach of 2.75 meters, it can still perform its functions. It is equipped with special features such as an articulated boom overstraining, electronic load torque limitation, hydraulic brace support, and a remote control.

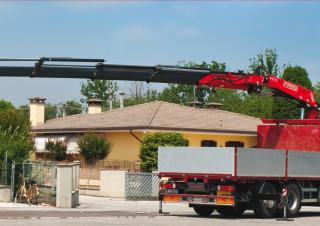

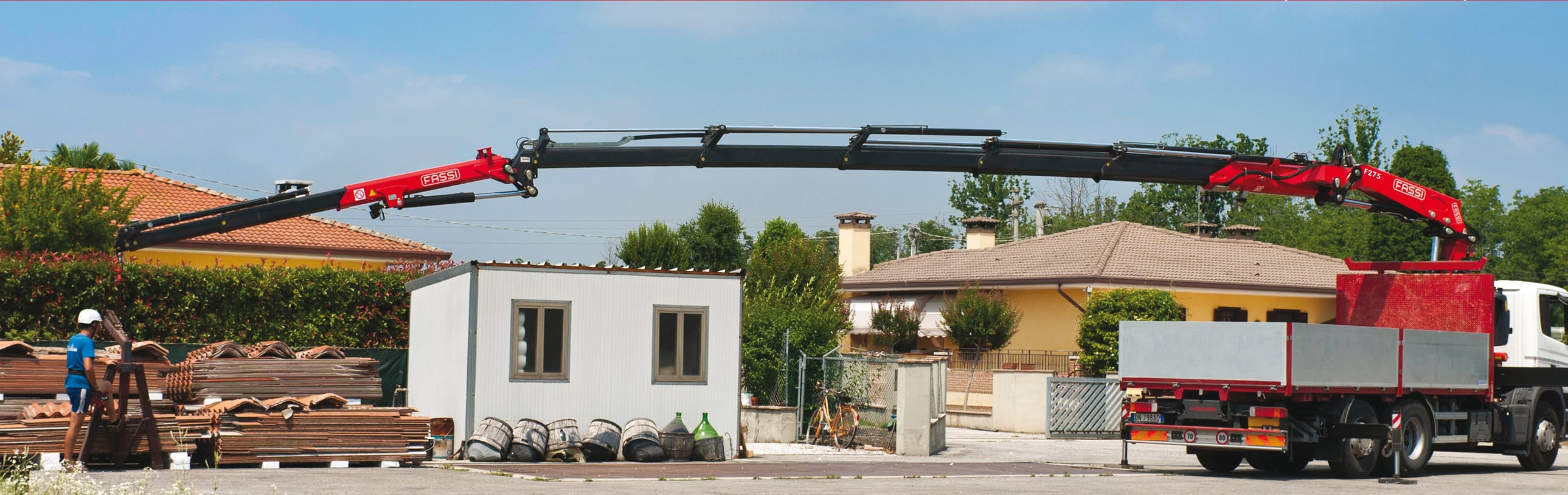

Hydraulic loading cranes Fassi F 275 A 2.25 e-dynamic
Hydraulic loading cranes Fassi F 275 A 2.25 e-dynamic
Hydraulic loading cranes Fassi F 275 A 2.25 e-dynamic
Hydraulic loading cranes Fassi F 275 A 2.25 e-dynamic
Hydraulic loading cranes Fassi F 275 A 2.25 e-dynamic
Hydraulic loading cranes Fassi F 275 A 2.25 e-dynamic

Technical specs - F 275 A 2.25 e-dynamic Fassi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
230 kNm
machine length
2.515 m
machine width
1.105 m
machine height
2.4 m
max. standard boom
14.55 m
Carrying capacity
0.695 t
at max. reach
21.35 m
Weight
3.35 t
max. carrying capacity
8 t
at reach
2.75 m
Model series
A

More technical details, like: load of additional jib, max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
Yes
Electronic load torque limitation
Yes
Endless pivoting
No
High seat
No
Remote control
Yes
Adjustable pivoting
No
Articulated boom overstraining
Yes
