Fassi F 245 A 2.22 e-dynamic Specifications & Technical Data (2012-2025)

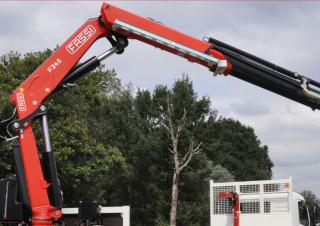

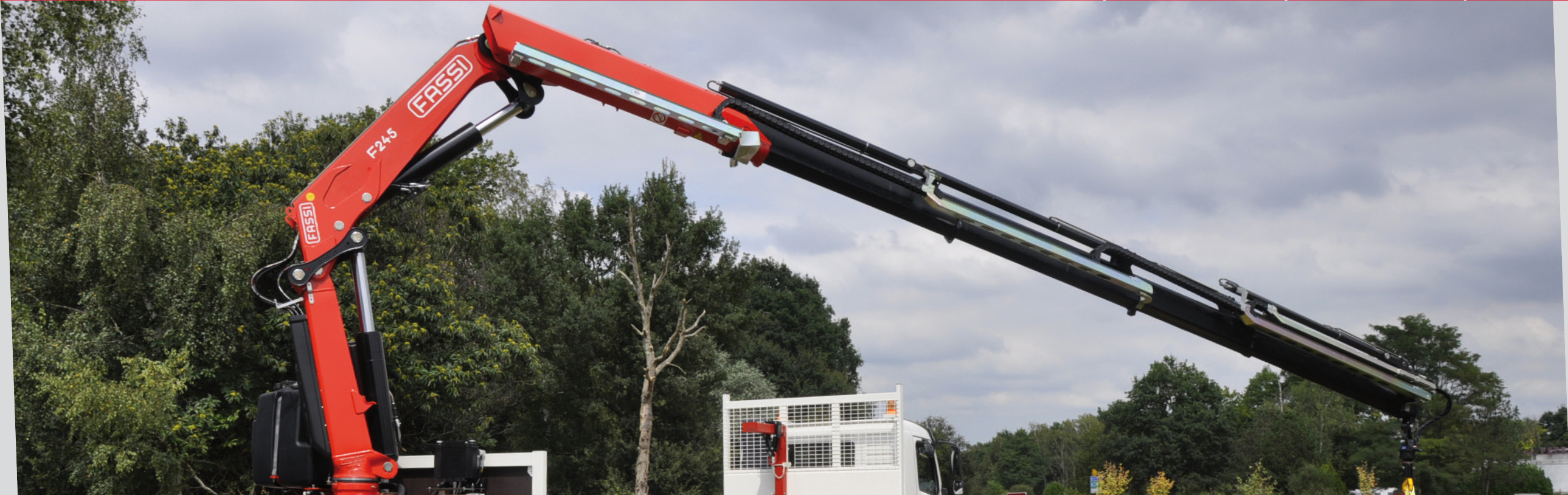

The Fassi F 245 A 2.22 e-dynamic is a truck-mounted loading crane manufactured by Fassi since 2012. It has a weight of 2.75 tons a…

The Fassi F 245 A 2.22 e-dynamic is a truck-mounted loading crane manufactured by Fassi since 2012. It has a weight of 2.75 tons and a carrying capacity of 1.7 tons. The load torque is 229 kNm, and it has a maximum carrying capacity of 8 tons. At its maximum reach of 12.35 meters, it can lift loads. The crane has a maximum standard boom length of 8.1 meters. The machine itself has a length of 2.515 meters, a width of 1.05 meters, and a height of 2.4 meters. At a reach of 2.7 meters, it is equipped with special features such as an articulated boom overstraining, electronic load torque limitation, hydraulic brace support, and remote control.

Technical specs - F 245 A 2.22 e-dynamic Fassi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
229 kNm
machine length
2.515 m
machine width
1.05 m
machine height
2.4 m
max. standard boom
8.1 m
Carrying capacity
1.7 t
at max. reach
12.35 m
Weight
2.75 t
max. carrying capacity
8 t
at reach
2.7 m
Model series
A

More technical details, like: load of additional jib, max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
Yes
Electronic load torque limitation
Yes
Endless pivoting
No
High seat
No
Remote control
Yes
Adjustable pivoting
No
Articulated boom overstraining
Yes
