F 120 B 0.23 e-active Fassi F 120 B 0.23 e-active Specifications & Technical Data (2014—2026)

The Fassi F 120 B 0.23 e-active is a hydraulic loading crane manufactured by Fassi since 2014. It has a weight of 1.325 tons and a…

The Fassi F 120 B 0.23 e-active is a hydraulic loading crane manufactured by Fassi since 2014. It has a weight of 1.325 tons and a carrying capacity of 0.94 tons. With a load torque of 101 kNm, it can reach a maximum distance of 9.65 meters. The crane's maximum standard boom length is 9.9 meters. The machine itself has a length of 2.35 meters, a width of 0.75 meters, and a height of 2.2 meters. It is equipped with adjustable pivoting, electronic load torque limitation, hydraulic brace support, and a remote control.

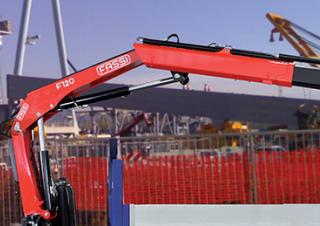

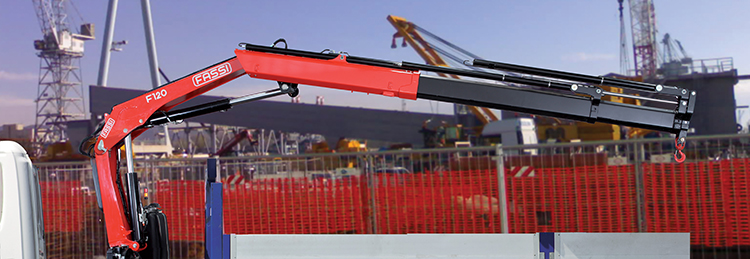

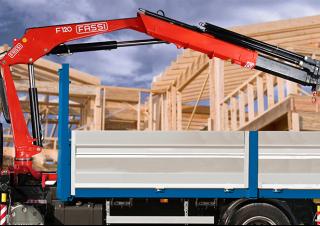

Hydraulic loading cranes Fassi F 120 B 0.23 e-active
Hydraulic loading cranes Fassi F 120 B 0.23 e-active
Hydraulic loading cranes Fassi F 120 B 0.23 e-active
Hydraulic loading cranes Fassi F 120 B 0.23 e-active
Hydraulic loading cranes Fassi F 120 B 0.23 e-active
Hydraulic loading cranes Fassi F 120 B 0.23 e-active
Hydraulic loading cranes Fassi F 120 B 0.23 e-active
Hydraulic loading cranes Fassi F 120 B 0.23 e-active

Technical specs - F 120 B 0.23 e-active Fassi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
101 kNm
machine length
2.35 m
machine width
0.75 m
machine height
2.2 m
max. standard boom
9.9 m
Carrying capacity
0.94 t
at max. reach
9.65 m
Weight
1.325 t
Model series
B

More technical details, like: load of additional jib, max. carrying capacity, at reach, max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
Yes
Electronic load torque limitation
Yes
Endless pivoting
No
High seat
No
Remote control
Yes
Adjustable pivoting
Yes
Articulated boom overstraining
No
