65 4S Effer 65 4S Specifications & Technical Data (2017—2023)

The Effer 65 4S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 1.01 tons and a carrying cap…

The Effer 65 4S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 1.01 tons and a carrying capacity of 0.445 tons. The load torque is 56.31 kNm, and it has a maximum carrying capacity of 2.285 tons. At its maximum reach of 10.65 meters, it can lift heavy loads. The crane has a maximum standard boom length of 10.7 meters. The machine itself has a length of 4.623 meters, a width of 0.615 meters, and a height of 1.99 meters. At a reach of 2.43 meters, it can still perform its functions.

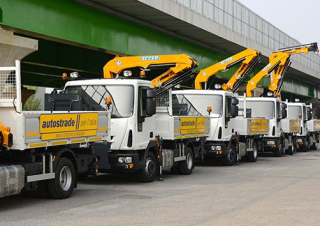

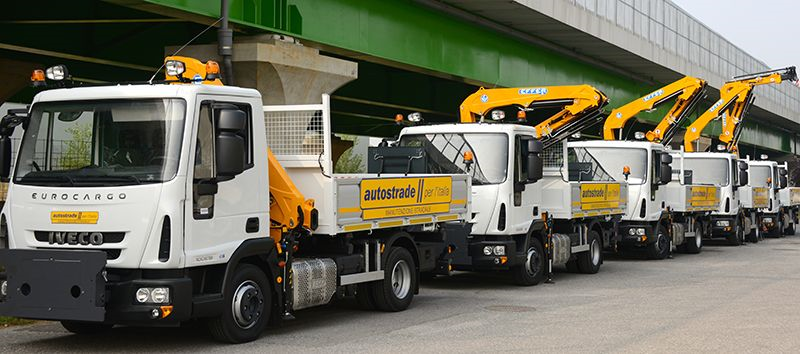

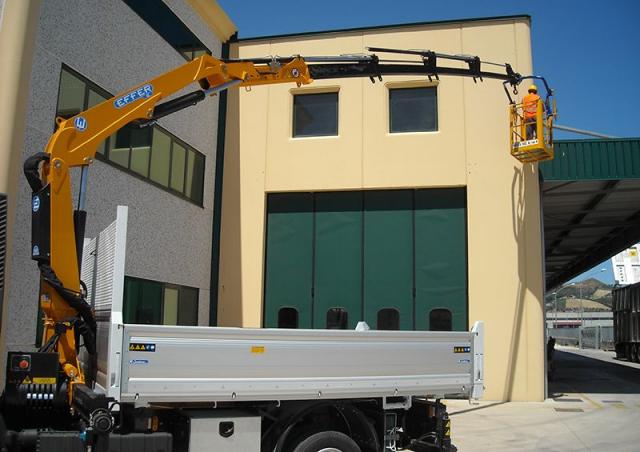

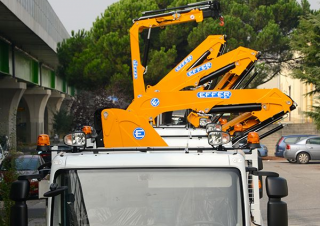

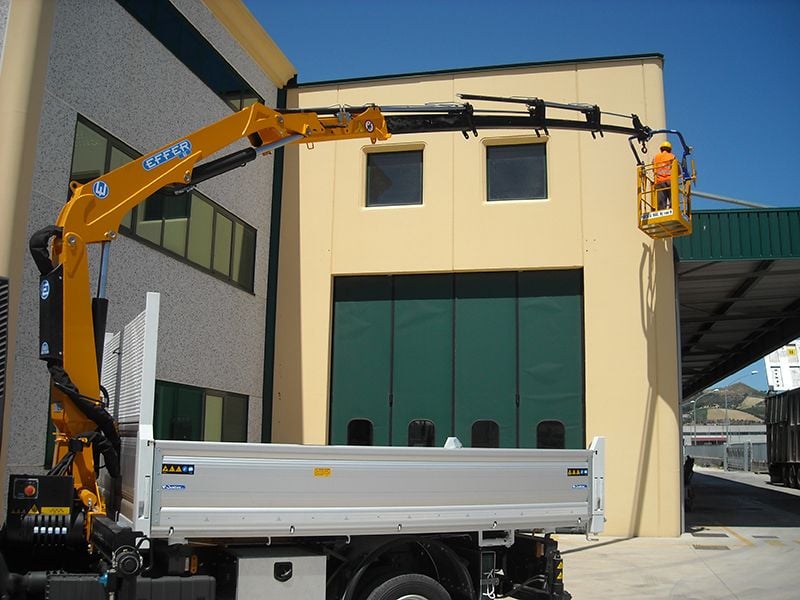

Hydraulic loading cranes Effer 65 4S
Hydraulic loading cranes Effer 65 4S
Hydraulic loading cranes Effer 65 4S
Hydraulic loading cranes Effer 65 4S
Hydraulic loading cranes Effer 65 4S
Hydraulic loading cranes Effer 65 4S

Technical specs - 65 4S Effer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
56.31 kNm
machine length
4.623 m
machine width
0.615 m
machine height
1.99 m
max. standard boom
10.7 m
Carrying capacity
0.445 t
at max. reach
10.65 m
Weight
1.01 t
max. carrying capacity
2.285 t
at reach
2.43 m

More technical details, like: load of additional jib, max. hook height, required power, model series are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No
