505 8S Effer 505 8S Specifications & Technical Data (2017—2023)

The Effer 505 8S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 5.88 tons and a carrying ca…

The Effer 505 8S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 5.88 tons and a carrying capacity of 1.27 tons. The load torque is 404 kNm, and it has a maximum carrying capacity of 13.13 tons. At its maximum reach of 21.59 meters, it can lift loads. The machine's standard boom also extends up to 21.59 meters. The machine itself has a length of 7.83 meters, a width of 1.435 meters, and a height of 2.49 meters. At a reach of 3.01 meters, it can still perform its loading and unloading functions.

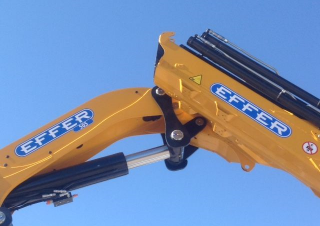

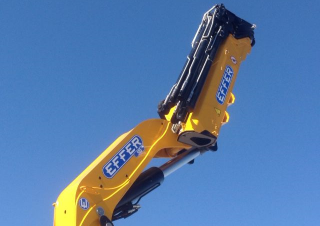

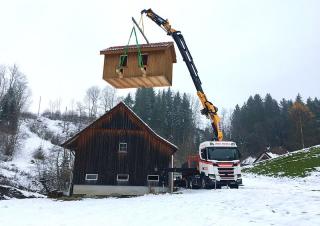

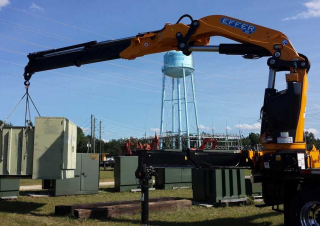

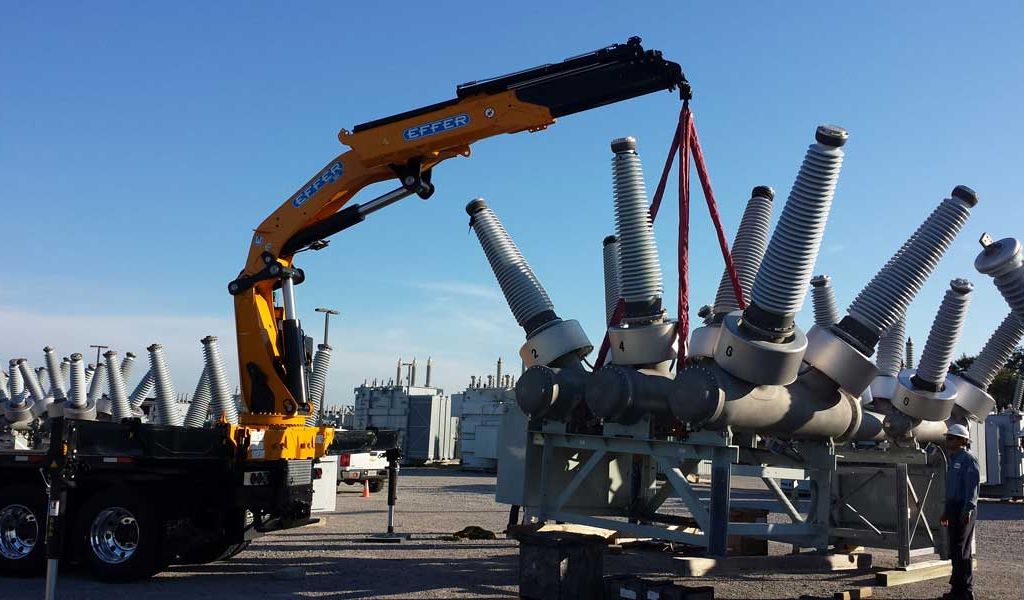

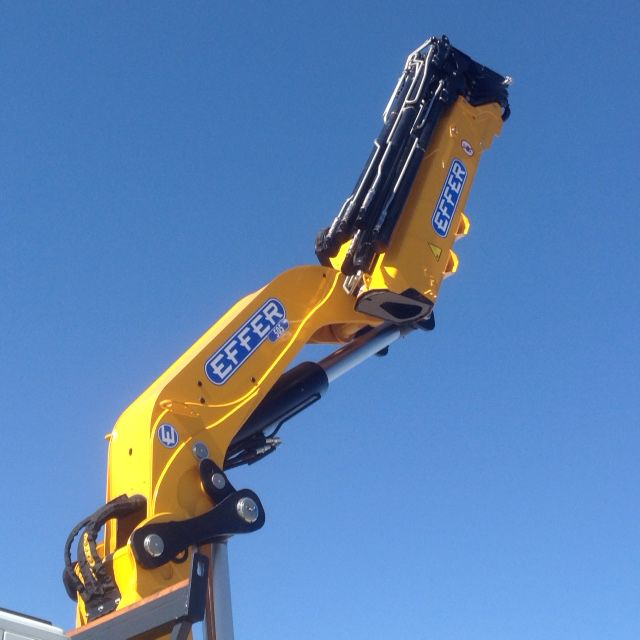

Hydraulic loading cranes Effer 505 8S
Hydraulic loading cranes Effer 505 8S
Hydraulic loading cranes Effer 505 8S
Hydraulic loading cranes Effer 505 8S
Hydraulic loading cranes Effer 505 8S
Hydraulic loading cranes Effer 505 8S
Hydraulic loading cranes Effer 505 8S
Hydraulic loading cranes Effer 505 8S
Hydraulic loading cranes Effer 505 8S
Hydraulic loading cranes Effer 505 8S
Hydraulic loading cranes Effer 505 8S
Hydraulic loading cranes Effer 505 8S

Technical specs - 505 8S Effer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
404 kNm
machine length
7.83 m
machine width
1.435 m
machine height
2.49 m
max. standard boom
21.59 m
Carrying capacity
1.27 t
at max. reach
21.59 m
Weight
5.88 t
max. carrying capacity
13.13 t
at reach
3.01 m

More technical details, like: load of additional jib, max. hook height, required power, model series are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No
