395 5S Effer 395 5S Specifications & Technical Data (2017—2026)

The Effer 395 5S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 4.12 tons and a carrying ca…

The Effer 395 5S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 4.12 tons and a carrying capacity of 2.07 tons. The load torque is 335 kNm, and the maximum carrying capacity is 11.4 tons. At its maximum reach of 14.59 meters, it can handle a load of 0.685 tons with the additional jib. The machine's standard boom reaches up to 14.59 meters. The machine itself has a length of 7.4 meters, a width of 1.17 meters, and a height of 2.42 meters. At its maximum reach of 24.15 meters, it can handle a load at a reach of 2.88 meters.

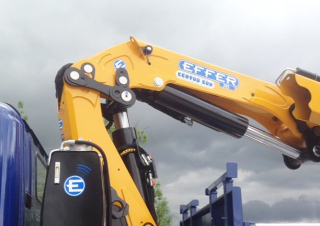

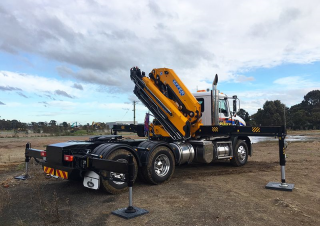

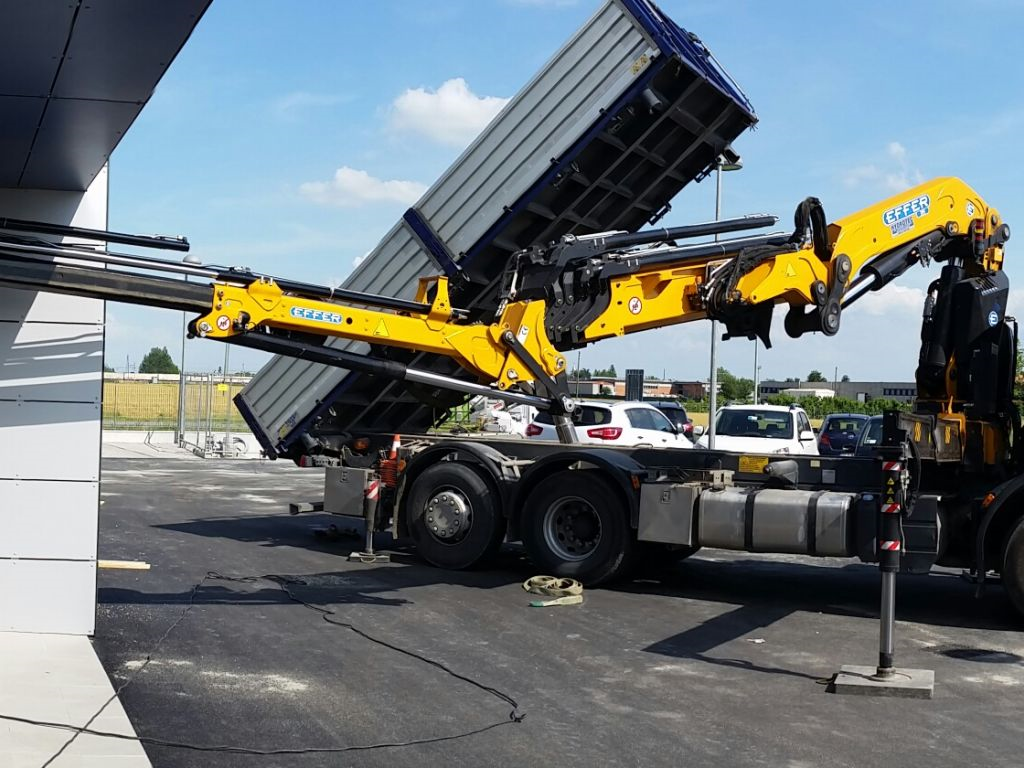

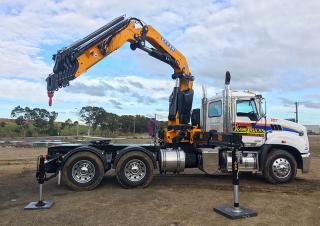

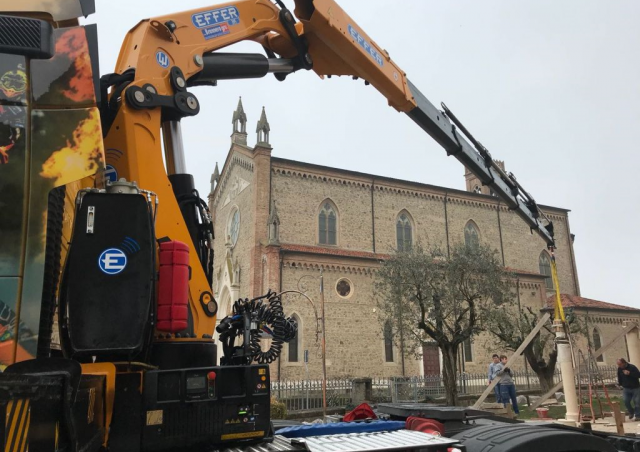

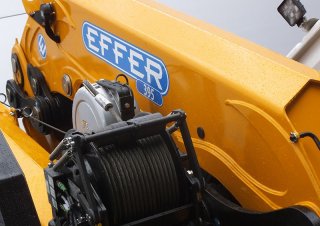

Hydraulic loading cranes Effer 395 5S
Hydraulic loading cranes Effer 395 5S
Hydraulic loading cranes Effer 395 5S
Hydraulic loading cranes Effer 395 5S
Hydraulic loading cranes Effer 395 5S
Hydraulic loading cranes Effer 395 5S
Hydraulic loading cranes Effer 395 5S
Hydraulic loading cranes Effer 395 5S
Hydraulic loading cranes Effer 395 5S
Hydraulic loading cranes Effer 395 5S
Hydraulic loading cranes Effer 395 5S
Hydraulic loading cranes Effer 395 5S

Technical specs - 395 5S Effer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
335 kNm
machine length
7.4 m
machine width
1.17 m
machine height
2.42 m
max. standard boom
14.59 m
Carrying capacity
2.07 t
at max. reach
14.59 m
Load of additional Jib
0.685 t
Weight
4.12 t
max. carrying capacity
11.4 t
at reach
2.88 m
Model series
Jib 4S

More technical details, like: max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No
