2055 9S Effer 2055 9S Specifications & Technical Data (2017—2026)

The Effer 2055 9S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 14.975 tons and a carrying…

The Effer 2055 9S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 14.975 tons and a carrying capacity of 4.85 tons. The load torque is 1280 kNm, and it can reach a maximum carrying capacity of 27 tons. At its maximum reach of 21.79 meters, it can handle a load of 0.775 tons with the additional jib. The machine's standard boom extends up to 21.79 meters. The machine itself has a length of 3.03 meters, a width of 2.55 meters, and a height of 2.7 meters. At its maximum reach of 38.5 meters, it can handle a load at a reach of 4.83 meters.

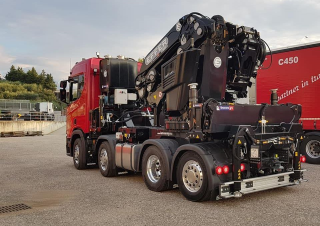

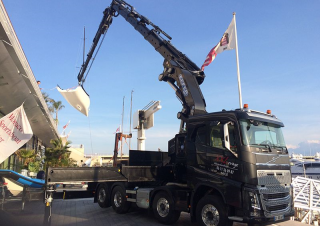

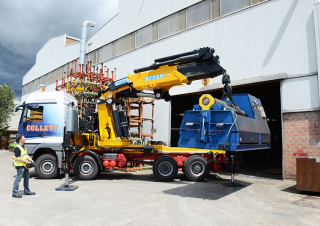

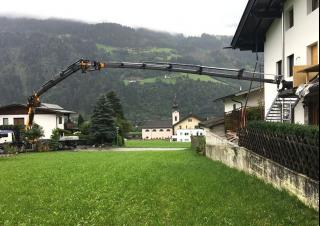

Hydraulic loading cranes Effer 2055 9S
Hydraulic loading cranes Effer 2055 9S
Hydraulic loading cranes Effer 2055 9S
Hydraulic loading cranes Effer 2055 9S
Hydraulic loading cranes Effer 2055 9S
Hydraulic loading cranes Effer 2055 9S
Hydraulic loading cranes Effer 2055 9S
Hydraulic loading cranes Effer 2055 9S
Hydraulic loading cranes Effer 2055 9S
Hydraulic loading cranes Effer 2055 9S

Technical specs - 2055 9S Effer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
1280 kNm
machine length
3.03 m
machine width
2.55 m
machine height
2.7 m
max. standard boom
21.79 m
Carrying capacity
4.85 t
at max. reach
21.79 m
Load of additional Jib
0.775 t
Weight
14.975 t
max. carrying capacity
27 t
at reach
4.83 m
Model series
Big

More technical details, like: max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No
