1405 6S Effer 1405 6S Specifications & Technical Data (2017—2026)

The Effer 1405 6S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 10.68 tons and a carrying …

The Effer 1405 6S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 10.68 tons and a carrying capacity of 6.1 tons. The load torque is 948 kNm, and the maximum carrying capacity is 22.3 tons. At its maximum reach of 15.08 meters, it can handle a load of 1.56 tons with the additional jib. The machine's standard boom extends up to 15.08 meters. The machine itself has a length of 10.102 meters, a width of 2.55 meters, and a height of 2.78 meters. At its maximum reach of 27.48 meters, it can handle a load at a reach of 4.33 meters.

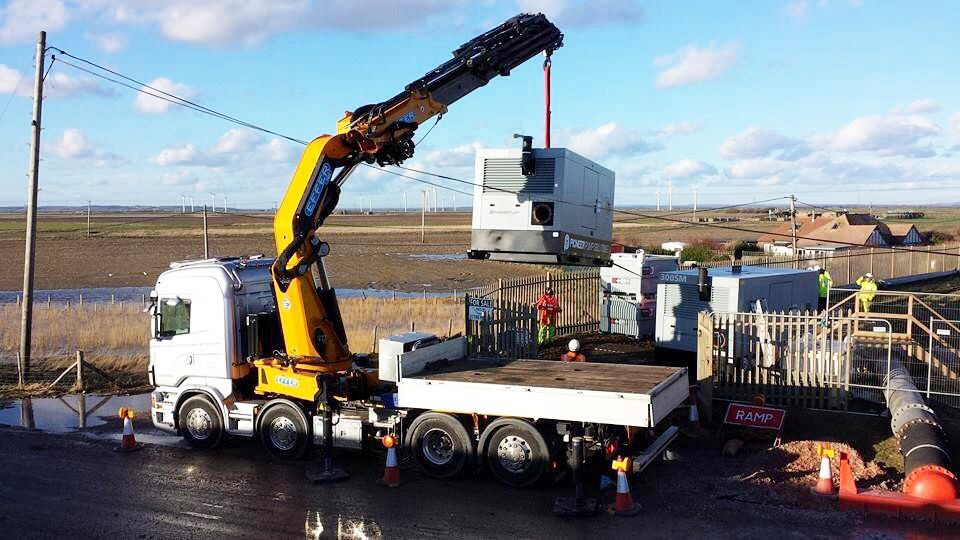

Hydraulic loading cranes Effer 1405 6S

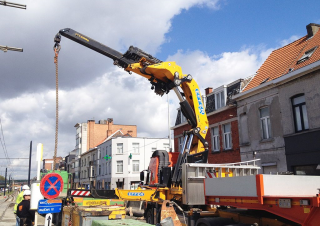

Hydraulic loading cranes Effer 1405 6S

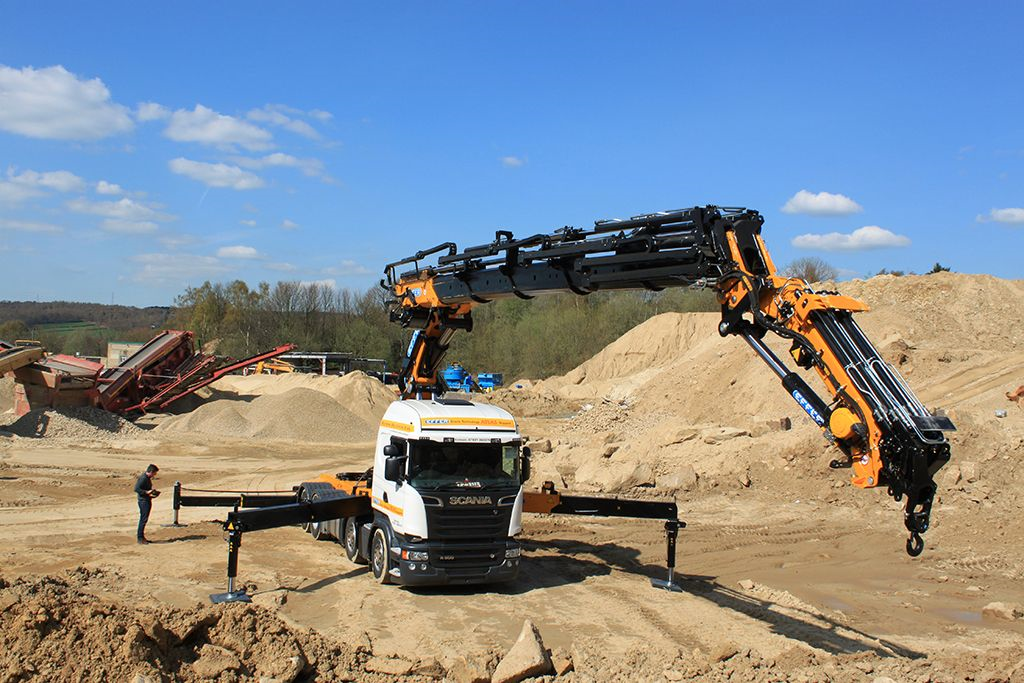

Hydraulic loading cranes Effer 1405 6S

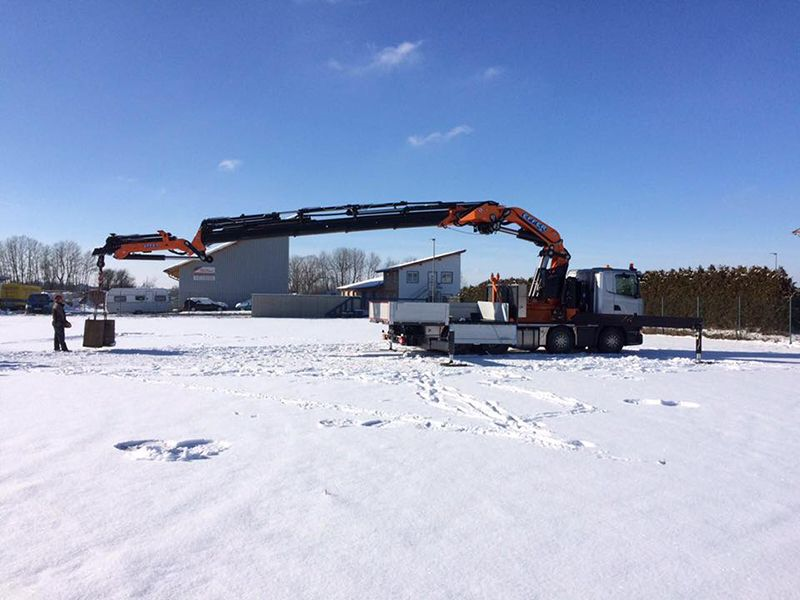

Hydraulic loading cranes Effer 1405 6S

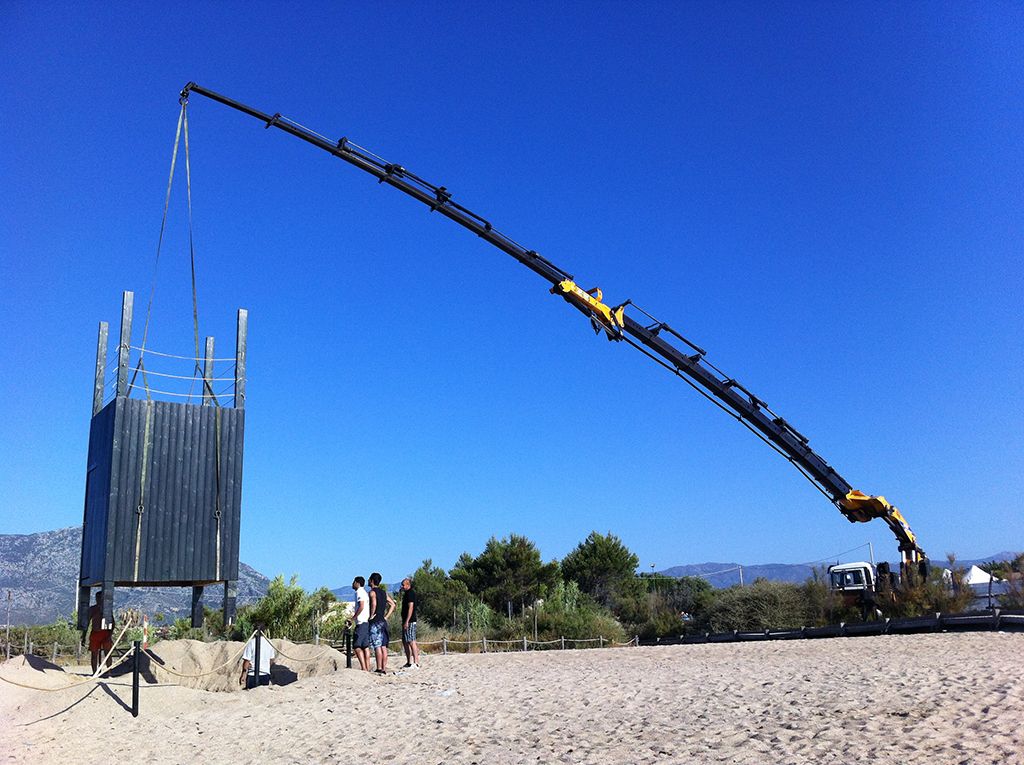

Hydraulic loading cranes Effer 1405 6S
Hydraulic loading cranes Effer 1405 6S
Hydraulic loading cranes Effer 1405 6S
Hydraulic loading cranes Effer 1405 6S
Hydraulic loading cranes Effer 1405 6S
Hydraulic loading cranes Effer 1405 6S

Technical specs - 1405 6S Effer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
948 kNm
machine length
10.102 m
machine width
2.55 m
machine height
2.78 m
max. standard boom
15.08 m
Carrying capacity
6.1 t
at max. reach
15.08 m
Load of additional Jib
1.56 t
Weight
10.68 t
max. carrying capacity
22.3 t
at reach
4.33 m
Model series
Big

More technical details, like: max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No
