1355 9S Effer 1355 9S Specifications & Technical Data (2017—2023)

The Effer 1355 9S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 11.585 tons and a carrying…

The Effer 1355 9S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 11.585 tons and a carrying capacity of 3.35 tons. The load torque is 908.8 kNm, and it has a maximum carrying capacity of 20.07 tons. At its maximum reach of 22.04 meters, it can carry a load of 0.88 tons with the additional jib. The machine's standard boom can reach up to 22.04 meters. The machine itself has a length of 10.102 meters, a width of 2.55 meters, and a height of 2.78 meters. At its maximum reach of 35.01 meters, it can carry a load at a reach of 4.65 meters.

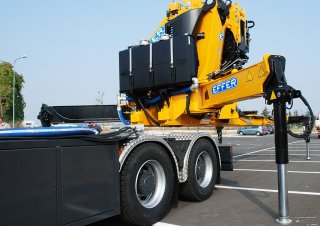

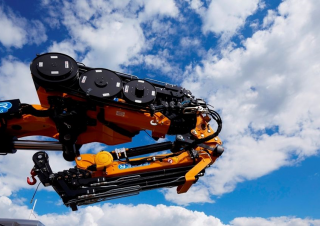

Hydraulic loading cranes Effer 1355 9S

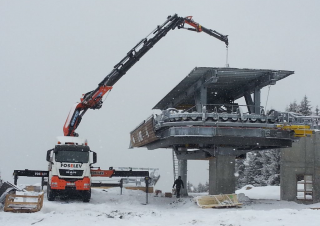

Hydraulic loading cranes Effer 1355 9S

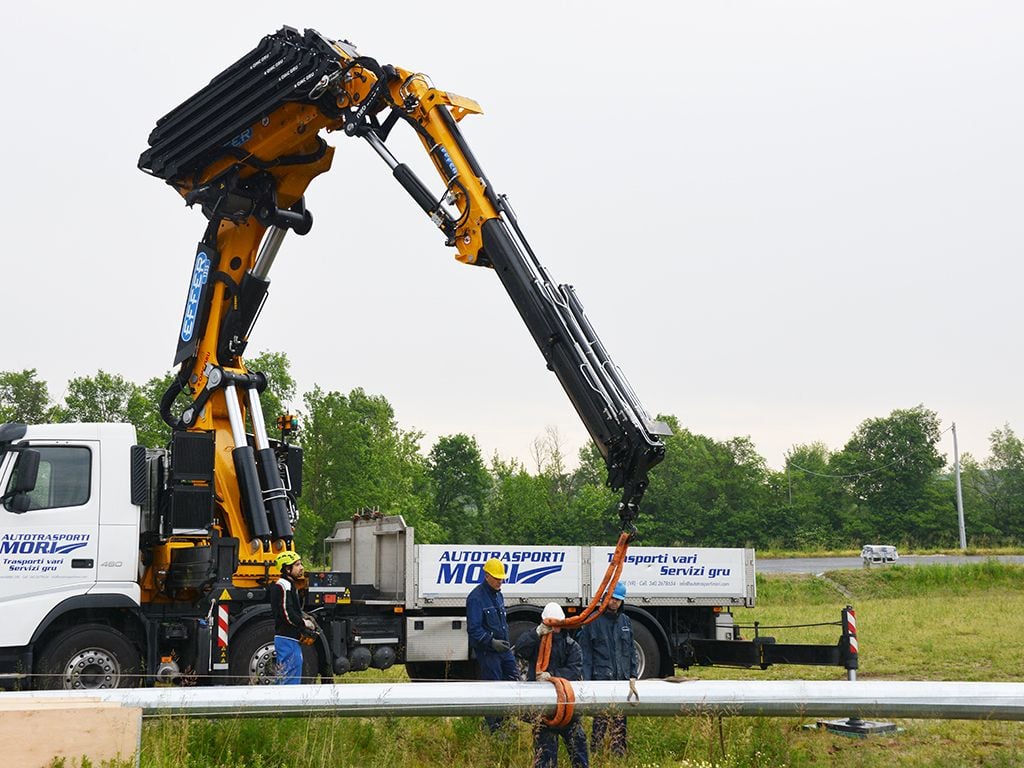

Hydraulic loading cranes Effer 1355 9S

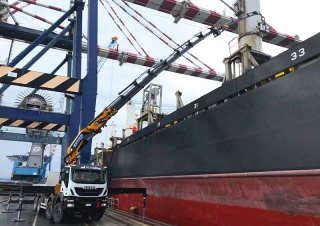

Hydraulic loading cranes Effer 1355 9S

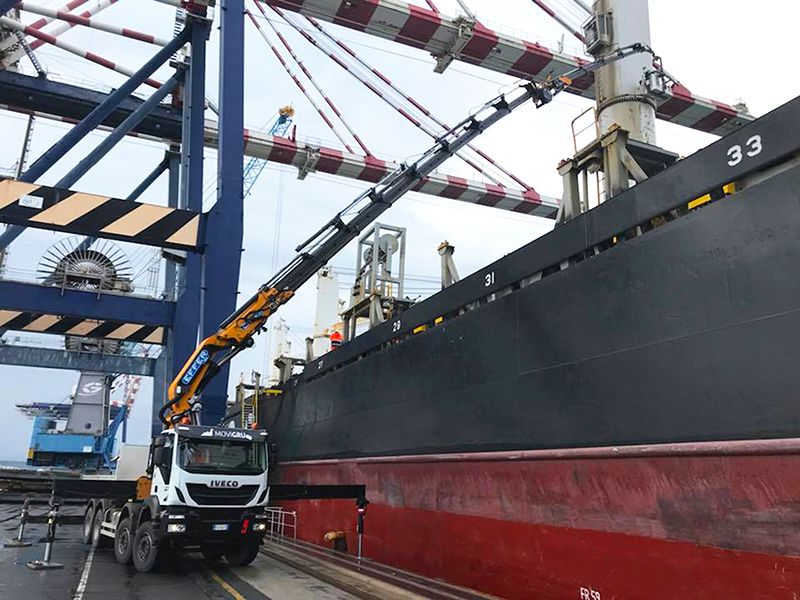

Hydraulic loading cranes Effer 1355 9S

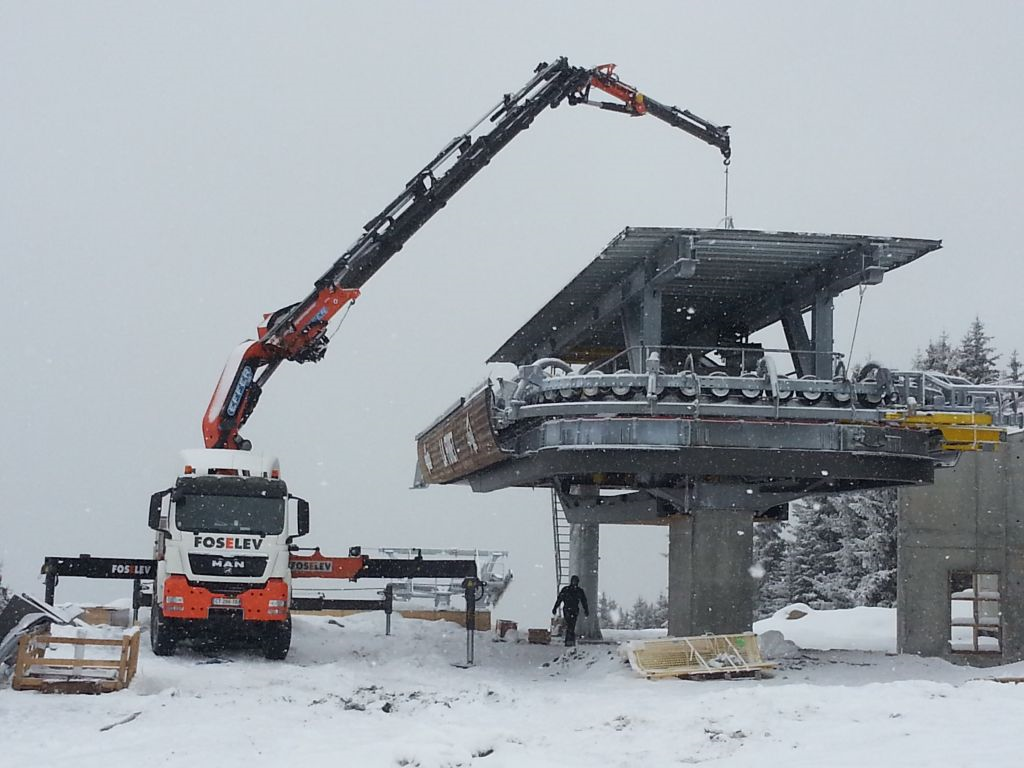

Hydraulic loading cranes Effer 1355 9S

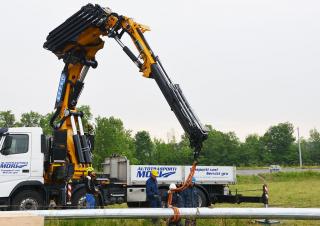

Hydraulic loading cranes Effer 1355 9S

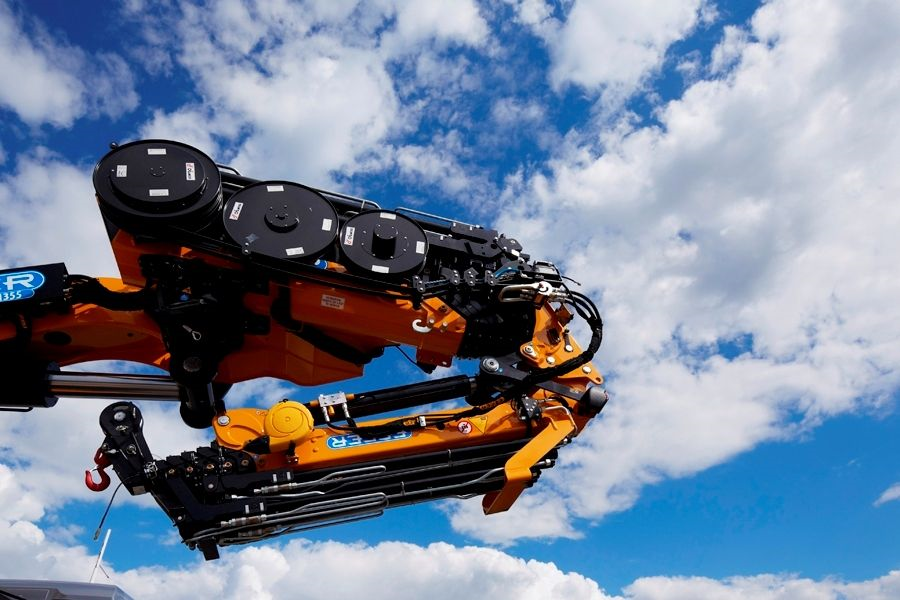

Hydraulic loading cranes Effer 1355 9S
Hydraulic loading cranes Effer 1355 9S
Hydraulic loading cranes Effer 1355 9S

Technical specs - 1355 9S Effer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
908.8 kNm
machine length
10.102 m
machine width
2.55 m
machine height
2.78 m
max. standard boom
22.04 m
Carrying capacity
3.35 t
at max. reach
22.04 m
Load of additional Jib
0.88 t
Weight
11.585 t
max. carrying capacity
20.07 t
at reach
4.65 m
Model series
Big

More technical details, like: max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No
