135 2S Effer 135 2S Specifications & Technical Data (2017—2023)

The Effer 135 2S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 1.655 tons and a carrying c…

The Effer 135 2S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 1.655 tons and a carrying capacity of 1.36 tons. The load torque is 116.1 kNm. The maximum carrying capacity is 3.895 tons. At its maximum reach of 8.39 meters, it can lift loads. The maximum standard boom length is also 8.39 meters. The machine has a length of 4.555 meters, a width of 0.78 meters, and a height of 2.255 meters. At a reach of 2.97 meters, it can still perform lifting operations.

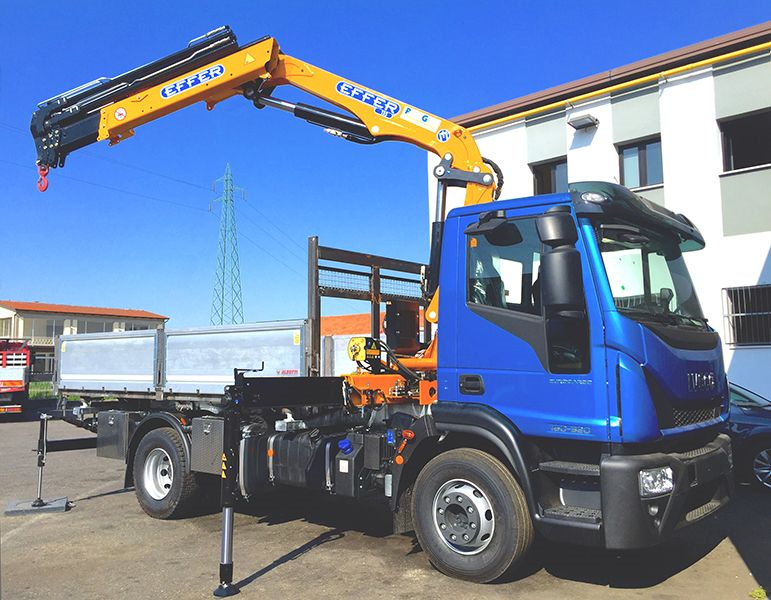

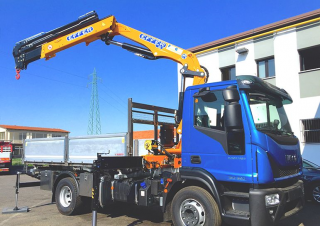

Hydraulic loading cranes Effer 135 2S
Hydraulic loading cranes Effer 135 2S
Hydraulic loading cranes Effer 135 2S
Hydraulic loading cranes Effer 135 2S
Hydraulic loading cranes Effer 135 2S
Hydraulic loading cranes Effer 135 2S
Hydraulic loading cranes Effer 135 2S
Hydraulic loading cranes Effer 135 2S
Hydraulic loading cranes Effer 135 2S
Hydraulic loading cranes Effer 135 2S

Technical specs - 135 2S Effer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
116.1 kNm
machine length
4.555 m
machine width
0.78 m
machine height
2.255 m
max. standard boom
8.39 m
Carrying capacity
1.36 t
at max. reach
8.39 m
Weight
1.655 t
max. carrying capacity
3.895 t
at reach
2.97 m
Model series
Light

More technical details, like: load of additional jib, max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No
