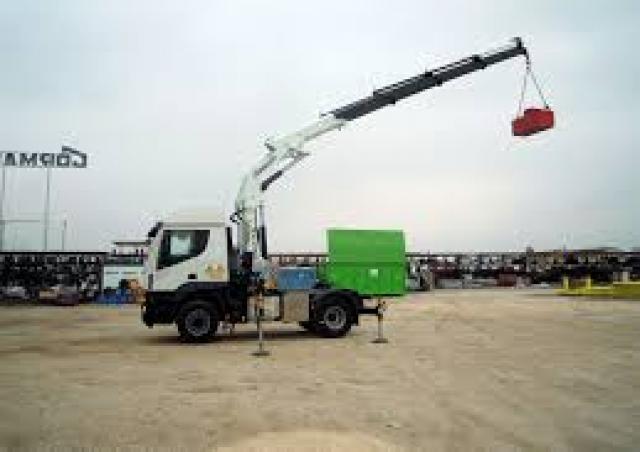

    Lectura specs Truck-mounted loading cranes Hydraulic Loading Cranes Hydraulic Loading Cranes Cormach Cormach 39000 E5F64 HP specifications

    Technical specs - 39000 E5F64 HP Cormach

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Load Torque 37 kNm
    machine length 1.22 m
    machine width 2.55 m
    machine height 2.45 m
    max. standard boom 24.4 m
    Carrying capacity 1.28 t
    at max. reach 14 m
    Load of additional Jib 0.46 t
    at max. reach 24 m
    Weight 4.77 t
    max. carrying capacity 2.43 t
    at reach 8 m
    max. hook height ###
    Required power ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    39000 E5F64 HP Cormach - Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
