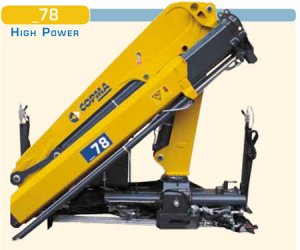

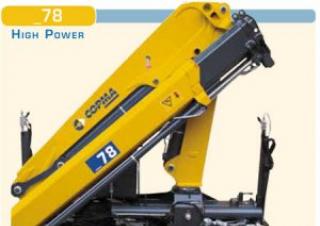

    COPMA 2000 78.1 Specifications & Technical Data (2018-2022)

    Rate this machine now!

    COPMA 2000 is the manufacturer of the hydraulic loading crane model 78.1. Find and download detailed specs and data sheets for thi... Read more

    COPMA 2000 is the manufacturer of the hydraulic loading crane model 78.1. Find and download detailed specs and data sheets for this machine here.

    The 78.1 is categorised in the smallest machine segment in the hydraulic loading crane category. This model is 1.99m long and 0.6m wide. The 78.1 crane is equipped with a standard boom that is 5.3m long. 3.45t is the maximum carrying capacity of this COPMA 2000 78.1 crane, according to its specification. This model is constructed to deliever a load torque of 70.6kNm.

    It does not include Adjustable pivoting, Articulated boom overstraining and Hydr. Brace support. Find detailed specifications and machine details in the original COPMA 2000 78.1 datasheet. You can download it for free in German, Spanish, French, Italian, English and Portuguese on LECTURA Specs.

    To this day, this machine is still being manufactured.

    At present, 585 other hydraulic loading cranes, which range from 19.8kNm up to 2700kNm are produced by COPMA 2000. Of these, 210.3, 150.4 SC and also 110.3 are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest COPMA 2000 78.1 specs data sheet on LECTURA Specs today!

    Technical specs - 78.1 COPMA 2000

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Load Torque 70.6 kNm
    • machine length 1.99 m
    • machine width 0.6 m
    • machine height 1.91 m
    • max. standard boom 5.3 m
    • Carrying capacity 1.31 t
    • at max. reach 5.3 m
    • Weight 0.8 t
    • max. carrying capacity 3.45 t
    • at reach 2 m

    More technical details, like: load of additional jib, max. hook height, required power are available in the full technical specs.

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
