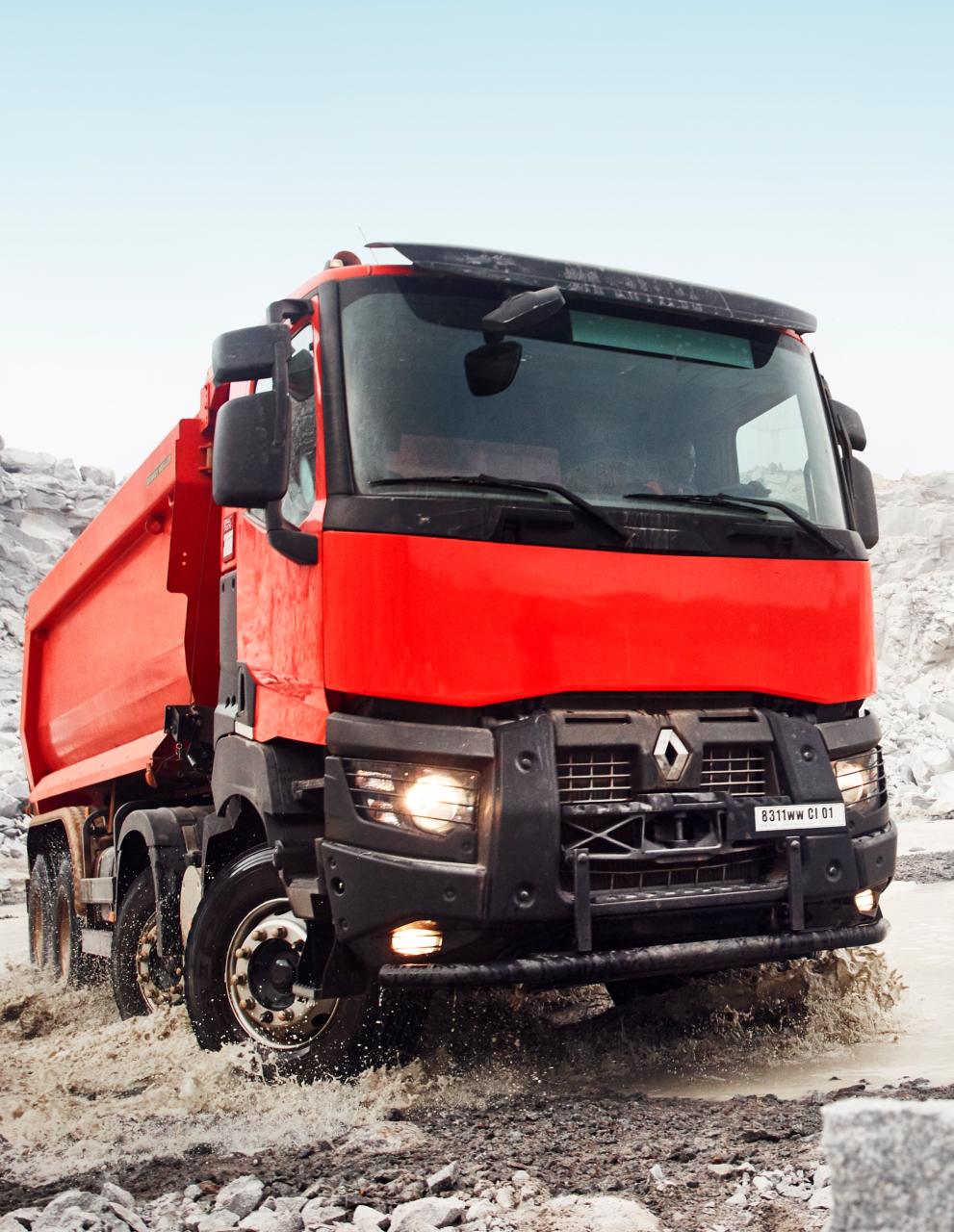

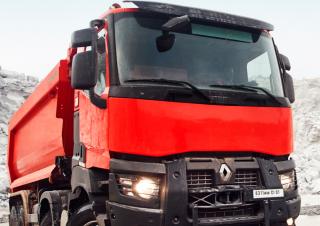

K 520.32 8X4 R MEDIUM E6 Renault (2013 - 2022) lorry truck specs & dimensions

Cab

Cab exterior: Day cab All steel Cab, electro-zinc plated and cataphoretic paint treatment. Cab paint colour: White ekla technical code: 09350 Red badge Black front face finish Four point mechanical cab suspension. 2 heated, remote control rear view mirrors. 2 wide angle rearview mirrors. Kerb view mirror. Rear view mirrors for bodywork up to 2.55 m wide Fold-back front view mirror Air horn Front wing mudflaps Basic accessories: cab colour External sun visor Tinted, laminated windscreen. Tinted rear cab window.

Cab interior

Performance finish Quality roof console, 1 storage compartment with key lock, 1 storage space with net and 4 ISO modules Interior sun blind on windscreen DTCO 4.0 digital chronotachograph Manual roof vent Rubber insulating floor mats Air-suspended driver's seat with fitted seat belt Driver's armrest Safety belt warning. Fixed passenger's seat with seat belt. Cloth seat trim. Removable rear storage compartment, left-hand side Reading lamps on overhead ledge Direct cab lighting Cab lighting time-delay. 2 Coat hooks on rear panel Electrically operated door windows Electronic air conditioning. Cab air filtration, washable filter Handbook and Service pack in English. 2 loudspeakers.

Service brake

Twin-cylinder air compressor 900 l/min, 636 cm³. The braking system features two independent circuits and disc brakes, along with dust protection on the rear brake. Additionally, there is electronic management of air production by the EACU (Electronic Air Control Unit), which includes a dryer cartridge optimized by preventive maintenance. The pneumatic circuit is equipped with a silencer, and there is a two-line trailer braking system with ISO connections. Furthermore, a trailer brake device is located on the rear crossmember, and low-position rear brake cylinders are included.

Retarder

OPTIBRAKE+ (power rating 382 kW at 2300 rpm): combination of the exhaust brake and valve compression braking, coupled to service brake.

Minimum Axle Load Requirements

To maintain the driving comfort (lightness of steering, braking) of vehicles in all load and driving conditions once the vehicle is bodied, the following minimum axle load(s) must be respected: A value corresponding to 43% of the weight of the unladen bodied vehicle kerb weight (with driver, without passenger). The weight of the vehicle is an average indicative weight of its STANDARD build, filled with urea, oil, windscreen wash liquid and coolant at 100%, fuel level at 90% and with driver (75kg).

Gearbox

Optidriver AT 2612F gearbox (14.94 - 1) with automatic clutch. Aluminium housing. Max. torque 2550 Nm, 12 forwards gears and 3 reverse gears. Steering wheel-mounted operating mode selection (automatic/manual) via gear shift selector. Gearbox rear intermediate housing in aluminium. Gearbox oil cooler, oil/water heat exchanger.

Steering

Right hand drive. Hydraulic power steering, variable flow pump. Steering ratio 20:1 - Steering wheel diameter 460 mm. Integral hydraulic power assisted steering (2 independent circuits and 2 pumps). Driving on the left.

Axles

Front hub joints with grease nipples. Load capacity (technical max.) Front axle: 16 t. Equal load distribution on front.

Rear Axles

PMR 2661 drive axle with double reduction. Integral differential lock. Rear loading capacity (technical max.): 26 t. Rear load equally distributed. Drive axle ratio: 3.61.

Steering Wheel Equipment

"Performance" 4-spoke steering wheel adjustable for height and depth, with control for cruise control, OPTIDRIVER control, OPTIBRAKE, and retarder control on the right-hand side. Easy Access steering column adjustable in 2 directions. Removable writing board on steering wheel.

Fuel Tank

Plastic tank positioned between the 2 front axles. 275-litre plastic tank positioned between the two front axles on the left. Sedimenter and prefilter (R60). Bleed control on dashboard.
