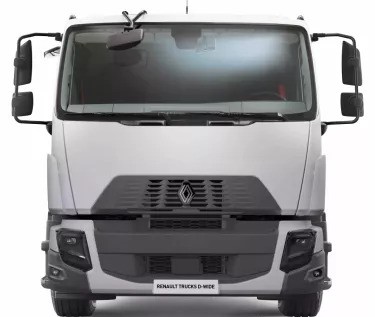

D 25 WIDE 6X2 R LOW 280 E6 Renault (2013 - 2026) lorry truck specs & dimensions

Cab interior

Upper storage cupboard with net cover, 2 storage compartments (50 l) with net covers. Three sun blinds on windscreen. DTCO 4.0 digital chronotachograph. Air-suspended driver's seat with fitted seat belt. Driver's armrest. Red seat belts. Adjustable passenger seat. Blower socket on central console. Normal engine tunnel. Cab lighting time-delay. 2 Coat hooks on rear panel. Electrically operated door windows. Handbook in Czech.

Cab exterior

Day cab. All steel Cab, electro-zinc plated and cataphoretic paint treatment. Cab paint colour: White ekla technical code: 09350. Red badge. Anti-spray deflectors. Four point mechanical cab suspension. Hydraulic cab tilt. 2 heated, remote control rear view mirrors. Rear view mirrors for bodywork up to 2.55 m wide. Fold-back front view mirror. Air horn. Roof-level air intake. Air filter clogging indicator. Spray suppression on front wings. Tinted, laminated windscreen. Without rear window.

Options

OPTIBRAKE: Combination of exhaust brake and valve compression braking. Full electronic management (power: 170 kW at 2800rpm), coupled to service brake Allison Hydraulic retarder (400 kW) Electronic retarder TELMA AD 72-60 (2600 Nm)

Braking

Service brake: Braking system with two independent circuits. All-disc brakes. Electronic management of air production by APM (Air Product Management). Dryer cartridge optimised by preventive maintenance. Twin-cylinder air compressor 1080 l/min, 720 cm³. Air tank mounting rubber fittings. Without rear trailer coupling. EBS: Anti-lock braking system (ABS). Anti-slip regulation (ASR). Drag torque control (Torque control during downshifting). (Disc) brake pad wear compensation.

Options

Power mode inhibited after passing the 'hard spot' of the accelerator pedal. Automatic engine cut-off (3 min). Automatic engine cut-off (5 min). Engine rear PTO: Splined hollow shaft output (DIN 5462). Continuous drive. Rotation: as engine. Max. torque: 600 Nm. Ratio: 1/1. Position 12 o'clock. Engine rear PTO: Output: ISO 7646 plate. Continuous drive.

Instrument panel

12V socket on dashboard, for accessories. Starting inhibitor controlled by transponder key. Folding key. Remote control central door locking. Speed limiter adjustable via steering wheel control (ASL). Cruise Control with steering wheel-mounted controls.

Fuel Tank

Main steel tank. Main fuel tank: 255 litres capacity. D560 profile mounted on right. Fuel heater in filter bowl.

Packs

Pack "Fuel Eco Optiroll" comprising: Cruise Control with Optiroll with steering wheel-mounted controls. Automatic engine cut-off (3 min). Gearshifting strategy optimised for FUEL ECO. Power mode inhibited after passing the "hard spot" of the accelerator pedal. Pack "Protect" comprising: Tyre pressure gauge. Tyre inflation extension piece. Cab volumetric alarm, immobilizer and load protection. Passenger side vision door with lower tinted window. Reversing warning buzzer, including night switch.

Chassis Features

Chassis protective paintwork, mineral grey colour technical code: 03650. Chassis reinforcement at rear drive axle. Standard rear overhang, pre-drilled for bodybuilder. Removable front towing cap, front under-run protection, and rear under-run bar. Closing cross member with pre-drilling for towing yoke. Lowered wing position, recommended for motorway use. Two wheel chocks with bracket and side exhaust.

Bumper - Steps and Lighting

3-part plastic bumper. Access to driving position by 2 stepwell steps, step lighting, electrical headlamp levelling control, and running lights.

Bodywork

Body mounting brackets front and rear. Bodybuilder access through bulkhead. Orange LED side marker lights with reflector and provision for bodybuilder electronic box interface.
