D 14 HIGH 4X2 R 240 E6 Renault (2013 - 2026) lorry truck specs & dimensions

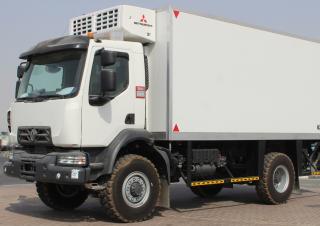

The Renault D 14 HIGH 4X2 R 240 E6 is a rigid chassis truck manufactured by Renault since 2013. It has an engine power of 176 kW a…
The Renault D 14 HIGH 4X2 R 240 E6 is a rigid chassis truck manufactured by Renault since 2013. It has an engine power of 176 kW and a gross combination weight of 14 tons. The truck also has a gross vehicle weight of 14 tons and a wheelbase of 4700 mm.
Day cab. All steel Cab, electro-zinc plated and cataphoretic paint treatment. Cab paint colour: White ekla. technical code: 09350. Red badge. Anti-spray deflectors. Cab suspension with rubber pads on the front and mechanical on the rear. Hydraulic cab tilt. 2 heated, remote control rear view mirrors. Rear view mirrors for bodywork from 2500 to 2600 mm wide. Fold-back front view mirror. Under floor air intake. Air filter clogging indicator. Spray suppression on front wings. Provision for mounting external sun visor. Tinted, laminated windscreen. Without rear window.
Cab interior
Upper storage cupboard with net cover, 2 storage compartments (50 l) with net covers. Three sun blinds on windscreen. DTCO 4.0 digital chronotachograph. Air-suspended driver's seat with fitted seat belt. Driver's armrest. Red seat belts. Adjustable passenger seat. Cab lighting time-delay. 2 Coat hooks on rear panel. Electrically operated door windows. Handbook in Czech.
Engine
Options
PTO located on the right side of auto gearbox facing the rear. DIN 5462 spline output for pump mounting. Rotation same as engine. Torque 240 Nm. Ratio: 1.07. Power take-off S88 C. Output: DIN 5462. Direction of rotation: as engine.
Dimensions / Weight / Chassis
Minimum Front Axle Load
To maintain the driving comfort (lightness of steering, braking) of vehicles in all load and driving conditions once the vehicle is bodied, the following minimum front axle load(s) must be respected: 2500 kg. The weight of the vehicle is an average indicative weight of its STANDARD build, filled with urea, oil, windscreen wash liquid and coolant at 100%, fuel level at 90% and with driver (75kg).
Tyres / Axle
Chassis
Chassis protective paintwork, mineral grey colour. Standard rear overhang, pre-drilled for bodybuilder. Reinforced removable front towing cap. Front under-run protection. Rear underrun bar with integral lights, fitted on the chassis. Closing cross member. Front wing extensions. One wheel chock with bracket mounted on chassis. Lateral exhaust on left side.
Suspension
Front suspension. Reinforced front parabolic leaf springs. Stabiliser bar. Rear suspension. Reinforced rear asymmetrical leaf springs. Telescopic shock absorbers. Stabiliser bar.
