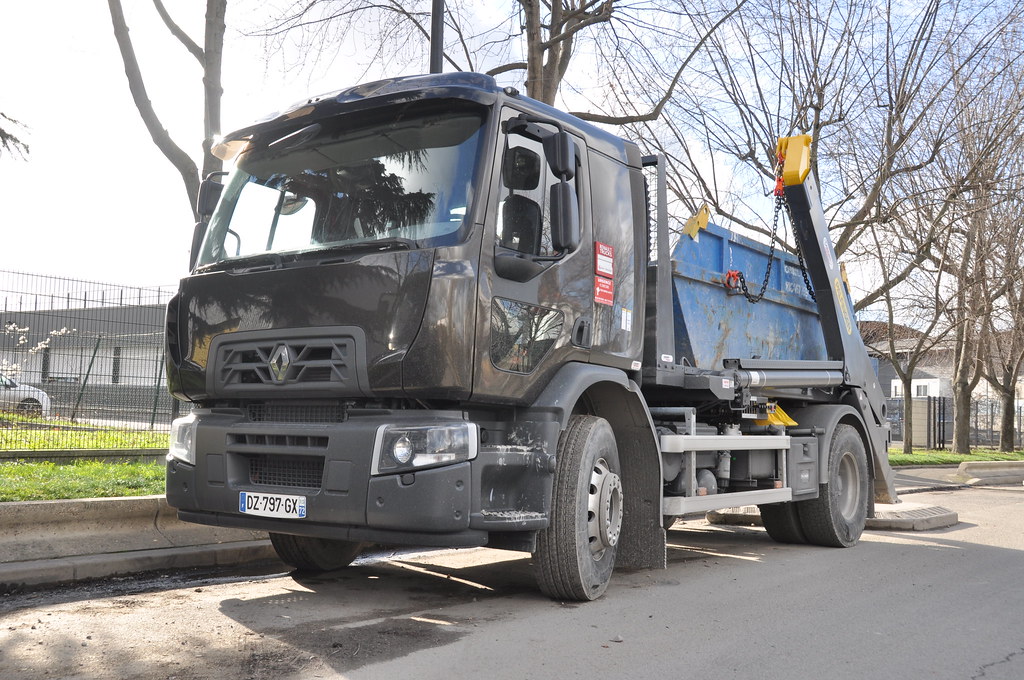

C CAB2300 320 6X2 R E6 Renault (2013 - 2026) lorry truck specs & dimensions

Cab exterior

Global cab All steel Cab, electro-zinc plated and cataphoretic paint treatment. Cab paint colour: White ekla technical code: 09350 Red badge Anti-spray deflectors Four point mechanical cab suspension. Hydraulic cab tilt. 2 heated, remote control rear view mirrors. Rear view mirrors for bodywork up to 2.55 m wide Fold-back front view mirror Air horn Roof-level air intake. Air filter clogging indicator Spray suppression on front wings External sun visor Tinted, laminated windscreen. Tinted rear cab window

Cab interior

Upper storage cupboard with net cover, 2 storage compartments (50 l) with net covers Three sun blinds on windscreen DTCO 4.0 digital chronotachograph Air-suspended driver's seat with fitted seat belt. Driver's armrest Red seat belts Adjustable passenger seat Blower socket on central console Removable rear storage compartment, right-hand side Raised engine tunnel. Cab lighting time-delay. Clothes rail Electrically operated door windows Handbook in Czech.

Options

Power mode inhibited after passing the 'hard spot' of the accelerator pedal Automatic engine cut-off (3 min) Automatic engine cut-off (5 min) Engine rear PTO: Splined hollow shaft output (DIN 5462). Continuous drive Rotation: as engine Max. torque: 600 Nm Ratio: 1/1 Position 12 o'clock Engine rear PTO: OPTIBRAKE: Combination of exhaust brake and valve compression braking. Full electronic management (power: 170 kW at 2800rpm), coupled to service brake Allison Hydraulic retarder (400 kW)

Service

Bodywork bracket mounting holes. Bodybuilder suspensions control includes inhibition of suspension height regulation, platform kneeling, and height regulation. Additionally, there is an electrical provision for the crane.

Chassis

Chassis protective paintwork, mineral grey colour technical code: 03650. Chassis reinforcement at rear drive axle. Standard rear overhang, pre-drilled for bodybuilder. Removable front towing cap, front under-run protection, and rear under-run bar. Closing cross member with pre-drilling for towing yoke. Engine air filter with easily removable cartridges. Two wheel chocks with bracket and side exhaust.

Bodywork

Body mounting brackets front and rear. Bodybuilder access through bulkhead. Orange LED side marker lights with reflector and provision for bodybuilder electronic box interface.
