300 716 4x2 Hino (2019 - 2026) lorry truck specs & dimensions

The Hino 300 716 4x2 is a rigid chassis truck manufactured by Hino since 2019. It is equipped with an engine power of 110 kW and h…

The Hino 300 716 4x2 is a rigid chassis truck manufactured by Hino since 2019. It is equipped with an engine power of 110 kW and has a gross combination weight of 10 tons. The truck has a gross vehicle weight of 6.5 tons and a wheelbase of 3870 mm.

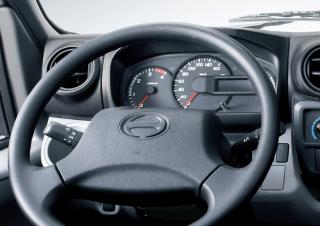

Trucks Rigid Chassis Hino 300 716 4x2
Trucks Rigid Chassis Hino 300 716 4x2
Trucks Rigid Chassis Hino 300 716 4x2
Trucks Rigid Chassis Hino 300 716 4x2
Trucks Rigid Chassis Hino 300 716 4x2
Trucks Rigid Chassis Hino 300 716 4x2

Technical specs - 300 716 4x2 Hino

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Gross vehicle weight
6.5 t
Gross combination weight
10 t
Drive type
4x2
Engine power
110 kW
Emission standard
EURO V
Front suspension
B
Rear suspension
B
Wheelbase
3870 mm
Cab
Standart-cab
Transmission type
A
Model series
300

Download datasheets (PDF)

Hino 300 716 4x2 overview

Cabin

Cab exterior

Type Forward control, all steel welded construction, torsion-bar tilt mechanism, fully trimmed. Windscreen wipers are electric, featuring dual wipers with intermittent and 2-speed options. Outside rear mirrors are remote control and heated. The radiator grille is painted the same colour as the cabin. Headlamp options include HID with washer and fog lamp (Hybrid), as well as halogen and fog lamp (Auto & Manual).


Engine

Steering

Type: Telescopic and tilt steering column with locking device. Recirculating ball with integral power steering. Steering angle: Inside: 50°, Outside: 36°.


Tyres / Axle

Chassis frame

Wheelbase Medium Long Type Ladder-shaped channel section side rails Chassis width at rear 750mm Main section in mm (depth x flange x thickness) 192.8 x 65 x 5.9mm Tensile strength 540N/mm² Tow hook (front & rear) Equipped Front bumper Painted in cab colour
