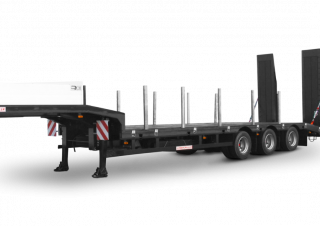

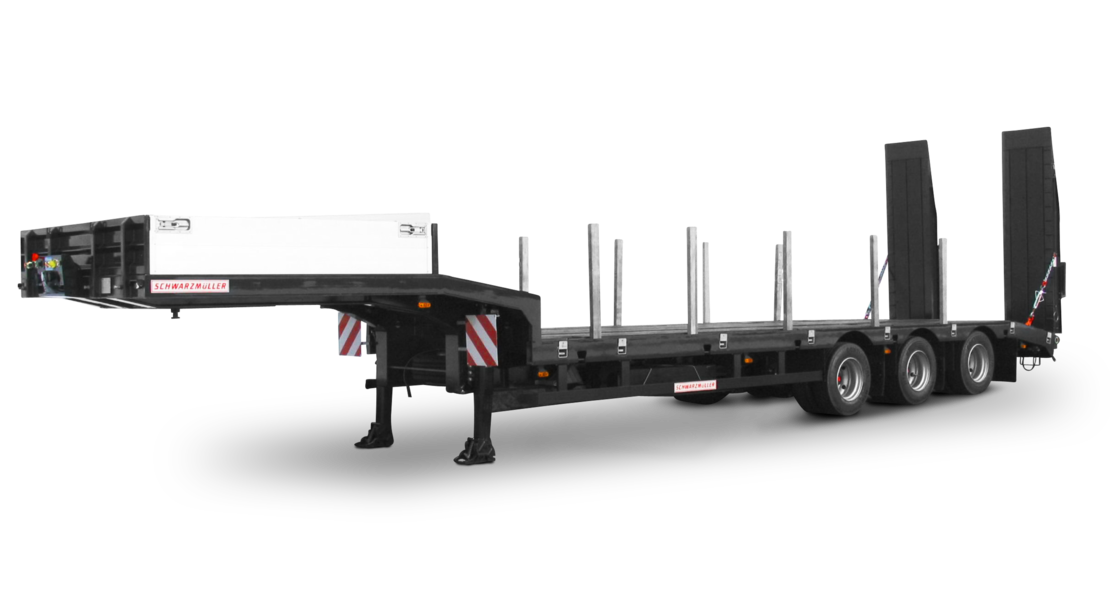

3-axle low loader semitrailer with offset platform - reinforced Schwarzmüller (2019 - 2026) Trailer Specs & Dimensions

max. total weight: 40000kg – Net weight: 9100kg – Net load: 30900kg – axle load: 30t – loading height: 950mm – Fifth-wheel load: 1…

max. total weight: 40000kg – Net weight: 9100kg – Net load: 30900kg – axle load: 30t – loading height: 950mm – Fifth-wheel load: 18t

All specifications of Schwarzmüller 3-axle low loader semitrailer with offset platform - reinforced trailer - engine and emission standard, cab type, dimensions, weight, drive type - detailed Schwarzmüller 3-axle low loader semitrailer with offset platform - reinforced trailer specs.

Trailers Lowbed & Step Deck Semi Trailers Schwarzmüller 3-axle low loader semitrailer with offset platform - reinforced

Technical specs - 3-axle low loader semitrailer with offset platform - reinforced Schwarzmüller

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. total weight
40000 kg
Net weight
9100 kg
Net load
30900 kg
axle load
30 t
loading height
950 mm
Fifth-wheel load
18 t
Front offset platform
3500 mm
Total length
12900 mm
Total width
3000 mm
Number of axles
3
Standard tyres
12x245/70 R17.5 143J

More technical details, like: flat platform load surface, model series are available in the full technical specs.
