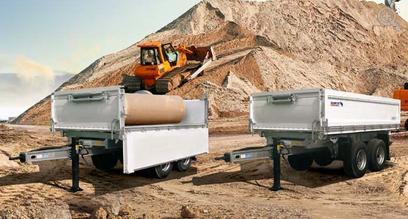

Z.KI Schmitz Cargobull (2019 - 2026) Trailer Specs & Dimensions

max. total weight: 18000kg – Net weight: 4500kg – Net load: 13500kg – axle load: 9t – Loading capacity: 10.3-12.1m³ – Total length…

max. total weight: 18000kg – Net weight: 4500kg – Net load: 13500kg – axle load: 9t – Loading capacity: 10.3-12.1m³ – Total length: 7055mm

All specifications of Schmitz Cargobull Z.KI trailer - engine and emission standard, cab type, dimensions, weight, drive type - detailed Schmitz Cargobull Z.KI trailer specs.

Trailers Dump Trailers / Tipper Trailers Schmitz Cargobull Z.KI

Technical specs - Z.KI Schmitz Cargobull

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. total weight
18000 kg
Net weight
4500 kg
Net load
13500 kg
axle load
9 t
Loading capacity
10.3-12.1 m³
Total length
7055 mm
Total width
2530 mm
Total height
2630-2830 mm
Number of axles
2
Standard tyres
385/65 R 22.5

More technical details, like: loading height, model series are available in the full technical specs.
