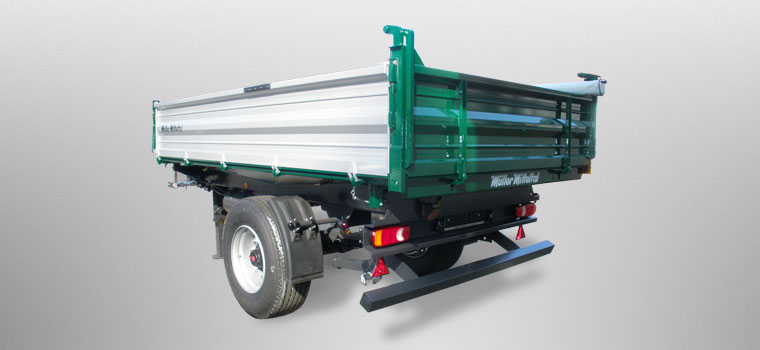

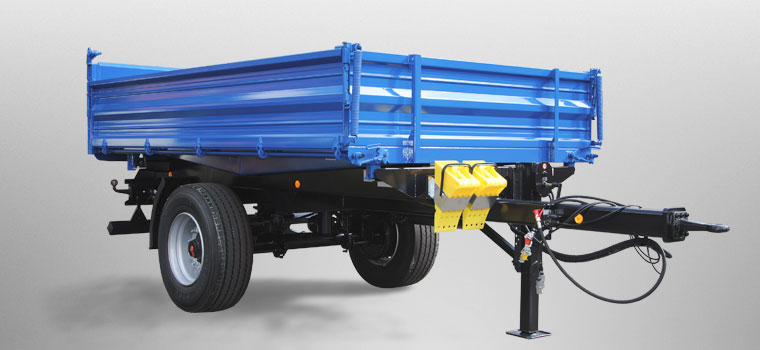

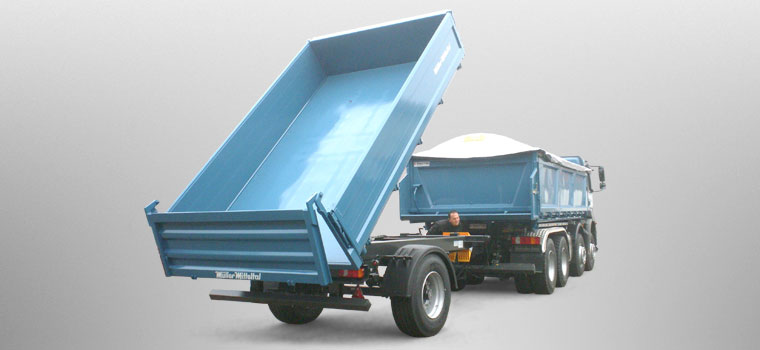

Müller Mitteltal EK96 (2019 - 2023) Trailer Specs

Rate this machine now!

max. total weight: 9600kg – Net weight: 2500kg – Net load: 7100kg – loading height: 1330mm – Total length: 5900mm – Total width: 2... Read more

max. total weight: 9600kg – Net weight: 2500kg – Net load: 7100kg – loading height: 1330mm – Total length: 5900mm – Total width: 2550mm

All specifications of Müller Mitteltal EK96 trailer - engine and emission standard, cab type, dimensions, weight, drive type - detailed Müller Mitteltal EK96 trailer specs.

Read less

Technical specs - EK96 Müller Mitteltal

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • max. total weight 9600 kg
  • Net weight 2500 kg
  • Net load 7100 kg
  • loading height 1330 mm
  • Total length 5900 mm
  • Total width 2550 mm
  • Total height 1930 mm
  • Number of axles 1
  • Standard tyres 385/65 R22.5
  • Model series EK

More technical details, like: axle load, loading capacity are available in the full technical specs.
