It is lightweight so that it can transport more heavy machinery. We have protected it against corrosion so that it will last for a long time. Your construction machines can drive safely up the sturdy and durable ramps with a particularly flat drive-up angle onto the cargo bed. You can adapt the HS tandem flatbed trailer to different drawbar heights.
Tandem Flatbed Trailer HS from 8.9 t
The big brother of the HS tandem flatbed trailer above 5 t allows for an even higher load capacity. Both trailers offer the same functionality. The standard lashing options integrated in the platform floor guarantee optimal load securing.
Tandem Wheels-In Trailer HBT BE from 10 t
Do you sometimes need a trailer for pallets, then for construction machinery and then for building materials? The HBT BE tandem flatbed trailer provides you with the correct version for all purposes. With its retracting support legs and the optional stowing drive-up ramps, it supports you in all working and machine transport applications.
Accessories (optional)
Spare wheel and bracket Duomatic coupling Spring-type cylinder Towing ring Ø 50 mm Drawbar for various lengths and coupling heights Swinging towing eye with Ø 40/50 mm towing ring Lighting installation 12 V Socket, 7-way at rear Reversing light (additional) Work lamp Flashing beacon with 7-pin socket LED rotating warning light Screen floor Studded steel plate, galvanised Support frame on front wall Steel plate toolbox Night parking warning plate Rear marking boards Insertable rear wall Loading ramps with gratings or softwood planks Load capacity increase to 11.9 t (only HS 10) Wide drive-on ramps Other accessories on request Platform gates 900 or 1000 mm height Platform gates foldable with spring-lifter Platform gates made of aluminium, 800, 900 or 1000 mm height, tailgate Hardox® 450 Platform thickness 5 or 6 mm, HB450 TIM: Trailer-Information-Module (information display) 1. axle as lifting axle SAF disc brakes BPW drum- or disc brakes Roll-up tarpaulin Automatic lowering function while tipping Bordmatic Other accessories on request
Height-adjustable drawbar
Height-adjustable drawbar. Model with chamfered cargo bed and platform floor made of 40 mm thick softwood planks. Loading ramps with gratings. 6 t lashing point.
Tipper

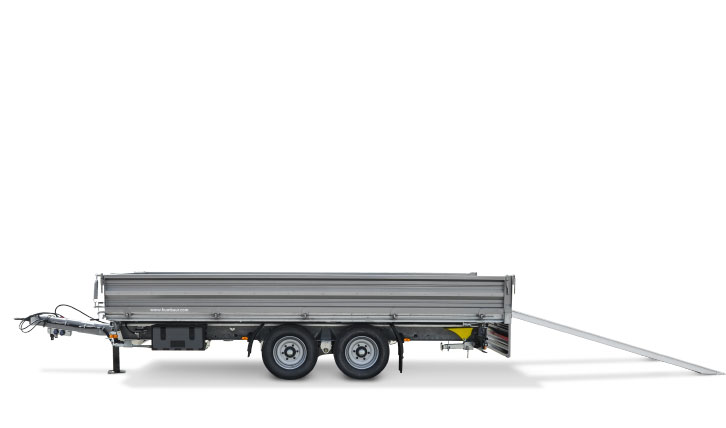

Tandem Three-Way Tipper HTK from 5 t
The three-way tippers that deserve your trust: Their unique tipping platform withstands extremely high loads as well as point loads. The retracting support legs and the optional aluminium drive-up ramps, which can be stowed in a compartment integrated in the chassis, mean that the trailer can be deployed virtually unrestrictedly in the construction industry.
Tandem Three-Way Tipper HTK from 10 t
The HTK with a gross weight above 10 t is a variable all-rounder. It is particularly impressive with its five-stage hard-chromed cylinder and hydraulic motorised three-way tipper. It has a sturdy, welded, hot-dip galvanised frame for optimum stability and safety. The platform floor is made from 4 mm fine-grained steel. The 500 mm high hinged drop sides with central lock can be folded down at the sides and rear and removed.
Tandem Three-Way Tipper HTK from 13 t
The 13.6 t permitted gross weight may allow you to transport the extra bit of load above 13 t that you need urgently. Particularly suitable for towing vehicles up to 7.49 t. Despite its high gross weight, you can use it with a 40 mm towing ring. These models primarily impress with their generously dimensioned chassis and tipping bridge frame and achieve the highest load-carrying capacity and durability.
Tandem Three-Way Tipper HTK from 18 t
The largest and most economical of the three-way tippers has a conveniently low load height for its class and has 600 mm high drop sides giving a large load volume. The extra-wide tyres ensure low ground pressure and mean that you will get through, even on bad roads and tracks.
Tandem Three-Way Tipper HTK with 19 t
With a permissible gross weight of 19 tonnes, the HTK 19 is not only ideal for bulk materials such as earth, sand, gravel, and concrete, but also construction materials such as bricks and concrete blocks. The design of the tandem three-way tipper is based on the width of a pallet and therefore guarantees the safe transportation of palletised goods. With optimised drive and tip qualities and a relatively low tare weight, the tipper offers a reliable helping hand for heavy-duty work.
Storage Compartment Features
Storage compartment for 2 optional aluminium drive-up ramps in the chassis frame. Serially fitted stroke limiter and safety ropes.
